Page 1: Operating Instructions

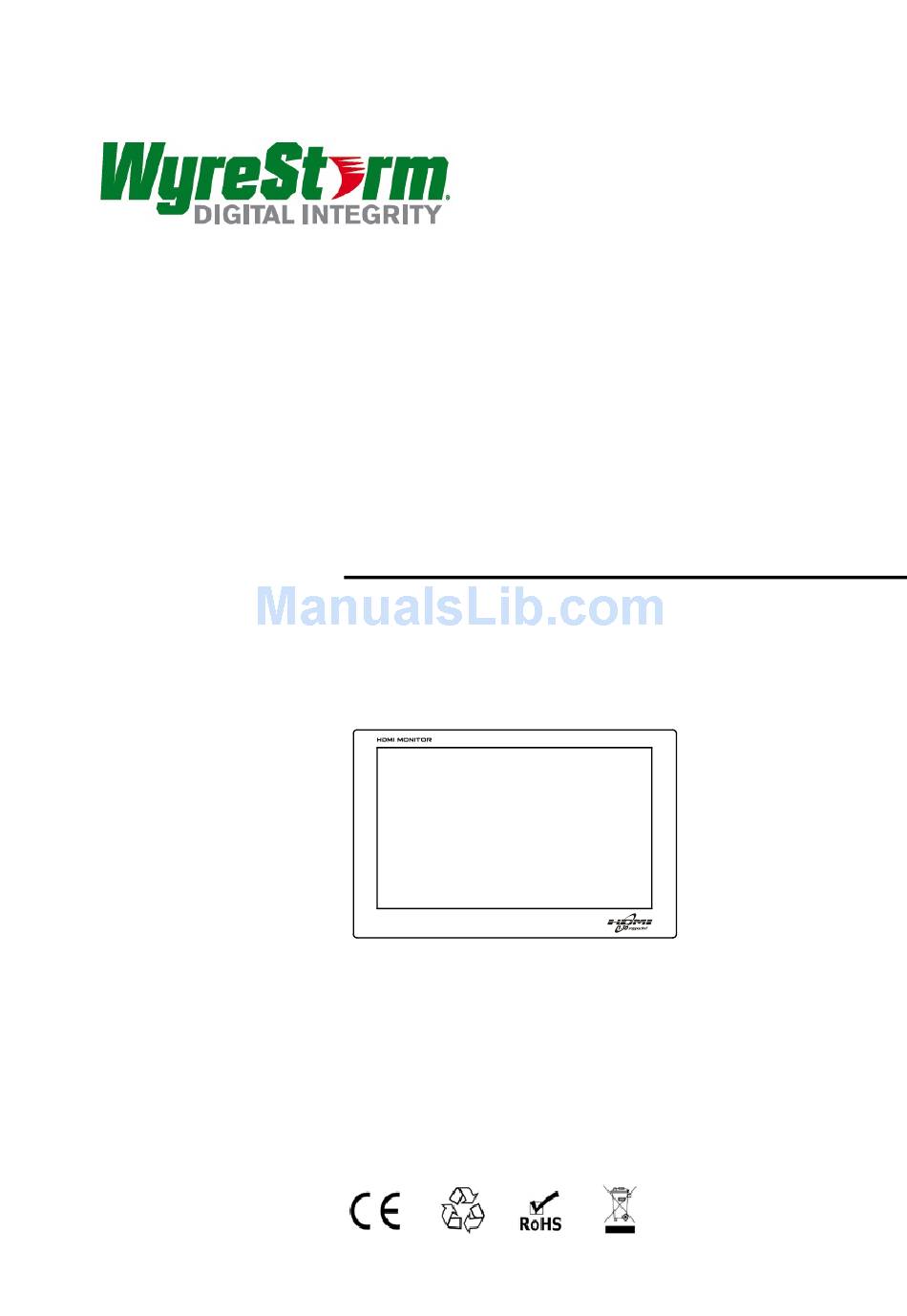

Model No TTMONITOR Operating Instructions Thank you for purchasing this Wyrestorm product. Please be sure to read this instruction manual carefully before using our product. -
Page 3: Table Of Contents
Contents HDMI Monitor ................... 1 Product Overview ..................1 Features ....................1 Precautions ....................3 Special Notes on LCD Monitors ............... 4 Package Contents ..................4 Connection & panel key description ............5 Note......................8 Panel Descriptions ................... 9 Maintenance ................... 10 Product Service .................. -
Page 5: Dear Customer
Panel button control or remote control with IR extension cable and remote. Portable design. Notice Wyrestorm reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Page 1... - Page 6 Warning To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only. To reduce the risk of fire, electric shock or product damage: 1.
-
Page 7: Precautions
Precautions ■ Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. Do not place the monitor on an unstable cart, stand, or table. If the monitor ... -
Page 8: Special Notes On Lcd Monitors
When the screen becomes black or flashing, or cannot illuminate any more, contact your dealer or service center to replace parts. Don’t repair the screen by yourself! Package Contents ■ ① Main unit P/N Wyrestorm TTMONITOR ② Operating instructions ③ POWER SUPPLY (5VDC 3A). ④ Remote. ⑤ IR extension cable. -
Page 9: Connection & Panel Key Description
Connection & panel key description ■ 1. HDMI input port 2. 5V DC input 3. Analog L/R audio output socket 4. IR extension cable input socket 5. Menu button 6. Information activate button or OK button for menu item selection 7. - Page 10 HDMI 1.3 1080P video 6 channel audio EDID1.3 1080P Select EDID of the HDMI monitor to HDMI 1.3 1080P video 8 channel audio EDID1.2 1080P Select EDID of the HDMI monitor to HDMI 1.2 1080P video 2 channel audio EDID1.3 1080I Select EDID of the HDMI monitor to HDMI1.3 1080I video 2 channel audio EDID1.3 1080I...
-
Page 11: Display Mode List
Display Mode list ■ RESOLUTION HORIZONTAL FREQ(KHZ) VERTICAL FREQ(HZ) 480i 15.75 480p 31.5 576i 15.625 576p 31.25 720p 37.5 720p 1080i 28.125 1080i 33.75 1080p 56.25 1080p 67.5 1080p 640*480 31.469 800*600 37.879 1024*768 48.363 1280*1024 63.981 1440*900 55.935 1366*768 47.852 1680*1050 65.29... -
Page 12: Note
Panel specifications ■ Screen size 7.0" W Max input resolution 1920x1200/60Hz Max brightness 220cd/㎡ ≧110°(V) View angle (CR=10) ≧140°(H) Colors 262.1K Embedded speaker Dimensions (W×H×D) 7’’ ×4.5’’ ×1.2’’ Mass (main unit) 0.6kg Power supply DC: +5V ≤12W Power consumption Note ■... -
Page 13: Panel Descriptions
Panel Descriptions ■ Page 9... -
Page 14: Maintenance
Maintenance ■ Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. Product Service ■ ● Provided Service Damage Requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged;... -
Page 15: Warranty
Warranty If your product does not work properly because of a defect in materials or workmanship, Wyrestorm LLC (referred to as “the warrantor”) will, for the length of the period indicated as below, （ Parts (3) Year ， Labor(1) Days）which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished... - Page 16 damage, modification, or service by anyone other than a Factory Service Center or other Authorized Service, or damage that is attributable to acts of God. There are no express warranties except as listed under “limited warranty coverage”. The warrantor is not liable for incidental or consequential damages resulting from the use of this product, or arising out of any breach of this warranty.
- Page 17 Tel: + 901 384 3575 Fax: + 901 384 3574 European Office: Unit 22, Ergo Business Park, Kelvin Road, Greenbridge, Swindon, SN3 3JW Tel: +44 (0) 1793 230 343 Fax: +44 (0) 1793 230 583 Email: sales@wyrestorm.com (North America) sales@wyrestorm.eu (ROTW) Website:...
