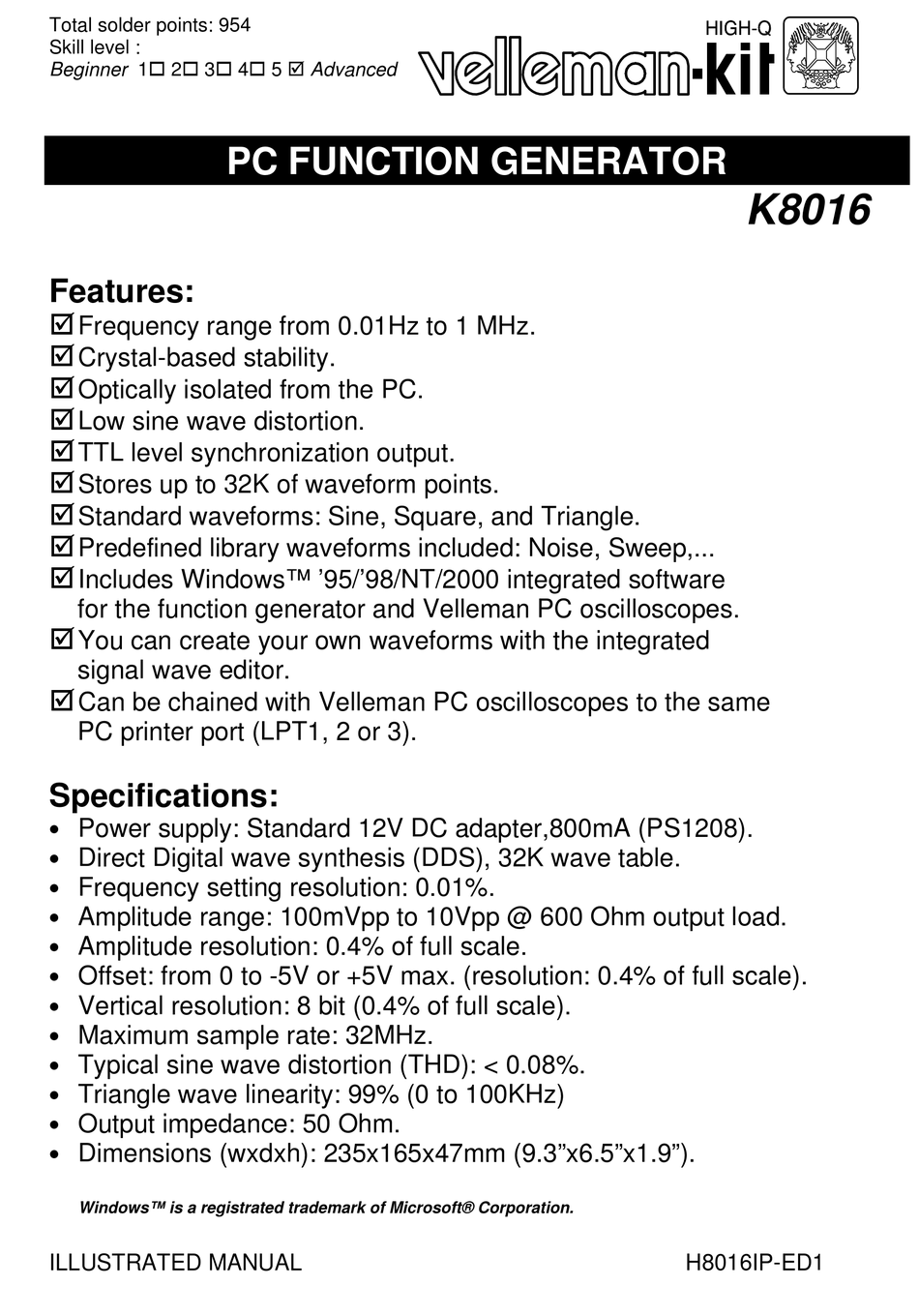

Total solder points: 954
Skill level :
Beginner 1o 2o 3o 4o 5 þ Advanced
Features:
þ
Frequency range from 0.01Hz to 1 MHz.
þ
Crystal-based stability.
þ
Optically isolated from the PC.
þ
Low sine wave distortion.
þ
TTL level synchronization output.
þ
Stores up to 32K of waveform points.
þ
Standard waveforms: Sine, Square, and Triangle.
þ
Predefined library waveforms included: Noise, Sweep,...
þ
Includes Windows™ '95/'98/NT/2000 integrated software
for the function generator and Velleman PC oscilloscopes.
þ
You can create your own waveforms with the integrated
signal wave editor.
þ
Can be chained with Velleman PC oscilloscopes to the same
PC printer port (LPT1, 2 or 3).
Specifications:
Power supply: Standard 12V DC adapter,800mA (PS1208).
Direct Digital wave synthesis (DDS), 32K wave table.
Frequency setting resolution: 0.01%.
Amplitude range: 100mVpp to 10Vpp @ 600 Ohm output load.
Amplitude resolution: 0.4% of full scale.
Offset: from 0 to -5V or +5V max. (resolution: 0.4% of full scale).
Vertical resolution: 8 bit (0.4% of full scale).
Maximum sample rate: 32MHz.
Typical sine wave distortion (THD): < 0.08%.
Triangle wave linearity: 99% (0 to 100KHz)
Output impedance: 50 Ohm.
Dimensions (wxdxh): 235x165x47mm (9.3"x6.5"x1.9").
Windows™ is a registrated trademark of Microsoft® Corporation.
ILLUSTRATED MANUAL
PC FUNCTION GENERATOR
K8016
H8016IP-ED1

Advertisement

loading
Need help?

Need help?

Do you have a question about the K8016 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Velleman-Kit K8016

  • Page 1 Total solder points: 954 Skill level : Beginner 1o 2o 3o 4o 5 þ Advanced PC FUNCTION GENERATOR K8016 Features: þ Frequency range from 0.01Hz to 1 MHz. þ Crystal-based stability. þ Optically isolated from the PC. þ Low sine wave distortion.
  • Page 2 COLOR= 2… 5 4K7= ( 4 - 7 - 2 - B ) 4K7= ( 4 - 7 - 0 - 1 - 1 ) COLOUR CODIFI- KLEUR CODICE CODIGO CODIGO VÄRI FÄRG FARVE FARGE FARB CODE CATION KODE SCHEMA COLORE KOODI KODE...
  • Page 3 __________________________________________________________________________________________________________________________________________________________ 1. Assembly (Skipping this can lead to troubles ! ) Ok, so we have your attention. These hints will help you to make this project suc- cessful. Read them carefully. 1.1 Make sure you have the right tools: • A good quality soldering iron (25- 40W) with a small tip.
  • Page 4 _______________________________________________________________________________________________________________________________________________________ 1.3 Soldering Hints : Mount the component against the PCB surface and carefully solder the leads Make sure the solder joints are cone-shaped and shiny Trim excess leads as close as possible to the solder joint...
  • Page 5 __________________________________________________________________________________________________________________________________________________________ q D16: 1N4148 AXIAL COMPONENTS ARE q D17: 1N4148 TAPED IN THE CORRECT q D18: 1N4148 MOUNTING SEQUENCE ! q D19: 1N4148 DO NOT CONNECT ANY POWER q D20: 1N4148 SOURCE TO THE KIT BEFORE ALL q D21: 1N4148 COMPONENTS ARE MOUNTED.
  • Page 6: Ceramic Capacitors

    _______________________________________________________________________________________________________________________________________________________ R13: 200 (2 - 0 - 0 - 0 - 1) R52: 10K (1 - 0 - 0 - 2 - 1) R14: 200 (2 - 0 - 0 - 0 - 1) R53: 10K (1 - 0 - 0 - 2 - 1) R15: 1K (1 - 0 - 0 - 1 - 1) R54: 20K (2 - 0 - 0 - 2 - 1) R16: 470 (4 - 7 - 0 - 0 - 1)
  • Page 7 __________________________________________________________________________________________________________________________________________________________ C12: 100nF (104 - µ1) 5. IC SOCKET (Watch the position of the C17: 100nF (104 - µ1) notch!) C20: 100nF (104 - µ1) C23: 100nF (104 - µ1) C25: 100nF (104 - µ1) C26: 100nF (104 - µ1) C27: 100nF (104 - µ1) C28: 100nF (104 - µ1) C29: 100nF (104 - µ1)
  • Page 8: Electrolytic Capacitors

    _______________________________________________________________________________________________________________________________________________________ 6. ELECTROLYTIC CAPACITORS 7. MULTITURN TRIMMER (Watch the polarity!) RV... C... q C4: 4µ7 q C7: 1µF q C11: 4µ7 q C13: 100µF RV1: 2K (K002TW) q C14: 100µF q C15: 100µF 8. OSCILLATOR (Watch the posi- q C16: 100µF tion of the notch!) q C18: 4µ7 q C19: 100µF...
  • Page 9 __________________________________________________________________________________________________________________________________________________________ 9. REED RELAY (Watch the 11. TRANSISTORS position of the notch!) RY... PIN 1 RY1: VR05R051A q T1: BC337 q T2: BC327 10. PICO FUSE q T3: BC337 q T4: BC327 FS... q T5: BC337 q T6: BC337 q T7: BC337 q T8: BC327 q T9: BC337 q T10: BC337...
  • Page 10: Voltage Regulators

    _______________________________________________________________________________________________________________________________________________________ 12. VOLTAGE REGULATORS 13. LED MOUTING (Watch the polarity!) VR... LD... CATHODE q IC1: 7912 (UA7912) q IC12: 7812 (UA7812) q LD1: LED 3mm. RED q IC17: 7805 (UA7805) q LD2: LED 3mm. RED 14. CONNECTORS q J6: BNC CONNECTOR PCB J8: BNC CONNECTOR PCB IC16: 79L05 (UA79L05) J...
  • Page 11 __________________________________________________________________________________________________________________________________________________________ 15. IC (Watch the position of the notch!) J5: 25P SUB-D, FEMALE ! q IC2: 74HC595 (Connection: TO PC-SCOPE) q IC3: 74HC595 q IC4: 74HC4518 q IC5: 74HC595 q IC6: TDA8702 q IC7: 74F161 q IC8: 74HC162 q IC9: 74HC14 q IC10: CY7C199 q IC11: 74HC4518 q IC13: AD811...
  • Page 12 _______________________________________________________________________________________________________________________________________________________ 16. VOLTAGE REGULATOR & ASSEMBLING IC23: 7805 (UA7805P) This regulator must be a plastic type ! Attention : The voltage regulator is a fully isolated (plastic) type because it has to be isolated galvanically from the rear panel. Mount the voltage regulator on the rear panel and fasten it with the supplied M3 bolt, washer and nut as shown on the drawing.
  • Page 13 __________________________________________________________________________________________________________________________________________________________ 17. CALIBRATION To allow calibration, the unit must be connected to the computer and the supplied software must be installed. Please consult the ‘Getting Started’ manual for details on the connection and installation procedure. • Select the function generator module [Function generator]. •...
  • Page 14 _______________________________________________________________________________________________________________________________________________________ 18. PCB (Component side).
  • Page 15 __________________________________________________________________________________________________________________________________________________________ 19. SCHEMATIC DIAGRAM: Power supply section.
  • Page 16 _______________________________________________________________________________________________________________________________________________________ 20. SCHEMATIC DIAGRAM: Analogue section.
  • Page 17 __________________________________________________________________________________________________________________________________________________________ 21. SCHEMATIC DIAGRAM: Digital section.
