Atlas 501 Quick Start Manual

Alignment machine

Unpacking your new 501 Atlas

Congratulations on the purchase of your new Atlas

Alignment Machine. This memo is provided to get you

up and going in the fastest possible manner.

1. Your machine is ready to go out of the box. There is no need to install

software, calibrate, or do anything other than proceed with cable

installation.

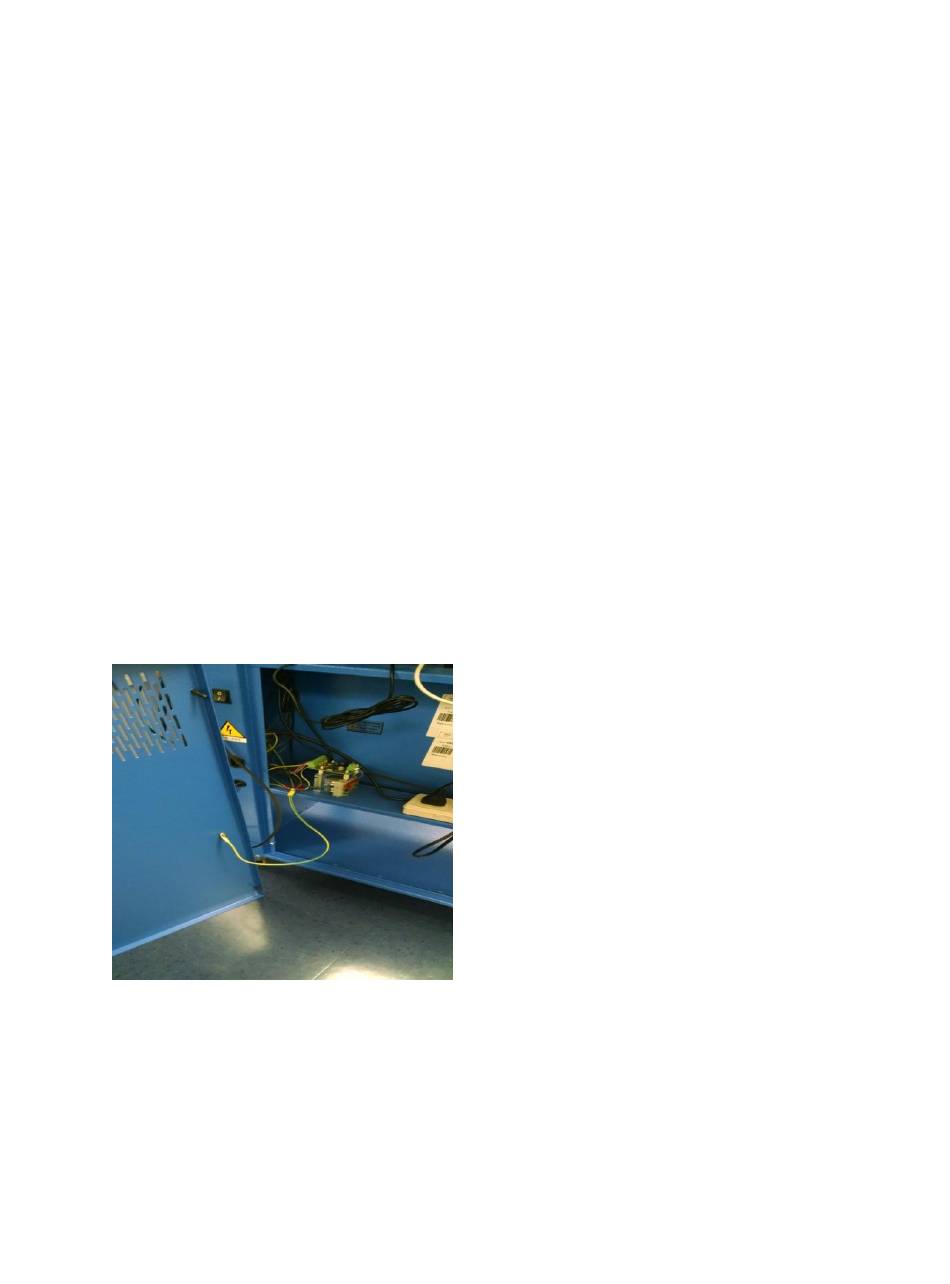

2. Unscrew the four screws on the front panel of the machine and four screws

on the back cover of the machine. Note: the back cover will have a ground

wire attached so be careful not to pull it lose when you sit this to the side.

3. If you have a 501 model the only connections that will need to be made will

be at the back of the computer. You will plug in the usb cables, monitor

cable (VGA), printer usb cable, and power cable.

Alignment Machine

Table of Contents

Need help?

Do you have a question about the 501 and is the answer not in the manual?

Page 1 3. If you have a 501 model the only connections that will need to be made will be at the back of the computer. You will plug in the usb cables, monitor...
Page 2 Blank CPU 501 Connected *Note Pc model may be different but connections will be same on all. ***New style PC Unit 4. Monitor installation: You will receive a monitor in a separate box. Mount this to the existing bracket on the cabinet using the supplied hardware (4 small allen screws).
Page 3 The computer may have a disk and a flash drive in the box with it. You DO NOT need to do anything with these items. Put them in a safe place that you know you can access them later. They will be used only during a remote support session for memory purposes.
Page 4 (back of unit) to printer. An adapter is supplied but not needed in most cases. 8. Head Charging on the 501: On this unit you will need to plug the charging ports into the bottom of the sensors for charging only. The heads will communicate wirelessly...
Page 6 ***Printer and PC may vary in style or model. Your completed unit...
