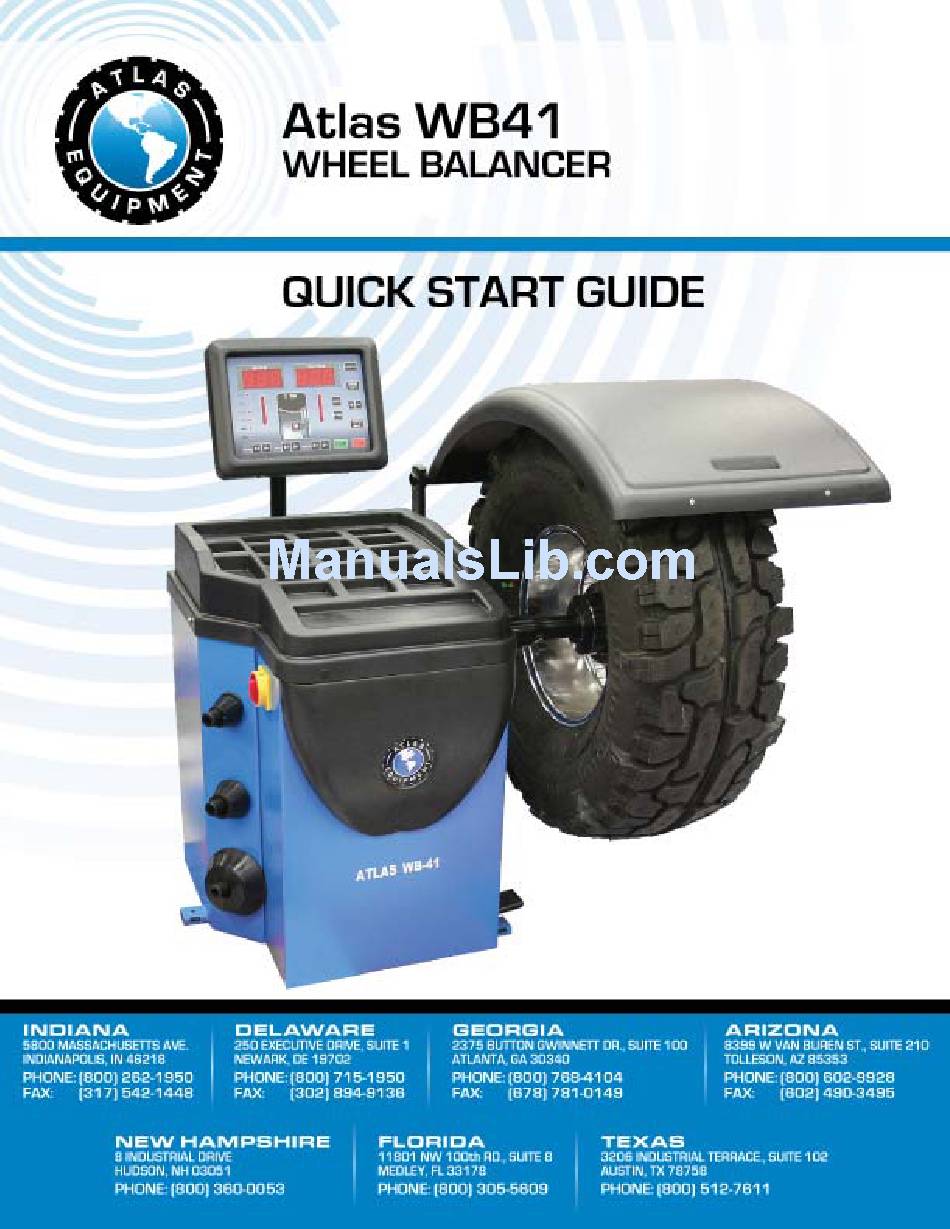

Summary of Contents for Atlas WB41
- Page 2 INDEX PAGE Control Panel ...........................3 Special Key Functions ........................4 Switching From Grams to Ounces ....................4 Calibration............................5...
- Page 3 DISCLAIMER: The Split Weight Function and ALU* setting are available on wheel balancers that are equipped with the Automatic Data Entry System. The Atlas WB21 and WB49 are both equipped with the Automatic Data Entry System. The Atlas WB41 is NOT equipped with the...
- Page 4 Special Key Functions Switching from grams to ounces STEP 1: Press “MENU” to access the menu functions. STEP 2: Use the “-/+” keys to scroll through the menu functions until “SET UP” is displayed. STEP 3: Press “ENTER” STEP 4: Use the “-/+” keys to scroll through the set up functions until “U” is displayed. STEP 5: Press “ENTER”...
- Page 5 STEP 1: Use a 15 inch diameter, 6 inch wide (P205/70 R15 or P215/70 R15), slightly used or new steel wheel and tire on the balancer. Only a hub-centric wheel may be used. Wheels that are lug-centric (center on the studs, not the center hole) cannot be used for calibration.
- Page 6 STEP 4: Next, place the wheel on the shaft. STEP 5: Finally, place the Quick Nut on the shaft with the pressure cup attached. Tighten the Quick Nut securely, but do not over tighten. NOTE: Over tightening the Quick Nut will cause damage to the nut. STEP 6: Verify that the balancer is in DYNAMIC mode, then manually enter the…...
- Page 7 “B” (width of the wheel in inches) “D” (diameter of the wheel in inches; Use caliper, or refer to marking on tire) NOTE: The measuring rod used to determine the “A” distance is marked in centimeters. You must convert to millimeters by multiplying the measurement by 10. This is the value you must enter as the “A”...
- Page 8 To enter the self-calibration mode, use the following steps: STEP 1: Press “MENU” to access the menu functions STEP 2: Use the “-/+” keys to scroll through the menu functions until “Set Up” is displayed. STEP 3: Press “ENTER” STEP 4: Use the “-/+” keys to scroll through the set up functions until “CAL” is displayed in the left window.
- Page 9 STEP 7: Press “ENTER” STEP 8: The display will read “Add 0”. Lower the hood and spin the wheel. STEP 9: When the cycle is finished and the tire stops, the display will read “3.50 Add” (100 grams). Rotate the wheel until all the inside weight indicators are fully lighted. Apply the 3.5 ounce (100 gram) calibration weight on the inside edge of the wheel at the 12 o’...
- Page 10 STEP 11: After the cycle is finished, the screen will flash “EEP ON” then return to “000 000”. Your balancer is now calibrated. NOTE: Some earlier models will not flash “EEP ON” when the calibration is done.
