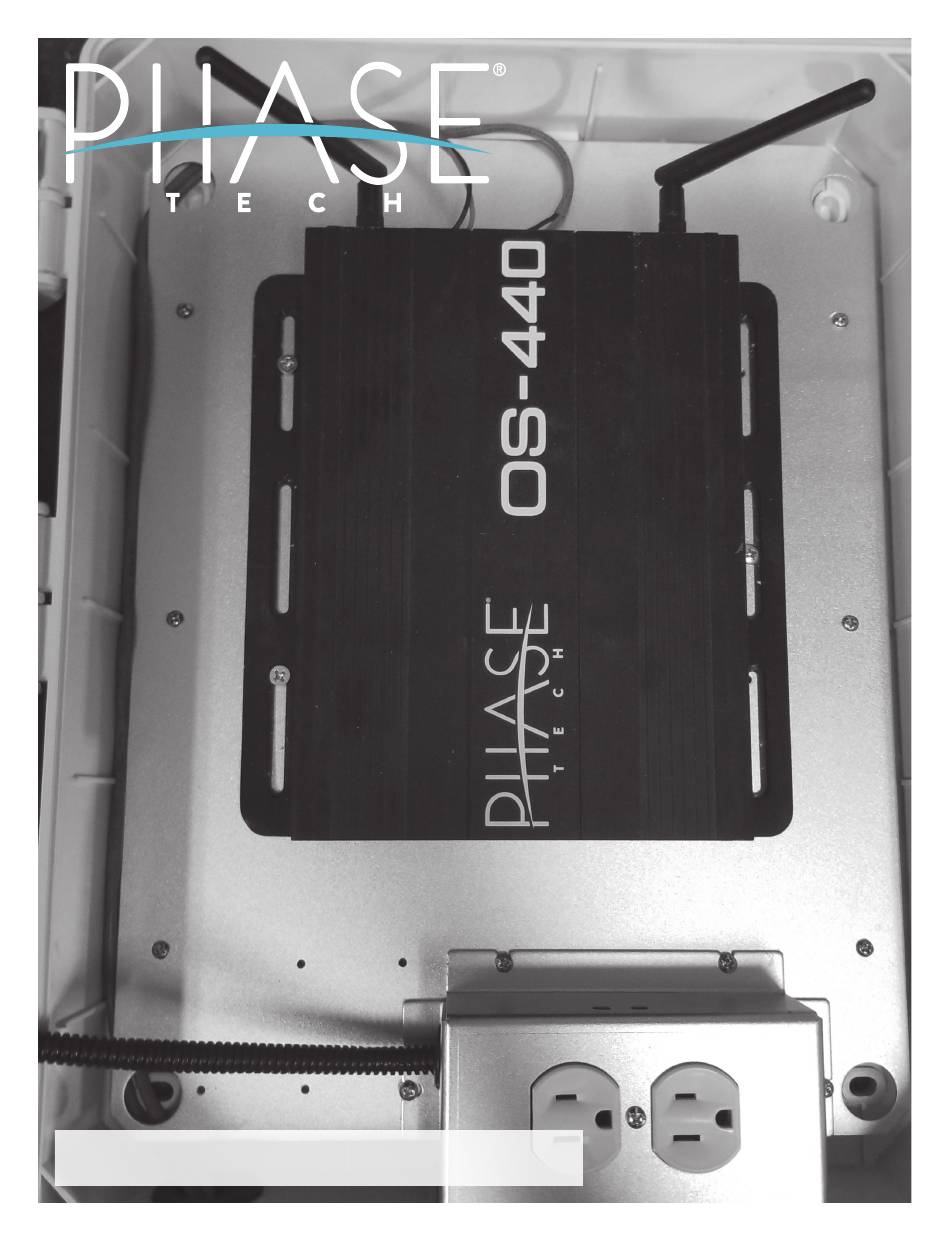

- Page 1 OS-440 BOX MOUNT GUIDE Rev 1.20.2020...
- Page 2 If you plan on using the prewired 5’ cord on the enclosure, ensure that the mounting position is close to an outlet, the outlet utilized must be a covered, GFCI outlet. 3. Unbox the OS-440 and screw in antennas.
- Page 3 4. Secure the OS-440 onto the back aluminum mounting plate within the enclosure. This can be done using many methods. The method shown utilizes two of the predrilled and tapped holes (8-32) and one No. 8 self-drilling screw. Note: Before securing the OS-440 to the mounting plate, ensure that all wires/connectors can access the OS-440 without interfering with the enclosure.
- Page 4 7. Run desired speaker wires through the grommet and connect to the OS-440. 8. Plug in the OS-440 to the outlet in the enclosure. 9. Connect the ventilation fan to the power card that is prewired within the enclosure. 10. Plug the box into an outlet. The enclosure must be plugged into a covered, GFCI outlet. Consult an electrician for hard...
