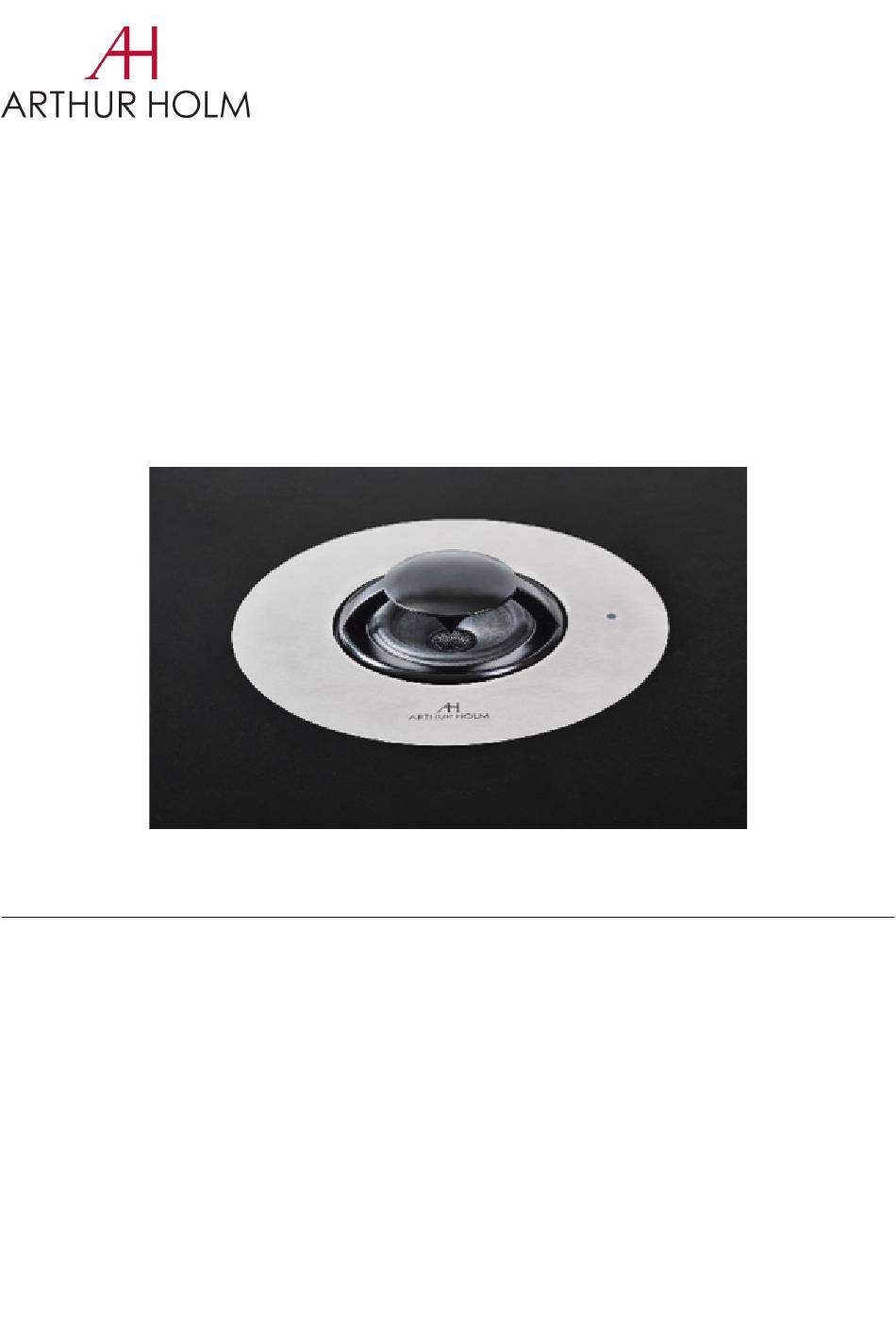

- Page 1 User manual AHSSR42W › › DynamicSpeaker.›Motorised›loudspeaker›for›integration›in›desks.
- Page 2 User manual About us The›company Arthur› Holm› has› its› origins› in› the› Danish› furniture› designer› Jorgen› Alex› Jensen,› who› was› active› during› the› sixties› and› the› seventies.›His›design›inspiration›and›his›concept›of›ergonomics›have›been›continued›by›his›family,›the›design›force›behind› Arthur›Holm›product›range.›The›result›of›combining›Scandinavian›design›tradition›with›Mediterranean›creativity,›flexibility›and› emotion›is›a›wide›product›range›built›on›more›than›20›years›of›craftsmanship. Arthur› Holm› offers› a› professional› product› range› where› tomorrow’s› technology› is› shaped› into› valued› materials› with› design› flexibility›...
- Page 3 User manual Welcome Thank›you›for›purchasing›an›ARTHUR›HOLM›product. Our›product›range›has›been›designed›to›create›the›perfect›meeting›room,›where›the›screens›are›a›part›of›the›interior›design› as›well›as›essential›communication›tools. Please›read›these›installation›and›operation›instructions›carefully›and›keep›them›in›a›safe›place›for›future›reference. We›remain›at›your›disposal›if›you›have›any›suggestions›that›would›help›us›improve›our›products. Henrik›Holm General›Manager...
-
Page 4: Table Of Contents
User manual Table of contents EC›Normative›and›Security›Norms Features Connections Controls›and›Audio›Features AHnet›Protocol AHlink Disposal›Information Warranty... -
Page 5: Ec Normative And Security Norms
User manual EC Normative and Security Norms ATTENTION: Do not disassemble or modify the device in any way This›symbol›warns›of›the›presence›of›dangerous›non-insulated›voltages›inside›some› of›the›components,›which›are›powerful›enough›for›risk›of›electric›shock. This›symbol›draws›attention›to›important›use›and›maintenance›instructions›in›the› manual›that›accompanies›the›unit. This›symbol›indicates›that›the›equipment›conforms›to›the›norms›established›by›the› European›Community. Safety Instructions PLUGS Do›not›dismantle›any›part›of›the›monitor›power›connector. Disconnect›the›power›plug›from›the›AC›outlet›when›the›monitor›is›not›going›to›be›used›for›an›indefinite›period. POWER AND EXTENSION CORDS Use›the›appropriate›power›cord›with›the›correct›plug›type. Do›not›overload›wall›outlets›or›power›cords. Make›sure›the›total›ampere›passed›through›an›extension›cord›does›not›exceed›the›maximum›allowed›by›the›cable›used. Do›not›place›anything›on›the›power›cord. Do›not›locate›this›product›where›a›person›may›trip›or›walk›over›the›cord. - Page 6 User manual EC Normative and Security Norms Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables For your security, your equipment must be connected to an electrical outlet with grounding connection protection The›operating›electrical›outlet›must›be›in›an›easily›accessible›place.
-
Page 7: Features
User manual Features Features › › Motorised›loudspeaker›for›integration›in›desks › › Compact,›omnidirectional›360›degrees›Class-D›active›speaker,›two›way›coaxial›driver,›integrated›DSP›technology › › System›controlled›through›AHnet›and›also›through›AHlink:›a›new›wireless›app›for›control›and›set-up › › Designed›to›be›hidden›when›not›in›use›with›a›smooth,›elegant›and›silent›movement › › 360›degrees›loudspeaker› › › Near›field›audio›reproduction› › › Horizontal›surfaces› › › High›gain›before›feedback› › › Speech›intelligibility›enhancement › › Active›speaker› › › Remotely›controllable› › › Balanced›sound›level›distribution› ›... -
Page 8: Connections
User manual Connections Connections › › 24Vdc›power›input › › SERVICE:›USB›to›be›used›only›for›service › › LINE›IN:›Audio›input › › AHnet:›RJ45›CAT5›connector›for›addressable›RS422›control.›There›is›a›loop›through›connector›to›use›as›RS422›signal› output.›Up›to›30›monitors›can›be›connected›to›the›same›RS422›bus › › Termination:›Activate›(ON)›the›termination›ONLY›on›the›last›monitor›of›the›RS422›bus › › ADDRESS:›AHNet›address›for›the›addressable›AHNet›command›protocol.›Address›00›is›reserved›for›service › › SERVICE:›USB›to›be›used›only›for›service... - Page 9 User manual Controls and Audio Features Controls 1.› Touch›button›to›open›and›close›the›unit Audio Features › › 4’’›coaxial›loudspeaker › › Class-D›2›way›bi-amplified › › RMS›power›2›x›36.5W › › 360º›dispersion › › Balanced›analogue›audio›input.›Level›line›+4dB › › Internal›DSP › › Frequency›response›:›70Hz›–›20KHz›(-10dB)
-
Page 10: Ahnet›Protocol
AHnet Protocol User manual AHnet Protocol › › Communication›type›:›RS422 › › Connection›type›:›RJ45 › › Wiring›type›:›CAT-5 › › Speed›and›configuration›: › – Baud›Rate›=›38400 › – Data›Bits›=›8 › – Parity›=›None › – Stop›Bits›=›1 WIRING›DIAGRAM 1.› Data›TX+ 2.› Data›TX- 3.› Data›RX+ 4.› NC 5.› NC 6.›... - Page 11 AHnet Protocol User manual AHnet›commands: XX:›Number›of›the›DynamicTalk›address.›Up›to›30›units›for›each›RS422›bus. CB1:›Response›in›8›bites›of›the›device›status CB2:›Response›in›8›bites›of›the›device›status CB1: To›send›an›order›to›all›devices›use›the›address: › F7›Hex.›(Byte1) In›this›case,›the›units›will›not›respond.
- Page 12 User manual AHlink AHlink AHlink›is›used›to›control›and›configure›the›unit. Activate›the›AHlink›function›by›pressing›the›open/close›button›on›the›cover›plate›during›3›seconds. Using›a›mobile›phone,›download›the›“EZ›App›Lynx”›app›from›the›App›Store›(IOS›system)›or› › Google›Play›(Android›system).›This› App›is›cost›free.›Execute›the›“EZ›App›Lynx”›on›your›mobile›phone.
- Page 13 User manual AHlink Select›the›“Scan›for›local›devices”›option›and›your›AH›device›will›appear›on›screen. The›name›of›the›device›is›“AH”›+›4›character›Bluetooth›MAC›address›...
-
Page 14: Ahlink
User manual AHlink After›selecting›the›device,›the›page›shown›below›appears›on›screen. › Serial:›Serial›number›of›the›unit › Ver:›Firmware›version › MOV:›Control›for›the›open/close›mechanical›functions › AHNetRx: Last›AHnet›command›received › Sensor status: Sensor›status›information – S1, S2:›Not›used – S3:›Open/Close›sensor›switch.›The›sensor›is›Off›while› pressing›the›Open/Close›button› › on›the›cover›plate – S4:›Mechanical›close›sensor.›The›sensor›is›On›when›the› device›is› › › › › › closed › AHnet Address:› › Shows›the›AHNet›address›configured › Position:›Current›position›of›the›mechanics ›... - Page 15 User manual AHlink › Serial: Serial›number›information›of›the›device › OPEN: Opens›the›unit › CLOSE: Closes›the›unit › AUTO ADJUST: Auto› adjusts› the› speed› and› protection› parameters.›On›selecting›this›button›the›unit›will›open›and› close› several› times› and› adjust› the› speed› and› protection› parameters›automatically › Speed open fast: Speed›open›fast›value › Speed open slow: Speed›open›slow›value ›...
- Page 16 User manual Disposal Information INFORMATION ON DISPOSAL OF ELECTRICAL AND ELECTRONIC EQUIPMENTS WASTE This›symbol›on›the›products›and/or›accompanying›documents›means›that›used› electrical› and› electronic› products› should› not› be› mixed› with› general› household› waste. For›proper›treatment,›recovery›and›recycling,›please›take›these›products›to›designated›collection›points,›where›they›will›be› accepted›on›a›free›of›charge›basis.›Alternatively,›in›some›countries›you›may›be›able›to›return›your›products›to›your›local›retailer› upon›the›purchase›of›an›equivalent›new›product. Disposing›of›this›product›correctly›will›help›to›save›valuable›resources›and›prevent›any›potential›negative›effects›on›human› health›and›the›environment›which›could›otherwise›arise›from›inappropriate›waste›handling.›Please›contact›your›local›authority› for›further›details›of›your›nearest›collection›point. In›accordance›with›national›legislation›penalties›may›be›applicable›for›incorrect›disposal›of›this›waste. FOR BUSINESS USERS IN THE EUROPEAN UNION If›you›wish›to›discard›electrical›and›electronic›equipment,›please›contact›your›dealer›or›supplier›for›further›information.
- Page 17 User manual Warranty ALBIRAL DISPLAY SOLUTIONS S.L. WARRANTY Valid from January 2016 ARTHUR›HOLM›/›ALBIRAL›VERTICAL›RETRACABLE›MONITORS›WARRANTY›TERMS: LIMITED›5-YEAR›WARRANTY›ENGINE›AND›MECHANICAL›LIFTING›PARTS The›engine›and›mechanical›lifting›parts›and›any›of›their›parts›other›than›those›covered›by›either›the›separate›warranties›below› or›those›subject›to›normal›wear›and›tear›are›guaranteed›to›be›free›from›manufacturing›defects›for›a›period›of›5›years›from›the› date›of›purchase.›If›any›manufacturing›defect›appears›in›the›engine›and›mechanical›lifting›parts›or›in›their›parts›other›than›those› parts›covered›below›or›those›subject›to›normal›wear›and›tear›within›5›years›of›purchase. LIMITED›2-YEAR›WARRANTY LCD›PANEL,›LCD›PANEL›INVERTER,›LCD›CONTROLER›AND›POWER›SUPPLY› The›electric›parts›of›this›Arthur›Holm›product›are›guaranteed›to›be›free›from›manufacturing›defects›for›a›period›of›2›years›from› the›date›of›purchase.› GENERAL›WARRANTY›TERMS a)› Parts:› During›the›warranty›period›mentioned›above›(LIMITED›5-YEAR›WARRANTY:›ENGINE›AND›MECHANICAL›LIFTING›PARTS› and› LIMITED› 2-YEAR› WARRANTY:› LCD› PANEL,› LCD› PANEL› INVERTER,› LCD› CONTROLER› AND› POWER› SUPPLY),› the› replacement›...
- Page 18 User manual Notes...
- Page 19 User manual Notes...
- Page 20 Our Product Patents › MU 1996 ES00 › MU 16997 ES00 › MU 17180 ES00 › MU 17301 ES00 › MU 17322 ES00 › MU 17376 ES00 › MU 1741 ES00 › MU 17445 ES00 › P 248121 DEEP › P 24821 ESEP ›...
