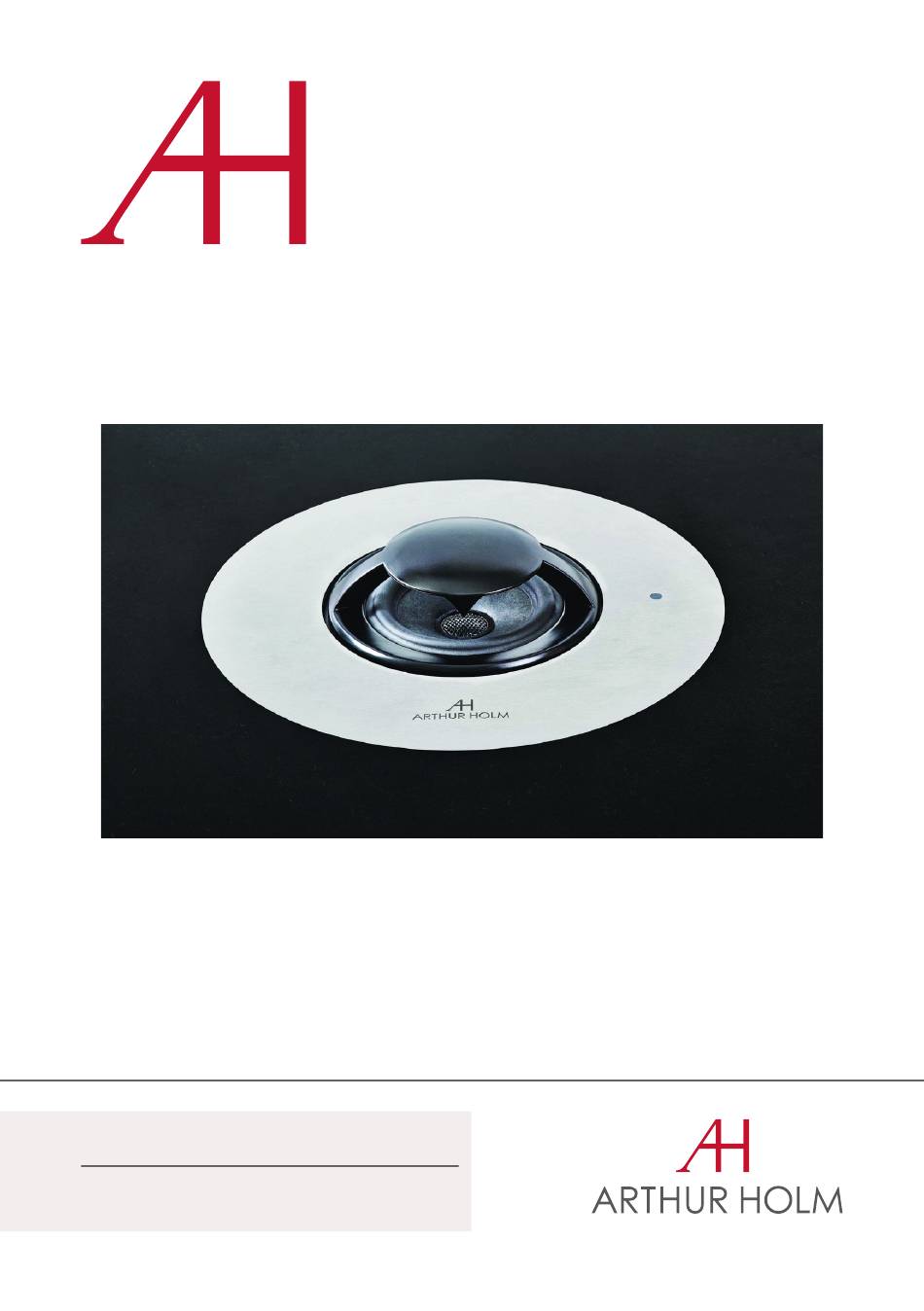

- Page 1 User Guide DynamicSpeaker AHDSR42W Motorised loud speaker for integration in desks Technology Serving Desing Danish craftmanship Mediterranean soul...
-
Page 3: Table Of Contents
TABLE OF CONTENTS EC REGULATIONS & SECURITY FEATURES CONNECTIONS CONTROLS AND AUDIO FEATURES MOUNTING INSTRUCTIONS ASSEMBLY INSTRUCTIONS AHnet PROTOCOL AHLINK WARRANTY TERMS... - Page 4 ABOUT US The Company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, the design force behind Arthur Holm product range. The result of...
- Page 5 WELCOME Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens and speakers are a part of the interior design as well as an essential communication tool.
-
Page 6: Ec Regulations & Security
EC REGULATIONS AND SECURITY ATTENTION: Do not disassemble or modify the device in any way. This symbol warns of the presence of dangerous un-insulated voltages inside some of the components, of sufficient magnitude to expose people to risk of electronic shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit. - Page 7 SAFETY INSTRUCTIONS Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables. For your security, your equipment must be connected to an electrical outlet with grounding connection protection. Since the plug is used to disconnect the device, the operating electrical outlet must be in an easily accessible place.
-
Page 8: Features
FEATURES • Motorised loudspeaker for integration in desks • Compact, omnidirectional 360 degrees Class D active speaker, two way coaxial driver, integrated DSP technology • System controlled through AHnet and also through AHlink: a new wireless app for control and set-up •... -
Page 9: Connections
CONNECTIONS 24Vdc POWER INPUT SERVICE USB to be used only for service LINE IN Audio input AHNET RJ45 CAT5 connector for addressable RS422 control. There is a loop through connector to use as signal RS422 output. Up to 30 devices can be connected on the same RS422 bus TERMINATION Activate (ON) the termination, ONLY on the last unit of the RS422 bus ADDRESS... -
Page 10: Controls And Audio Features
CONTROLS AND AUDIO FEATURES Controls 1. Touch button to open and close the unit Audio features • 4" coaxial loud speaker • Class-D 2 way bi-amplified • RMS power 2 x 36.5 W • 360º dispersion • Balanced analogue audio input. Level line +4dB •... -
Page 11: Mounting Instructions
Mounting Brackets MOUNTING INSTRUCTIONS 1-. Assemble the 2 mounting 3-. Tighten the four M6x60 screws until 2-. With the DynamicSpeaker inserted into Bracket they touch the table and AHDTB is fixed the table, attached the brackets in each side (x4) DIN 7985 M6X60... -
Page 12: Ahnet Protocol
AHNET PROTOCOL Communications protocol COMMUNICATION RS422 CONNECTION RJ45 WIRING CAT-5 Speed & configuration BAUD RATE 38400 DATA BITS PARITY NONE STOP BITS Wiring Diagram 1. Data TX + 2. Data TX – 3. Data RX + 4. NC 5. NC 6 .Data RX RJ-45 7. - Page 13 AHNET PROTOCOL AHnet protocol Using 5 bytes communication: BYTE 0 START BYTE BYTE 1 ADDRESS BYTE BYTE 2 COMMAND BYTE BYTE 3 VALUE 1 BYTE 4 VALUE 2 AHnet commands COMMAND DESCRIPTION RESPONSE FA XX 01 01 00 OPEN FB XX 01 01 00 FA XX 01 00 00 CLOSE FB XX 01 00 00...
- Page 14 AHNET PROTOCOL BITE CLOSED OPENED PROTECT NO PROTECT BUT_EN BUT_DIS To send an order to all the devices, you must use the address: F7 Hex. (Byte1) In this case, the units will not respond.
-
Page 15: Ahlink
AHLINK AHlink is used to control and configure the unit. Activate the AHlink function by pressing the open/close button on the cover plate during 3 seconds. Using a mobile phone, download the “EZ App Lynx” app from the App Store (IOS system) or Google Play (Android system). This App is cost free. Execute the “EZ App Lynx”... - Page 16 AHLINK Select the "Scan for local devices" option and your AH device will appear on screen. The name of the device is "AH" + 4 character Bluetooth MAC address.
- Page 17 AHLINK After selecting the device, the page shown below appears on screen. SERIAL Serial number of the unit Firmware version Control to open/close mechanical functions AHNetRX Last AHnet command received SENSOR STATUS Sensor status information - S1, S2: Not used - S3: Open/Close sensor switch.
- Page 18 AHLINK SERIAL Serial number information on the device OPEN Opens the unit CLOSE Closed the unit AUTO ADJUST Auto adjusts the speed and protection parameters. On selecting this button the unit will open and close several times and adjust the speed and protection parameters automatically SPEED OPEN FAST SPEED OPEN SLOW...
- Page 19 INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to the designated collection points, where they will be accepted on a free of charge basis.
-
Page 20: Warranty Terms
WARRANTY TERMS AND CONDITIONS Albiral Display Solutions warrants this product against manufacturing defects and workmanship for a period of two (2) years from the date of purchase, subject to the conditions below. 1. Electrical, electronic boards, accessories and power supply are warranted against manufacturing defects and workmanship for a period of two (2) years from the date of purchase. - Page 21 If you have any doubts concerning the terms of this warranty, please contact: business@albiral.com +34 938 502 376 Copyright © Dec. 2019. All rights reserved Albiral Display Solutions SL. Registered trademarks: Albiral, Arthur Holm, Pixtron Broadcast...
- Page 22 Patents P27178ITEP P27178RUPC MU17180ES00 P27178USPC MU17301ES00 P27284DEEP MU17322ES00 P27284EPPC MU17413ES00 P27284ESEP MU17445ES00 P27284GBEP MU17854ES00 P27284RUPC MU17868DEPC P27284USPC MU17868RUPC P27715ESEP P24821DEEP P28089DEEP P24821ESEP P28089ESEP P24821GBEP Fàtima 25, Sant Hipòlit de Voltregà P28089ITEP P24821USPC 08512 Barcelona – Spain P28089USPC P27178DEEP tel: +34 93 850 23 76 / 23 83 P28090EP00 P27178EPDV01 fax: +34 93 850 25 50 / 23 72...
