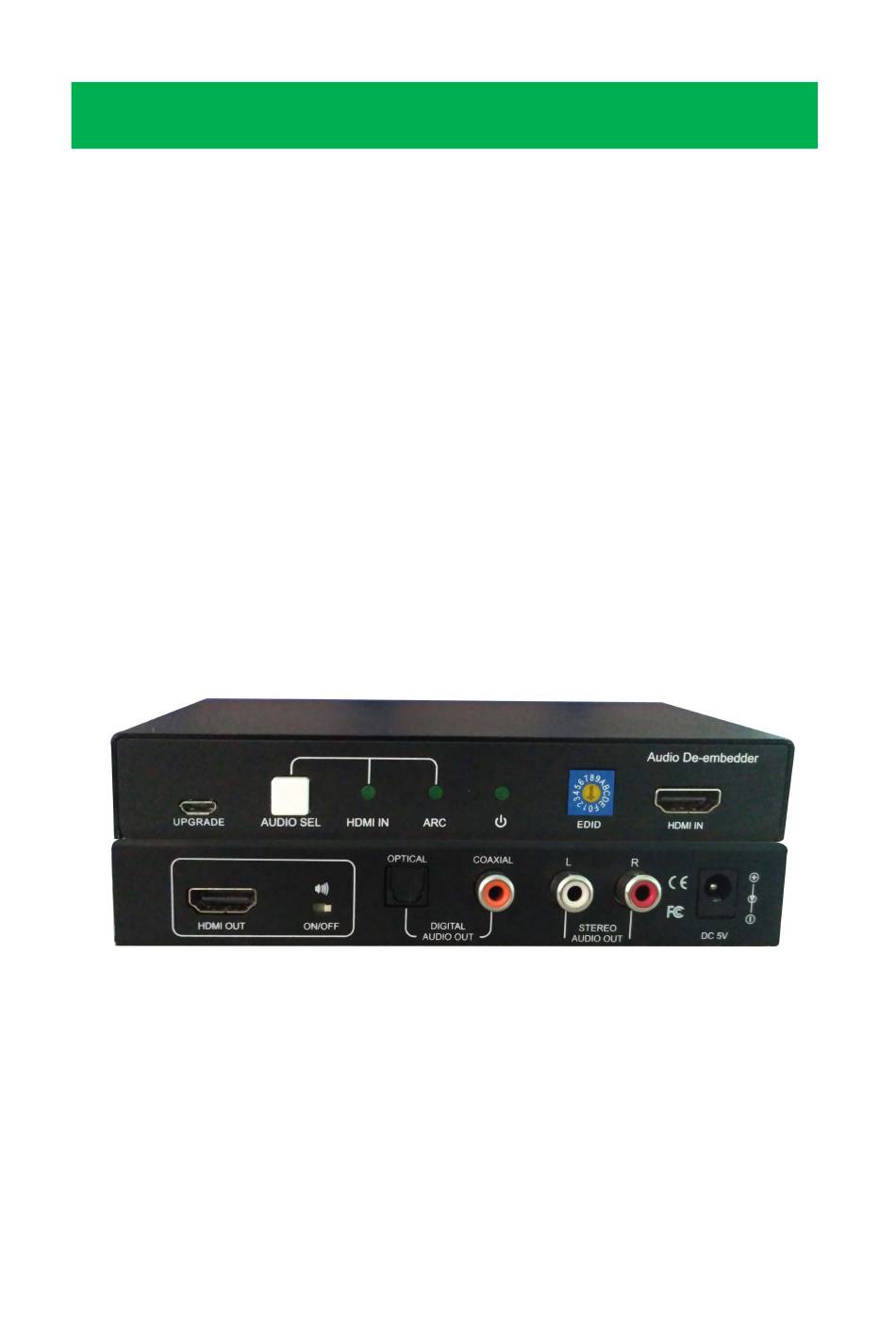

- Page 1 User Manual 4K HDMI Audio De-Embedder 4K HDMI audio decoder with EDID management Version number： V1.12.16...
-
Page 2: Table Of Contents
Contents 1. Introduction..................1 2. Package Contents ................1 3. Features...................1 4. Panel Descriptions................2 4.1 Front Panel..................2 4.2 Rear Panel..................2 5. Connection Diagram.................3 6. Operation..................4 6.1 Audio Output Modes Setting............4 6.2 EDID Management................4 6.3 Audio of HDMI Output Setting............5 6.4 Firmware Upgrade (by Microsoft Windows System only) ....5 7. - Page 3 Safety Reminder To protect the device and operating personnel from electrostatic discharge, you need to check and ensure that the device is grounding well before the device is powered on. Please observe the following when you install, use, maintain this equipment.
-
Page 4: Introduction
1. Product Introduction The 4K HDMI Audio De-Embedder is an HDMI audio de-embedder with HDMI repeater. It de-embeds audio from the HDMI input which supports up to 4K@60 resolution with HDCP 2.2, to one Toslink, one coax, and one analog outputs. The Toslink and coax also get audio from the audio return channel (ARC) via the HDMI output. -
Page 5: Front Panel
4.1 Front Panel Upgrade Port - Micro USB, connecting to computer for firmware upgrade only. 2Audio Source Select Button - It can select audio mode between HDMI IN and ARC (Audio Return Channel); Learn EDID; Reset EDID data. HDMI Input LED - Indicates the HDMI IN mode and HDMI input connection status. ARC LED - Indicates the ARC mode and ARC connection status. -
Page 6: Connection Diagram
AVR or audio amplifier. L & R Analog Audio Output - Two RCA connectors, connect to audio acceptor such as AVR or audio amplifier. Power Input - Connects to the DC 5V power supply 5. Connection Diagram 6. Operation 6.1 Audio Output Modes Setting There are two modes for the audio outputs. -
Page 7: Edid Management
input is not connected successfully, please check the connection. 6.1.2 ARC Mode When it is set to ARC Mode, the optical and coaxial audio outputs get audio from the Audio Return Channel of the HDMI output, the analog audio output have no audio output. When it is on HDMI IN Mode, the ARC LED is off;... -
Page 8: Audio Of Hdmi Output Setting
Set the rotary switch to 0, it detects the EDID of output device and displays right resolution automatically. 6.2.2 Select Built-in EDID Set the rotary switch to any of the 10 positions from 1 to A, selects the corresponding EDID data built-in the certain position (see above EDID Data Sheet). - Page 9 6) Select the First Target, and click Verify after download 7) Click Upgrade, and then click Yes on the pop-up window...
- Page 10 8) It starts to upgrade and shows Target 00: Verify successful ! 9) Re-plug the power to restart the unit, firmware upgrade finishes. 7. Specifications...
-
Page 11: Firmware Upgrade (By Microsoft Windows System Only)
Input 1 x HDMI 1 x HDMI 1 x OPTICAL (Toslink) Output 1 x COAX (orange RCA) 1 x L/R (red & white RCA) Bandwidth 10.2GBps HDMI HDMI1.4 HDCP HDCP1.4, HDCP2.2 HDMI resolutions Up to 3840x2160@60Hz (4:2:0) HDMI Audio Format (L)PCM 2 / 5.1 / 7.1CH, Dolby Digital, DTS 5.1CH, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio HDMI Distance... -
Page 12: Version Information
choose and pay for the repair of the defective product or component, the delivery of the equivalent product or component to the user for replacement of the defective item, or refund the payment which users have made. The replaced product will become the property of the Company. The replacement product could be new or repaired.
