- Page 1 USER MANUAL Digital to Analog Audio HiFi Headphone Amplifier with Toslink ⇋coaxia...
- Page 2 Introduction This Digital to Analog Audio converter is designed for home or professional audio switching. It converts coaxial or Toslink digital audio signals to analog L / R audio and can be connected to external devices such as amplifiers via a standard RCA_type jack. You can also 3.5mm headphone jack output, connect high-fidelity headphones.

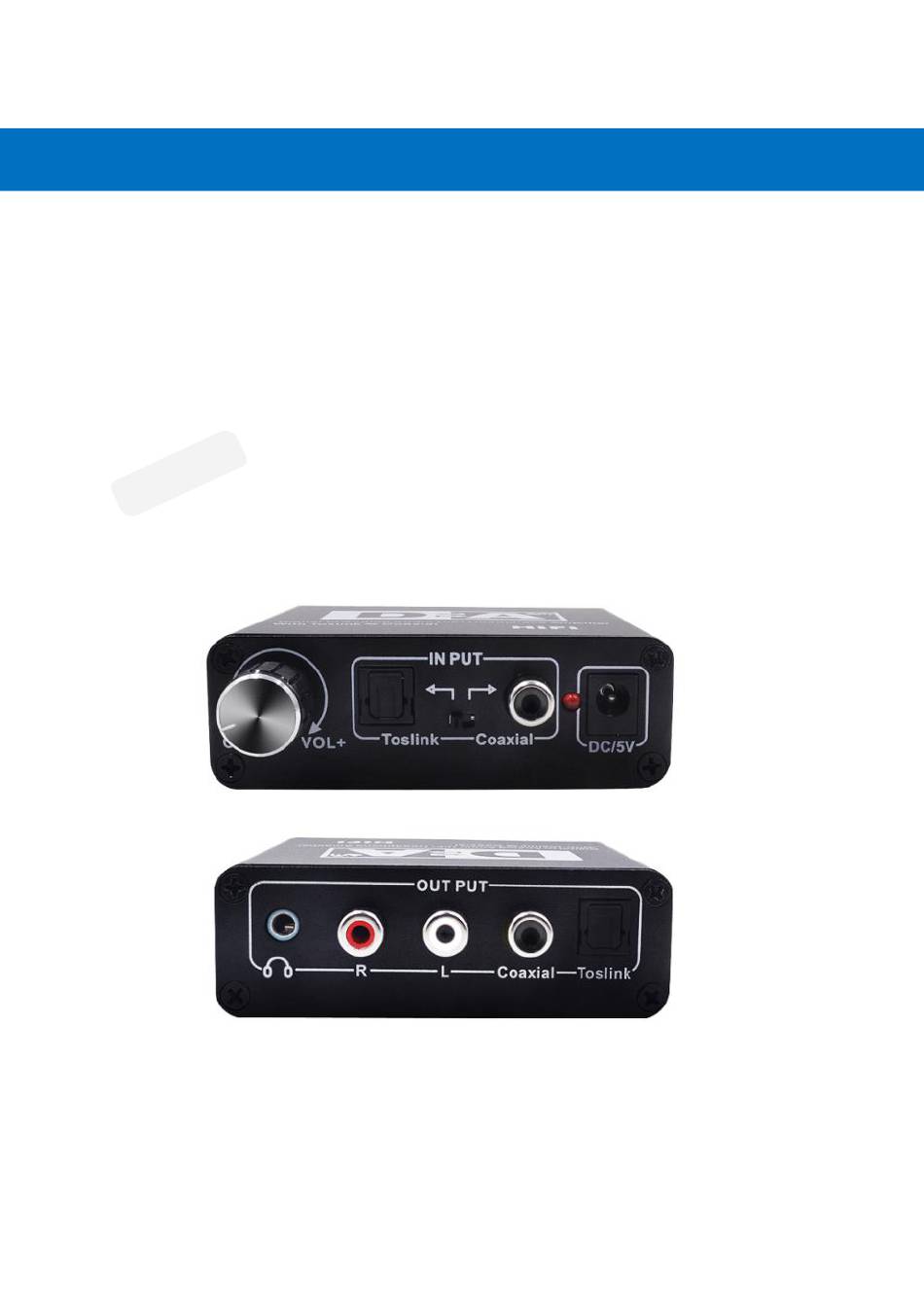

- Page 3 Package Contents: Decoder............1PCS User Manual...........1PCS 5V/1A Power Adapter........1PCS Diagram of Interfaces: ① Turn the power switch to the left, and hear the "beep"power off. ② Volume switch controller. ③ Toslink input port.
- Page 4 ④ Toslink coaxial switch input switch. ⑤ Coaxial input port. ⑥ Power indicator. ⑦ Power input: DC / 5V. ⑧ Toslink output port. ⑨ Coaxial output port. ⑩ L output port. ⑪ R output port. ⑫ Headphone output port. Connection Diagram: Connection and Operation：...
- Page 5 or Coaxial cables. 2) Connect the A/V Receivers or Amplifiers to the Converter using appropriate R/L cable. 3) Insert the DC side of 5V power supply into the converter and then connect the AC side of the power supply into the wall outlet.Turn the power switch to adjust the volume.
