CAB FOR WALK-BEHIND SNOWBLOWERS #700525-2
PRE INSTALLATION:
NOTE
: Some standard pre assembly has been done (the most commonly used) to facilitate installation. Certain
models of walk behind snowblowers have accessories attached on the handle bar that come into interference
with the cab's right adjustable support assembly.
Please follow the instructions that are in the hardware bag. Refer to the parts breakdown for identification of the
parts.

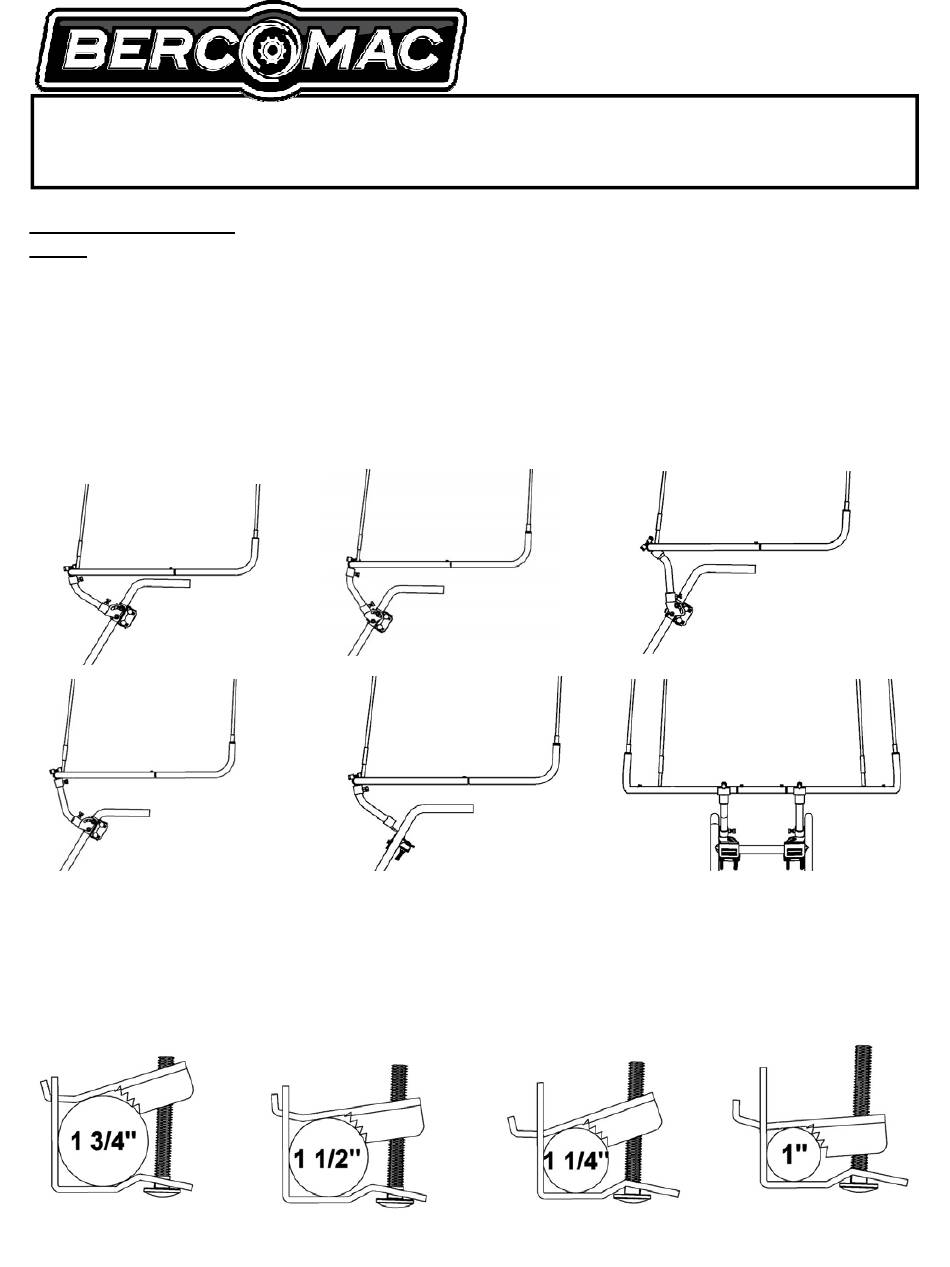

Determine the location of the left and right adjustable support assemblies that will adapt the best on your
snowblower. Several possibilities are offered, they are not all illustrated.
About twelve positions are possible and are adjustable in different ways. The link can be inverted which will allow
even more positions.
The right & left adjustable supports can be moved from one side to the other, the inside and outside attaching
plates can be inverted on either the vertical and horizontal handles, which will give a greater quantity of
positions.
The inside and outside attaching plates were designed to accept different sizes of snowblower handles.
Determine the installation that is necessary for your snowblower. Position the carriage bolts as close as possible
to the handles of the snowblower.
106078
INSTALLATION
Instructions
L-03
Advertisement
Related Manuals for Bercomac 700525-2
Summary of Contents for Bercomac 700525-2
- Page 1 Instructions CAB FOR WALK-BEHIND SNOWBLOWERS #700525-2 INSTALLATION PRE INSTALLATION: NOTE : Some standard pre assembly has been done (the most commonly used) to facilitate installation. Certain models of walk behind snowblowers have accessories attached on the handle bar that come into interference with the cab’s right adjustable support assembly.
-
Page 2: Installation
ASSEMBLY INSTALLATION: Remove the flange nuts M8 (item 1) and the carriage bolts M8 x 65mm (item 2) from the right and left adjustable support assemblies (item 3). This will allow you to remove the 13mm tools (item 4) that you will use during the rest of the installation. Remove the nuts and bolts. - Page 3 ASSEMBLY Place your assembly in the middle of the snowblower. Position it so that it is parallel with ground in both directions; front (View A) and the side (View B). Tighten all the bolts and nuts firmly. Place the mounting parallel with the ground Insert the eight vertical rods (item 1) (all the same length) on the assembly (item 2) as shown.
- Page 4 ASSEMBLY Install the two lateral rods (item 1) (the two shortest ones) in the corners (item 2) as shown. Install the lateral rods Install the front & back top rods (item 1) (in the corners (item 2) as shown. Install the front and back rods Install the canvas (item 1) on the cab assembly, make sure the back panels (item 2) are over the back top rod.
- Page 5 ASSEMBLY The canvas is preassembled with a removable window panel (long panel). If the snowblower is equipped with headlights, handles or other accessories, remove the long window panel (item 1) from the window. You can use the three panels (items 2,3 & 4) according to your needs.
- Page 6 PARTS BREAKDOWN CAB FOR WALK BEHIND SNOWBLOWER 106078 L-03...
- Page 7 PARTS LIST CAB FOR WALK BEHIND SNOWBLOWER Ref. Qty. Part # English description Description française Réf. Qté. Pièce # Central pipe Tube central 105450 Left pipe Tube gauche 105451 Right pipe Tube droit 105452 Extension Extension 105453 Bushing Coussinet 105454 Lateral rod Tige latérale 105455...
- Page 8 WHEN PERFORMANCE & DEPENDABILITY ARE NON NEGOTIABLE ! Ber comac Limit ée 92, For tin Nor t h, Adstock, Quebec, Canada, G0N 1S0 WWW.BERCOMAC.COM PRINTED IN CANADA (ORIGINAL NOTICE) 106078 L-03...
