Summary of Contents for Dewenwils HOYS22M
- Page 1 HOYS22M...
- Page 2 Align four tabs on stake with four holes on back of timer. Push tabs down, then up, until they lock into place. Shown as Figure...

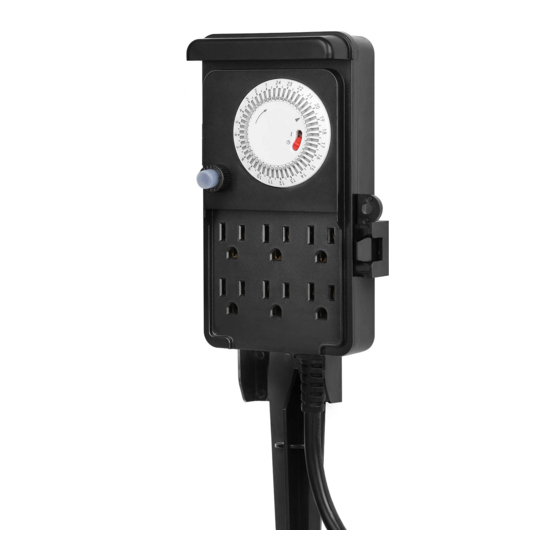

- Page 3 Timer Dial Manual Override Switch Overload Protection Switch Grounded Outlets 1.Set the current timer: Turning dial clockwise until the arrow indicates to current time. 2. Begin with all pins inner ring. Push the pins out for the periods of time you want the timer to be ON. Pins in outer ring represents ON and inner ring represents OFF.
- Page 4 15A Resistive 14/3C 600W Tungsten 1/2 HP...
