Dewenwils HOWT01E Instruction Manual

Wifi timer box
Hide thumbs

Advertisement

Quick Links

Download this manual
Wifi timer box
SKU:HOWT01E
V40412

Advertisement

loading
Need help?

Need help?

Do you have a question about the HOWT01E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dewenwils HOWT01E

Summary of Contents for Dewenwils HOWT01E

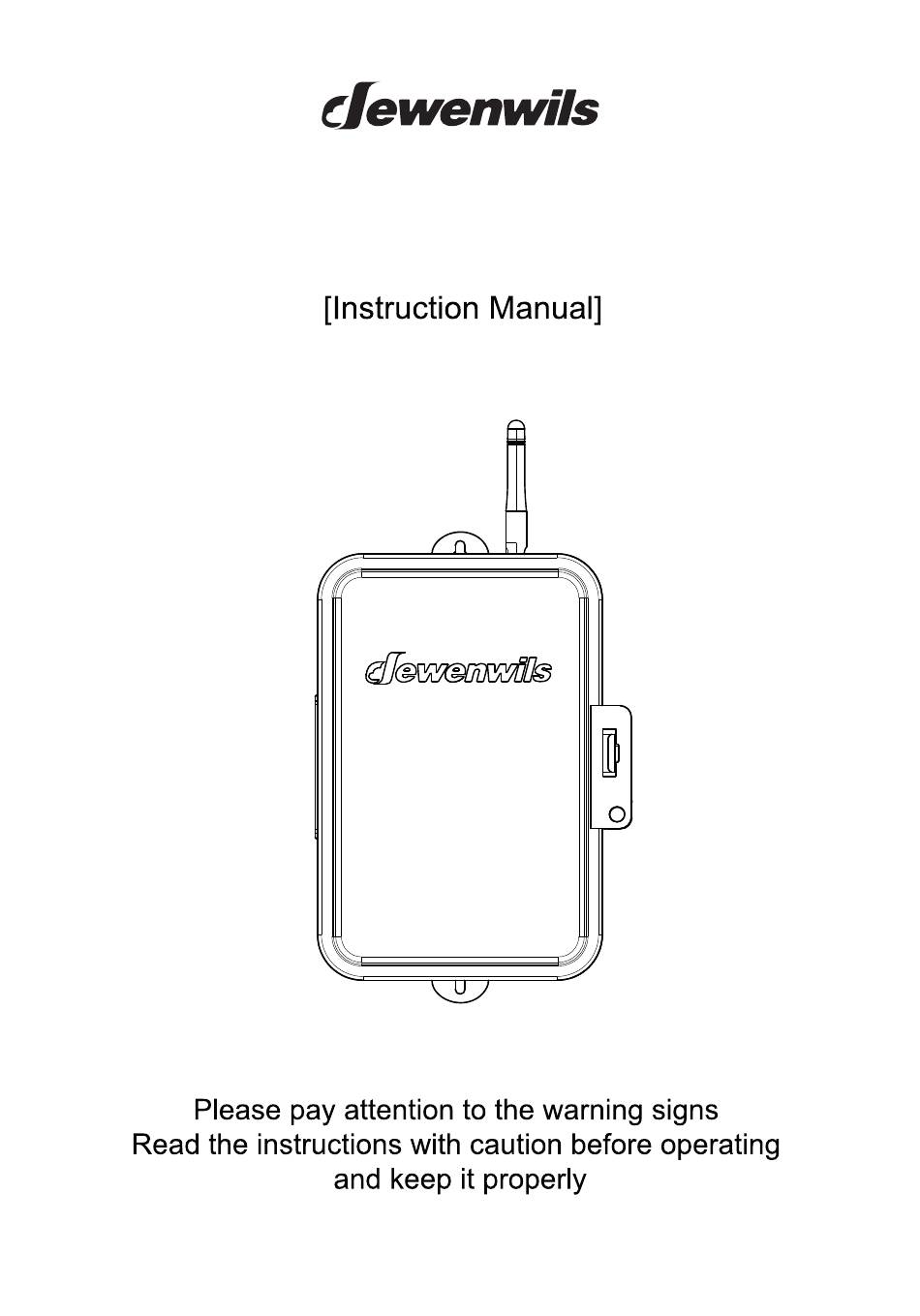

  • Page 1 Wifi timer box SKU:HOWT01E V40412...
  • Page 2 WARNING: This Smart Box should be installed by a licensed electrician.Turn power off at main panel before servicing this switch or the equipment it controls. IMPORTANT: For outdoor use. Rain-tight or wet location conduit, hubs, tubing, and cable fittings that comply with requirements of UL 514B must be used for installation.
  • Page 3 Input: 120VAC 60Hz Output: 50A Resistive, 120VAC 2HP, 120VAC 10A LED, 120VAC 1. Read Important Safety Information below before beginning installation. 2. Open outer cover by pressing the clip. 3. Remove the interior protection cover by removing the two screws holding the cover in place (Figure 1).
  • Page 4 WARNING: Risk of Fire or Electric Shock. Read instructions thoroughly before installation and preserve for future reference. Disconnect power at circuit breaker and test if power is off before installing (or servicing) the Pool Timer (more than one circuit breaker or disconnect switch may be required to fully disconnect power).
  • Page 5 POOL TIMER TYPICAL APPLICATION WIRING DIAGRAMS Note: Pool Timer is only capable of being configured for 120VAC. POOL TIMER (Load) Load N Load L Load Power L Power N 120VAC POOL TIMER (Load) Load2 Load2 Load Load1 Load1 Load Power L Power N 120VAC...
  • Page 6 Please refer to INSTALLATION INSTRUCTION SHEET before proceeding with Wi-Fi router connection. Smart Box must be installed before connecting to Wi-Fi router. Software Installation Guide Download the “Smart Life” App: Scan QR Code or search "Smart Life" in Google Play or the App Store to download and install the app. Note: All pictures shown are for illustration purpose only, the APP will be updated continuously, please refer to the latest APP interface to operate.
  • Page 7 Each device can only be connected to one account. If anyone else needs to control it, please share your device via the app. 1.Launch the "Smart Life" app and connect your Pool Timer to your network. Note: The Pool Timer only support 2.4GHz network. Power Indicator is ON Pool Timer is powered on...
  • Page 8 1) If the Blue Wi-Fi LED indicator on Smart Box doesn't flash at the first connection, please press and hold the power button for about 5-10 seconds to see if it starts flashing (2 times per second); 2) If the Smart Box can't be connected to WiFi, please long press power button for 5-10 seconds to reset;...

  • Page 9: Timer Function

    Note:Please attention "location information" on mobile needs to be turned on. 2. Timer Function Select the“Countdown”, ”Schedule”, ”Circulate”, "Random" or “Astronomical” to meet your needs. Astronmical Countdown Schedule Random Circulate ON/OFF Button Timer Function...
  • Page 10 1.Countdown: Tap "Countdown" to set the hours and minutes, and then tap the “ ” button. The Smart Box will maintain the current state (on or off) until the end of the countdown. It will exit countdown mode automatically if you turn on/off manually. 2.Schedule:You can set the Start/End time in a 7-day period with a 1 minute interval according to your needs.
  • Page 11 3.Circulate: You can set the duration of each ON and OFF, the Start and End time according to your needs. The ON/OFF schedule will repeat between the Start and End time. For example: You set a period from 9:00 to 15:00 on Monday to Friday, turn on your light for 1 hour , and off for 30 minutes.
  • Page 12 Discover devices: Echo needs to discover your smart devices before controlling them.You say "Alexa. discover devices" to Echo. Echo will discover devices that have already been added in "dewenwils "app.You can also tap "discover devices" to discover the smart devices.
  • Page 13 4.Wait for it to finish loading, your smart devices will be synced to Google Assistant or Google Home App that can control them. Next, you can assign rooms to your devices in the Google Home App. dewenwils This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
