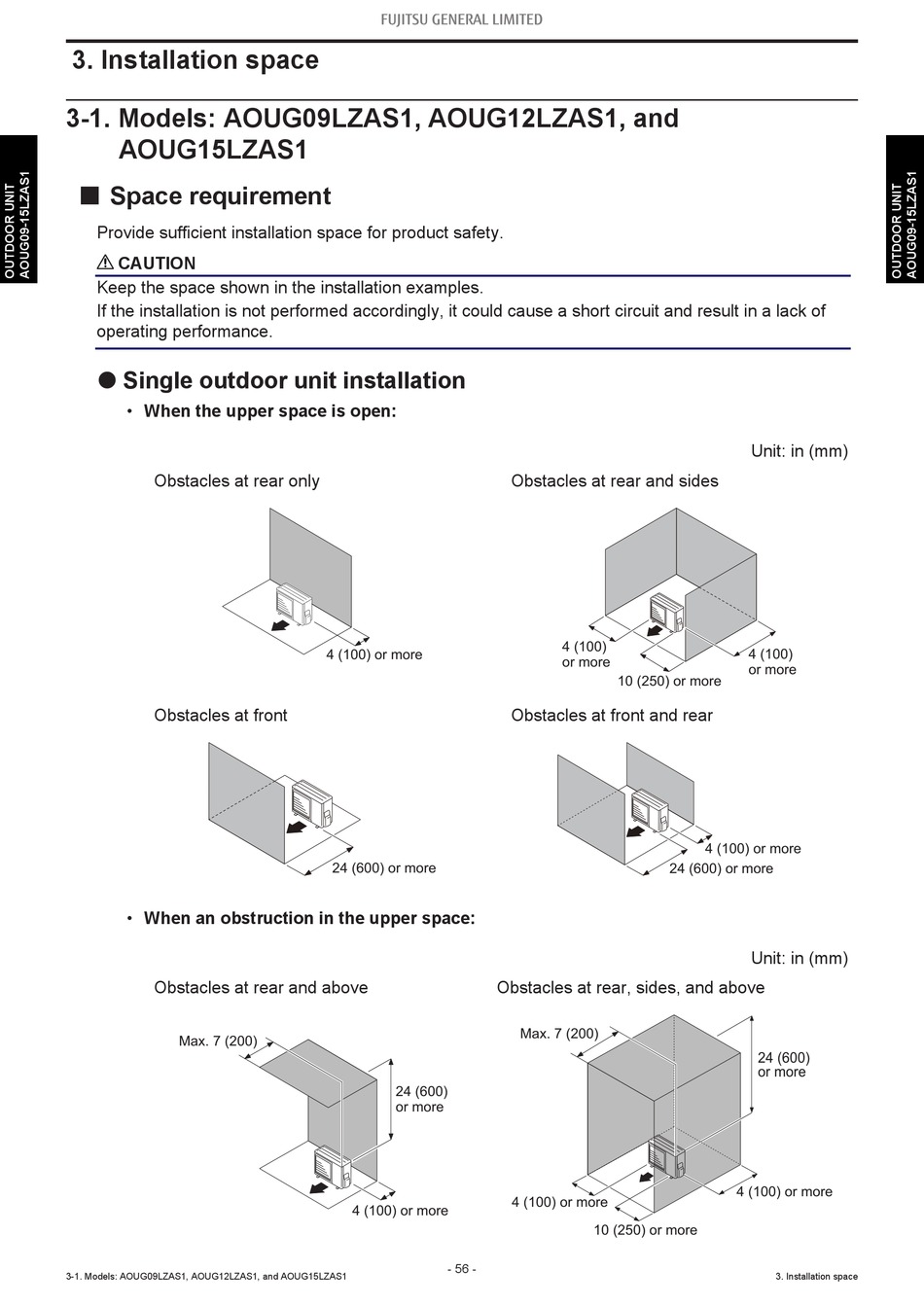

3. Installation space

3-1. Models: AOUG09LZAS1, AOUG12LZAS1, and
AOUG15LZAS1
¢ Space requirement
Provide sufficient installation space for product safety.
CAUTION
Keep the space shown in the installation examples.
If the installation is not performed accordingly, it could cause a short circuit and result in a lack of
operating performance.
 Single outdoor unit installation
• When the upper space is open:
Obstacles at rear only
Obstacles at front
• When an obstruction in the upper space:
Obstacles at rear and above
Max. 7 (200)

3-1. Models: AOUG09LZAS1, AOUG12LZAS1, and AOUG15LZAS1

4 (100) or more
24 (600) or more
Obstacles at rear, sides, and above
24 (600)
or more
4 (100) or more
- 56 -
Obstacles at rear and sides
4 (100)
or more
10 (250) or more
Obstacles at front and rear
24 (600) or more
Max. 7 (200)
4 (100) or more
10 (250) or more
Unit: in (mm)
4 (100)
or more
4 (100) or more
Unit: in (mm)
24 (600)
or more
4 (100) or more
3. Installation space
