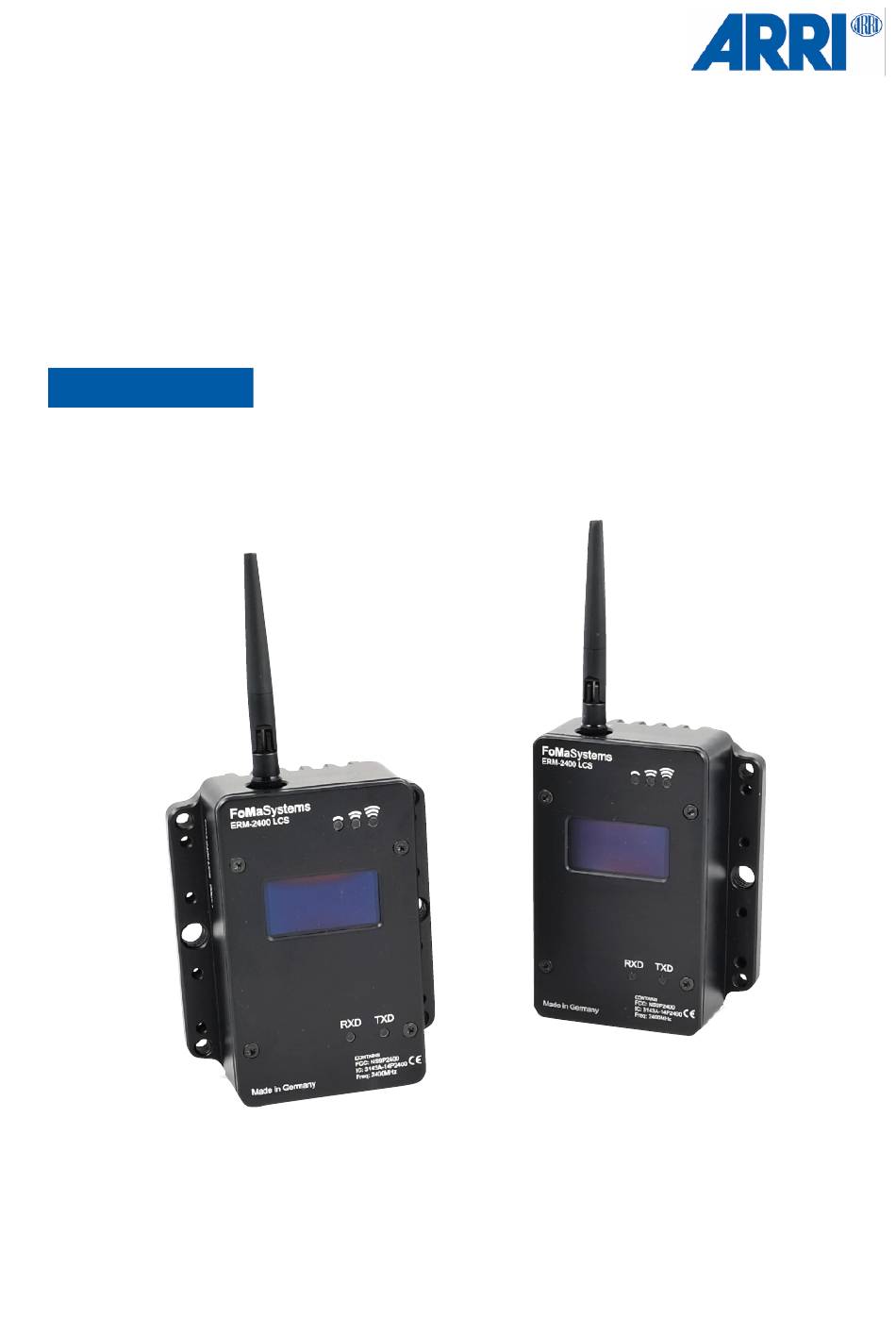

External Radio Modules for LCS
ERM-2400
SUP2.3
USER MANUAL
Date 06.04.2020

Advertisement

Table of Contents
loading

Related Manuals for ARRI ERM-2400

Summary of Contents for ARRI ERM-2400

  • Page 1 External Radio Modules for LCS ERM-2400 SUP2.3 USER MANUAL Date 06.04.2020...
  • Page 2 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost profits, lost...

  • Page 3: Table Of Contents

    Table of Contents Table of contents 1 For your safety………………………………………………………………………….. 2 Functions ………………………………………………………………………………… 3 Introduction …..…………………………….……………………………………………. 3.1 How It Works ……………………………………………………………….…………… 3.2 Compatibility…….………………….……………………………………………………. 3.3 Handling Transmitter / Receiver ………………………………………………………. 3.4 The basic set ……………………………………………………………………..…….. 3.5 Recommended and required optional extension cables …………………………… 3.6 Additional LBUS extensions cables …………………………………………………..

  • Page 4: For Your Safety

    This product is NOT intended for inexperienced users and should not be used without reading the manual or additional training. ARRI recommends that all users read the manual in its entirety prior to use. How to use this manual All directions are given from a camera operator's point of view. For example, camera-right side refers to the right side of the camera when standing behind the camera and operating it in a normal fashion.

  • Page 5: Functions

    Functions Functions Functions front Rubber Duck Antenna Signal Strength Display RXD / TXD Status FS CAN Bus Power In LEMO 0B 2pin USB Port Functions back 1/4“ thread 3/8“ thread / RMB-2 mounting thread RMB-2 / RMB-3 mounting threads M4 thread ERM for LCS SUP2.3...

  • Page 6: Introduction

    Any other use is not recommended and may damage the modules. How It Works An ERM-2400 LCS set of radio modules basically extends an LCS, LBUS, EXT (CAN bus) cable connection over air. As such, it can connect ARRI and cmotion hand units to cameras and motor controllers and they behave as if they were hard-wired, but with an exceptionally great wireless range.

  • Page 7: The Basic Set

    ERM-2400 Ext. Radio Module 2.4GHz RXD-TXD, LCS, Basic Set K2.007120 Includes: 2 x ERM-2400 Ext. Radio Module 2.4 GHz RXD-TXD LCS (incl. antennas) 2 x ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft 2 x ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65ft 1 x ERM EXT to FS CAN Bus Adapter Cable, 0.2m/0.65ft...

  • Page 8: Connecting The Erm Via Lcs, Ext. And Lbus

    Connecting Connecting the ERM via LCS, Ext. and LBUS WCU-4 / SXU-1 ERM EXT to FS CAN Bus Adapter Cable, 0.2m/0.65ft K2.0036901 ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft K2.0036900 Required optional extension cables SRH FS CAN Bus Cable, 1m/3.2ft K2.0033762 SRH FS CAN Bus Cable, 10m/32.8ft K2.0019302...

  • Page 9: Master Grip To Alexa Mini, Alexa Mini Lf And Amira

    Connecting Master Grip to ALEXA Mini, ALEXA Mini LF and AMIRA ERM EXT to FS CAN Bus Adapter Cable, 0.2m/0.65ft K2.0036901 ERM LBUS to FS CAN Bus Adapter Cable, 0.2m/0.65f K2.0036903 Cable LBUS - D-Tap 0.8m/2.6ft K2.0006758 Required optional extension cables SRH FS CAN Bus Cable, 1m/3.2ft K2.0033762 SRH FS CAN Bus Cable, 10m/32.8ft...

  • Page 10: Wcu-4 / Sxu-1 / Amc-1 / Cforce Mini Motors

    Connecting WCU-4 / SXU-1 / AMC-1 / cforce mini motors Cable LBUS - D-Tap 0.8m/2.6ft K2.0006758 ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft K2.0036900 Required optional extension cables ERM LCS to FS CAN Bus Adapter Cable, 0.2m/0.65ft K2.0036900 SRH FS CAN Bus Cable, 1m/3.2ft K2.0033762 SRH FS CAN Bus Cable, 10m/32.8ft...

  • Page 11: Appendix

    Frequency Hopping, DTS V OUT ERM-900 Specifications Electrical/General Supported Frequency 902 - 928 MHz Spreading Method Frequency Hopping, DTS Dimensions without antenna ERM-2400 / ERM-900 Length 11 cm / 4.33“ Width 9 cm / 3,54“ Hight 4 cm / 1,57“...
  • Page 12 Appendix Dimensional Drawings ERM for LCS SUP2.3...
  • Page 13 Declarations of Conformity Approval Information The products offered by ARRI are approved for use in a number of countries. Product- specific information on approval can be found in the respective operating instruction manuals. Import and use in countries other than those mentioned in the respective operating instructions may be subject to legal, regulatory, or official requirements and regulations.
  • Page 14 Appendix Declaration of Conformity Product Type External Radiomodule Brand Name FoMaSystems Product Name FoMaSystems ERM-P2400 Address FoMa Systems GmbH Oskar-Sembach-Ring 11 D-91207 Lauf The product complies which the requirements of the following European directives: DIRECTIVE 2014/53/EU OF THE EUROPEAN PARLIAMENT AND OF 2014/53/EU THE COUNCIL on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and...
  • Page 15 Appendix FCC Statement / IC Statement ERM-2400 contains: FCCID: NS9P2400 The ERM-2400 will be shipped with readjusted 0.1Watt transmission power to be complaint in all addressed markets. NOTICE For USA and Canada the transmission power can be changed locally by the ARRI service to 1Watt transmission power.
