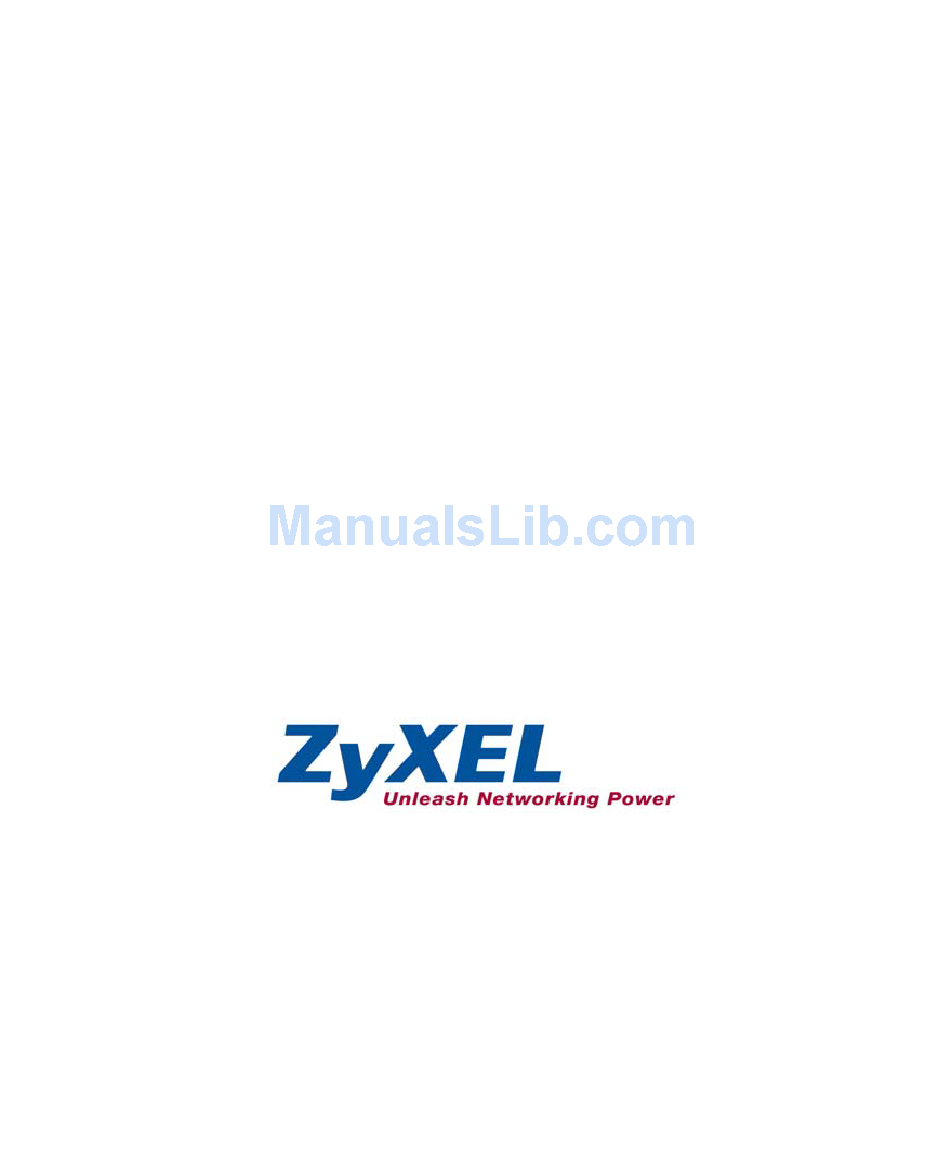

Prestige 660W/HW Series
ADSL 2/2+ Gateway with 802.11g Wireless
Compact Guide
Version 3.40
May 2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige 660W/HW Series and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications Prestige 660W/HW Series

Summary of Contents for ZyXEL Communications Prestige 660W/HW Series

  • Page 1 Prestige 660W/HW Series ADSL 2/2+ Gateway with 802.11g Wireless Compact Guide Version 3.40 May 2004...

  • Page 2: Table Of Contents

    Prestige 660W/HW Series Compact Guide 1 Introducing the Prestige...4 2 Hardware ...5 2.1 Rear Panel Connections...5 2.2 The Front Panel LEDs ...6 3 Internet Access With Zero Configuration ...10 4 Setting Up Your Computer’s IP Address ...11 4.1 Windows 95/98/Me...11 4.2 Windows 2000/NT/XP ...14...
  • Page 3 Prestige 660W/HW Series Compact Guide 6.5 Configuring SUA Server ...30 6.6 Firewall Overview...32 6.7 Enabling the Firewall ...33 6.8 Procedure for Configuring Firewall Rules ...33 6.9 Configuring Source and Destination Addresses...37 7 Troubleshooting...39...

  • Page 4: Introducing The Prestige

    Prestige 660W/HW Series Compact Guide 1 Introducing the Prestige The Prestige 660W/HW ADSL 2/2+ Gateway with 802.11g Wireless is the ideal all-in- one device for small networks connecting to the Internet via ADSL. Key features of the Prestige include NAT, 802.1x wireless LAN security, WPA (Wi-Fi Protected Access) and Firewall.

  • Page 5: Hardware

    Prestige 660W/HW Series Compact Guide 2 Hardware 2.1 Rear Panel Connections Figure 1 P660HW Hardware Connections Table 1 Prestige Rear Panel Description LABEL Connect to a telephone jack using the included phone wire. LAN 1 to LAN 4 Connect to a computer/external hub using an Ethernet cable.

  • Page 6: The Front Panel Leds

    Prestige 660W/HW Series Compact Guide Table 1 Prestige Rear Panel Description LABEL RESET You only need to use this button if you’ve forgotten the Prestige’s password. It returns the Prestige to the factory defaults (password is 1234, LAN IP address 192.168.1.1 etc.; see your User’s Guide for details).
  • Page 7 Prestige 660W/HW Series Compact Guide Table 2 P660HW Front Panel LED Description COLOR STATUS LAN 1 to LAN 4 Green Blinking Amber Blinking WLAN Green Blinking DSL/PPP Green Fast Blinking Slow Blinking Amber Blinking DESCRIPTION The system is not ready or has malfunctioned.
  • Page 8 Prestige 660W/HW Series Compact Guide Figure 3 P660W Front Panel Refer to the following table for more detailed LED descriptions. Table 3 P660W Front Panel LED Description COLOR STATUS Green Green Blinking Green Blinking DESCRIPTION The Prestige is receiving power.
  • Page 9 Prestige 660W/HW Series Compact Guide Table 3 P660W Front Panel LED Description COLOR STATUS PPP/ACT Green Blinking Amber Blinking WLAN Green Blinking 10M/100M Green Blinking Amber Blinking DESCRIPTION The Prestige is sending/receiving non-PPP data. The Prestige has a PPP (PPPoA or PPPoE) connection.

  • Page 10: Internet Access With Zero Configuration

    Prestige 660W/HW Series Compact Guide 3 Internet Access With Zero Configuration With the Prestige’s Zero Configuration, you can access the Internet easily. Simply connect a computer to the Prestige and access the Internet without changing the network settings (such as the IP address and subnet mask) of the computer.

  • Page 11: Setting Up Your Computer's Ip Address

    Prestige 660W/HW Series Compact Guide 4 Setting Up Your Computer’s IP Address Skip this section if your computer is already set up to accept a dynamic IP address. This is the default for most new computers. The Prestige is already set up to assign your computer an IP address. Use this section to set up your computer to receive an IP address or assign it a static IP address in the 192.168.1.2 to 192.168.1.254 range with a subnet mask of 255.255.255.0.
  • Page 12 Prestige 660W/HW Series Compact Guide In the Network window Configuration tab, select your network adapter's TCP/IP entry and click Properties. Click the IP Address tab. -If your IP address is dynamic, select Obtain an IP address automatically. -If you have a static IP address, select...
  • Page 13 Prestige 660W/HW Series Compact Guide Click the DNS Configuration tab. -If you do not know your DNS information, select Disable DNS. -If you know your DNS information, select Enable DNS and type the information in the fields below (you may not need to fill them all in).

  • Page 14: Verifying Your Computer's Ip Address

    Prestige 660W/HW Series Compact Guide Click OK to close the Network window. Insert the Windows CD if prompted. Turn on your Prestige and restart your computer when prompted. Verifying Your Computer’s IP Address Click Start and then Run. In the Run window, type "winipcfg" and then click OK to open the IP Configuration window.

  • Page 15: Checking/Updating Your Computer's Ip Address

    Prestige 660W/HW Series Compact Guide Then enter your DNS server IP address(es) in the Preferred DNS server and/or Alternate DNS server fields. If you have more than two DNS servers, click Advanced, the DNS tab and then configure them using Add.
  • Page 16 Prestige 660W/HW Series Compact Guide C:\>ping 192.168.1.1 Pinging 192.168.1.1 with 32 bytes of data: Reply from 192.168.1.1: bytes=32 time=10ms TTL=254 Reply from 192.168.1.1: bytes=32 time<10ms TTL=254 Reply from 192.168.1.1: bytes=32 time<10ms TTL=254 Reply from 192.168.1.1: bytes=32 time<10ms TTL=254 Ping statistics for 192.168.1.1:...

  • Page 17: Configuring Your Prestige

    Prestige 660W/HW Series Compact Guide 5 Configuring Your Prestige This Compact Guide shows you how to use the web configurator only. See your User’s Guide for background information on all Prestige features and SMT (System Management Terminal) configuration. 5.1 Accessing Your Prestige Via Web Configurator Step 1.

  • Page 18: Common Screen Command Buttons

    Prestige 660W/HW Series Compact Guide Click a link under Maintenance to see Prestige performance statistics, upload firmware and back up, restore or upload a configuration file. Click Logout in the navigation panel when you have finished a Prestige management session.

  • Page 19: Internet Access Using The Wizard

    Prestige 660W/HW Series Compact Guide 5.3 Internet Access Using the Wizard Use the Wizard Setup screens to configure your system for Internet access settings and fill in the fields with the information in the Internet Account Information table. Your ISP may have already configured some of the fields in the wizard screens for you.
  • Page 20 Prestige 660W/HW Series Compact Guide Figure 8 Internet Connection with PPPoE Select Nailed-Up Connection when you want your connection up all the time. The Prestige will try to bring up the connection automatically if it is disconnected From the Network Address Translation drop-down list box, select SUA Only, Full Feature or None.
  • Page 21 Prestige 660W/HW Series Compact Guide Figure 10 Internet Connection with ENET ENCAP Figure 11 Internet Connection with PPPoA In the ENET ENCAP Gateway field, enter the gateway IP address given by your ISP. Refer to Figure 8 for other field...
  • Page 22 Prestige 660W/HW Series Compact Guide Step 3. Verify the settings in the screen shown next. To change the LAN information on the Prestige, click Change LAN Configurations. Otherwise click Save Settings to save the configuration and skip the following step.
  • Page 23 Prestige 660W/HW Series Compact Guide Figure 13 Wizard: LAN Configuration From the DHCP Server drop-down list box, select On to allow your Prestige to assign IP addresses, an IP default gateway and DNS servers to computer systems that support the DHCP client.

  • Page 24: Test Your Internet Connection

    Prestige 660W/HW Series Compact Guide Figure 14 Wizard Screen 4 5.4 Test Your Internet Connection Launch your web browser and navigate to www.zyxel.com. Internet access is just the beginning. Refer to the User’s Guide for more detailed information on the complete range of Prestige features.

  • Page 25: Advanced Configuration

    Prestige 660W/HW Series Compact Guide 6 Advanced Configuration This section shows how to configure some of the advanced features of the Prestige. 6.1 Wireless LAN Setup A wireless LAN (WLAN) provides a flexible data communications system that you can use to access various services (the Internet, email, printer services, etc.) on the wired network without additional expensive network cabling infrastructure.
  • Page 26 Prestige 660W/HW Series Compact Guide The following table describes the fields in this screen. Table 4 Wireless LAN: Wireless LABEL Enable The wireless LAN is turned off by default, before you enable the Wireless LAN wireless LAN you should configure some security by setting MAC filters and/or 802.1x security;...

  • Page 27: Wireless Lan Security Setup

    Prestige 660W/HW Series Compact Guide Table 4 Wireless LAN: Wireless LABEL Key 1 to Key 4 The WEP keys are used to encrypt data. Both the Prestige and the wireless clients must use the same WEP key for data transmission.
  • Page 28 Prestige 660W/HW Series Compact Guide Figure 16 Wireless LAN: MAC Address Filter The following table describes the fields in this screen. Table 5 Wireless LAN: MAC Address Filter LABEL Active Select Yes from the drop down list box to enable MAC address filtering.

  • Page 29: 802.1X And Wpa Overview

    Prestige 660W/HW Series Compact Guide not listed will be denied access to the router. Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless Address station that are allowed or denied access to the Prestige in these address fields. 6.3 802.1x and WPA Overview Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i security specification...

  • Page 30: Configuring Sua Server

    Prestige 660W/HW Series Compact Guide Many-to-One: Many-to-One mode maps multiple local IP addresses to one global IP address. Many-to-Many Overload: Many-to-Many Overload mode maps multiple local IP addresses to shared global IP addresses. Many-to-Many No Overload: Many-to-Many No Overload mode maps each local IP address to unique global IP addresses.
  • Page 31 Prestige 660W/HW Series Compact Guide Figure 18 SUA/NAT Server The following table describes the labels in this screen. Table 6 SUA/NAT Server LABEL Start Port Type a port number in this field. To forward only one port, type the port number again in the End Port field.

  • Page 32: Firewall Overview

    Prestige 660W/HW Series Compact Guide 6.6 Firewall Overview The Prestige firewall is a stateful inspection firewall and is designed to protect against Denial of Service attacks when activated. The Prestige’s purpose is to allow a private Local Area Network (LAN) to be securely connected to the Internet. The Prestige can be used to prevent theft, destruction and modification of data, as well as log events, which may be important to the security of your network.

  • Page 33: Enabling The Firewall

    Prestige 660W/HW Series Compact Guide 6.7 Enabling the Firewall From the main screen, click Advanced Setup, Firewall and then Config to open the Configuration screen. Enable (or activate) the firewall by selecting the Enable Firewall check box as seen in the following screen.
  • Page 34 Prestige 660W/HW Series Compact Guide Figure 21 Rule Summary The following table describes the labels in this screen. Table 7 Rule Summary LABEL The default Should packets that do not match the following rules be blocked or action for forwarded? Make your choice from the drop down list box. Note that packets not “block”...
  • Page 35 Prestige 660W/HW Series Compact Guide Table 7 Rule Summary LABEL The following read-only fields summarize the rules you have created that apply to traffic traveling in the selected packet direction. The firewall rules that you configure (summarized below) take priority over the general firewall action settings above.
  • Page 36 Prestige 660W/HW Series Compact Guide Available Service buttons. For a comprehensive list of port numbers and services, visit the IANA (Internet Assigned Number Authority) web site. Step 3. Configure the Source Address and Destination Address for the rule. Figure 22 Creating/Editing A Firewall Rule...

  • Page 37: Configuring Source And Destination Addresses

    Prestige 660W/HW Series Compact Guide Table 8 Creating/Editing A Firewall Rule LABEL Source Address Click SrcAdd to add a new address, SrcEdit to edit an existing one or SrcDelete to delete one. Please see the next section for more information on adding and editing source addresses.
  • Page 38 Prestige 660W/HW Series Compact Guide Figure 23 Adding/Editing Source and Destination Addresses The following table describes the labels in this screen. Table 9 Adding/Editing Source and Destination Addresses LABEL Address Type Do you want your rule to apply to packets with a particular (single) IP address, a range of IP addresses (e.g., 192.168.1.10 to...

  • Page 39: Troubleshooting

    Prestige 660W/HW Series Compact Guide 7 Troubleshooting Table 10 Troubleshooting PROBLEM None of the Make sure that you have the correct power adaptor connected to LEDs turn on the Prestige and plugged in to an appropriate power source. Check when you turn all cable connections.
  • Page 40 Prestige 660W/HW Series Compact Guide...
