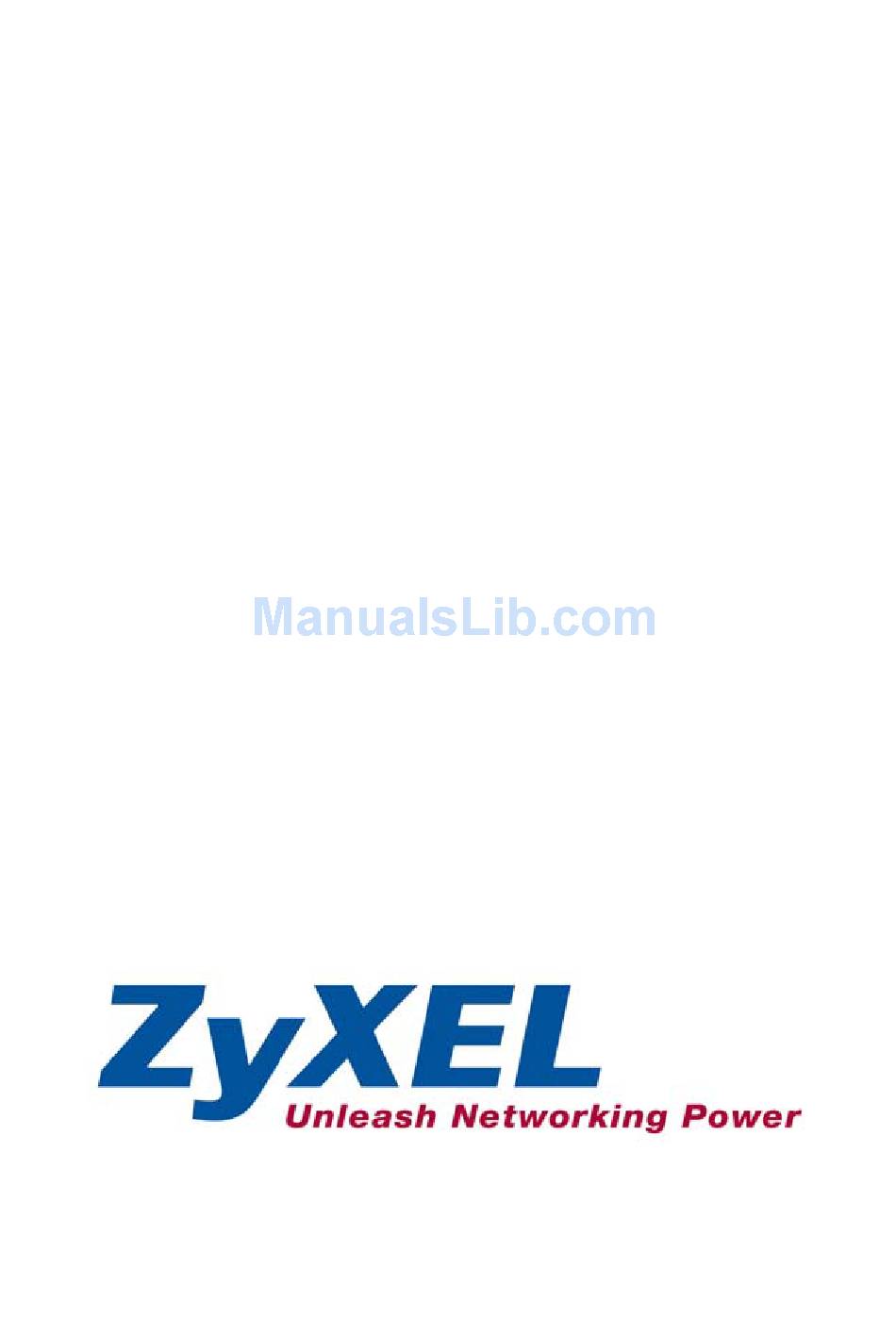

Page 1: Quick Start Guide
Prestige 660RU Series ADSL2+ Ethernet/USB Gateway Quick Start Guide Version 3.40 01/2005... -
Page 2: Introducing The Prestige
Prestige 660RU Series Quick Start Guide Introducing the Prestige The Prestige 660RU ADSL2+ USB/Ethernet Gateway is the ideal all-in-one device for small networks connecting to the Internet via ADSL. Provided with both USB and Ethernet ports, computers can share local resources (such as printers and files) and access to the Internet - simultaneously. -
Page 3: Hardware Connections
Prestige 660RU Series Quick Start Guide Hardware Connections 1. Connect the Prestige to a telephone jack using a telephone wire. 2. Use an Ethernet cable to connect a computer to the LAN 10/100M port for initial configuration and/or Internet access. -
Page 4: Zero Configuration Internet Access
Prestige 660RU Series Quick Start Guide successful. The appropriate LAN and/or USB LEDs turn on if they are properly connected. See your User’s Guide for detailed LED descriptions. Zero Configuration Internet Access Once you connect and turn on the Prestige, it automatically detects the Internet connection settings from the ISP and makes the necessary configuration changes. -
Page 5: Installing The Usb Driver
Prestige 660RU Series Quick Start Guide If an Internet access parameter is changed, either restart the device to have the Prestige automatically reconfigure your Internet connection or change it manually in the Wizard screens of the web configurator (see your User’s Guide for details). - Page 6 Prestige 660RU Series Quick Start Guide A Welcome screen displays, click Next. Click Yes to agree to the license agreement.
- Page 7 Prestige 660RU Series Quick Start Guide When a Start Copying Files screen displays, click Next to continue. Windows 98 SE/Me: Select Yes, I want to restart my computer now. and click OK.
- Page 8 Prestige 660RU Series Quick Start Guide Windows 2000/XP: Connect the Prestige to the computer’s USB port when prompted. A window displays briefly, indicating that the system has found new hardware. Windows XP: If a warning window displays, click Continue Anyway.
-
Page 9: Verifying Your Usb Installation
Prestige 660RU Series Quick Start Guide Click Finish to complete the installation. Restart the computer if prompted. Windows 98 SE/Me: After the computer finishes restart, connect the square end of the USB cable to the back of your Prestige and connect the rectangular end of the USB 6cable to the back of your computer. -
Page 10: System Requirements
Prestige 660RU Series Quick Start Guide System Requirements • Macintosh operating system versions 10.1 and later • An available USB port Install the USB driver before you connect the Prestige to the Screen shots for Macintosh 10.3 are shown in the following procedure unless otherwise specified. - Page 11 Prestige 660RU Series Quick Start Guide Double-click P660RU-Tx.pkg to install the driver. A welcome screen appears. Click Continue. You will then see the Select a Destination screen, select a destination (this must be on an actual physical hard drive on the Macintosh, not a virtual drive) and click Continue.
- Page 12 Prestige 660RU Series Quick Start Guide Click Upgrade. You then see a screen telling you that you must restart the computer after the installation completes. Click Continue Installation. The driver will automatically install. Click Restart to reboot your computer and complete the...
-
Page 13: Troubleshooting
Prestige 660RU Series Quick Start Guide Troubleshooting PROBLEM The PWR/SYS Make sure the Prestige is connected to the correct power adaptor, LED is off. the power adaptor is connected to an adequate power supply and the Prestige power switch is turned on. - Page 14 Prestige 660RU Series Quick Start Guide PROBLEM The USB LED is Make sure the Prestige is turned on and connected to the USB port off or Windows on the computer. does not auto- Perform a hardware scan by clicking Start, Settings, Control detect the USB Panel and double-clicking Add/Remove Hardware.
