Replacing a Power Supply Assembly
Slide the cover off the rear of the server and set it aside.
3
There are static-sensitive electronics inside the server. Before you handle
Caution
any parts, make sure you are working at a static-controlled workstation and that
you are properly grounded.

Replacing a Power Supply Enclosure

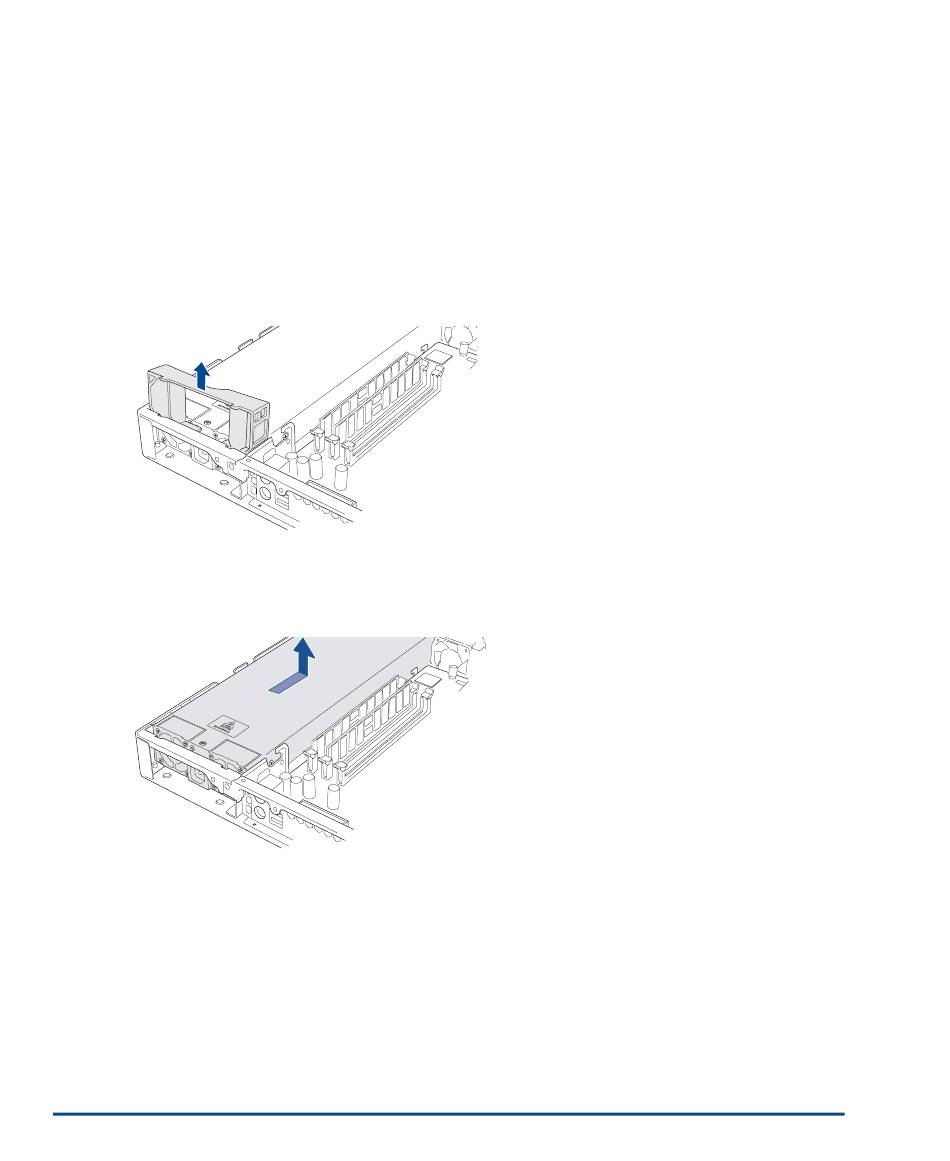

Remove the power supply clip.
1
Grasp the plastic clip with your index finger and lift it out of the server.
Remove the old power supply.
2
Grasp the top of the power supply and pull it toward the rear of the server. Lift
3
the power supply out of the server and set it aside.
Insert the new power supply
4
Insert the replacement power supply into the server chassis and slide it forward
into place.
2
