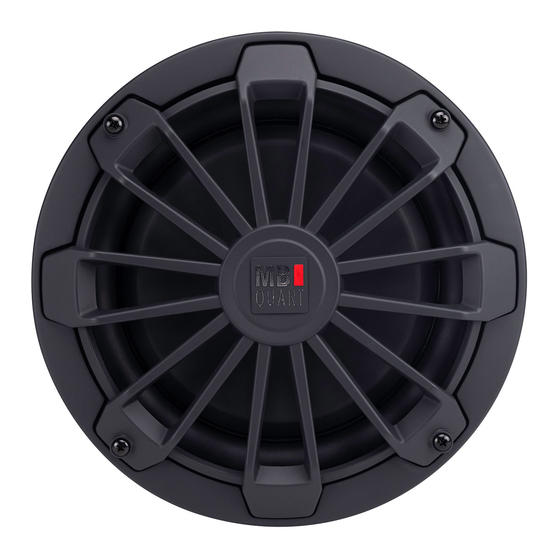

MB QUART NAUTIC NPW-254 Quick Start Installation Manual

Congratulations on your choice of a MBQuart Subwoofer.
This "Quick Start" Installation guide is meant to help
you complete a basic installation. For more detailed
information on system setting, speaker and subwoofer
configuration, and full specifications by model, visit our
website at mbquart.com
CAUTION
Always consider consulting a professional audio installer
before installing new speakers. Many manufacturers locate
speakers behind interior panels that require special tools to
remove. Be careful and take your time.
If you are using the speaker wire supplied with your new
speakers make sure that you run the speaker wires only
through safe areas. Do not let speaker wire make contact with
metal edges or hot engine components.

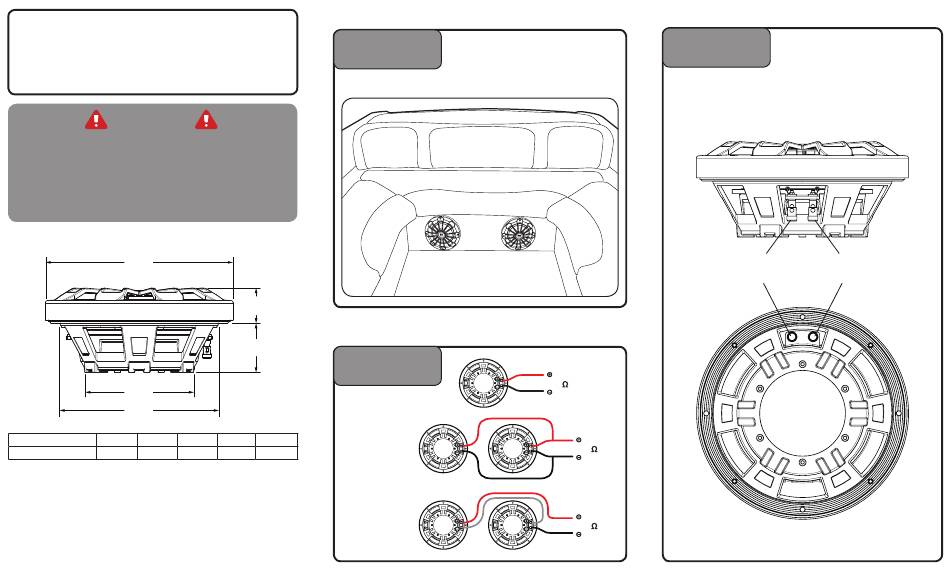

Woofer Dimensions

A
D
E
A B
10.79"(274) 2.91"(74) 1.97"(50)
NPW-254

Before you start

It's a good idea to confirm that you have purchased the
correct size speakers to fit your application. If you have any
reservations about being able to complete the installation
yourself, we recommend contacting a professional.

Woofer Mounting Location

Choose a suitable
mounting location
C

Wiring

B
Choose the proper
wiring configuration
C D E
6.65"(169) 9.09"(231)
If you are replacing an older or inferior woofer, the
location is chosen for you. Make sure the woofer
fits properly in the hole for the old woofer.
If you are creating your own new location, you
must be careful to verify that there is sufficient
depth to mount the woofer.
4
Ω
2
Ω
8
Ω
Wiring
Route signal wires
Carefully select a route for the audio signal
wires. If using existing speaker wires, confirm
that the wire is in good shape and not
shorted.
Audio Signal Audio Signal
Positive Negative
