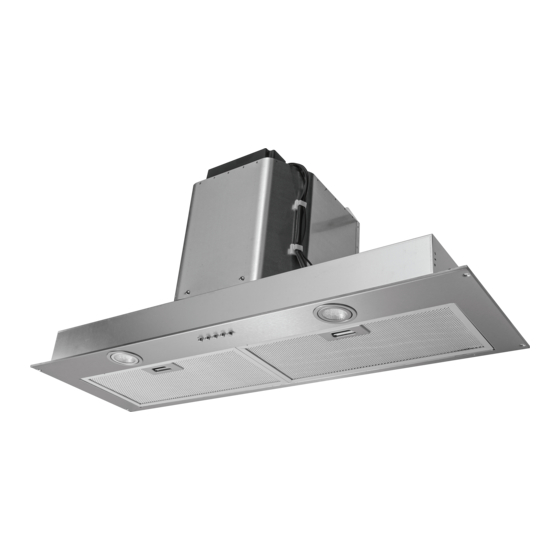

- Page 1 RANGE HOOD INSTRUCTION MANUAL Thank you for your purchase of this product. Please read the manual carefully before operating the appliance.
- Page 2 Installation Diagram...
-
Page 3: Table Of Contents
Contents Introduction………………………….1 Features……………………………...2 Installation………………………..2 Charcoal filter (Optional)………….4 How To Use…………………………..5 Lamp Change……………………..…6 Safety Information………………….7 Trouble Shooting………………..….8 Electrical Diagram……………..…..9 Specifications……………………….10 Cleaning & Maintenance………….11... -
Page 4: Introduction
Introduction 1.1 This appliance has been manufactured with materials and processes that respect the environment. We hope that you will continue this important consideration in the operation of this appliance & the disposal of the packaging materials, thank you. 1.2 The installation work must be undertaken by a qualified technician experienced in cooker hood installation. -
Page 5: Features
Features 2.1 This appliance is manufactured from top quality materials, and offers superb streamlined effects. 2.2 With high suction power and low noise, it is designed to remove cooking fumes from your kitchen quietly & effectively. Installation 3.1 The range hood should be mounted at a distance of 650- 750mm from the cooking surface for safety &... - Page 6 pic 2 pic 3 pic 4 pic 5 3.5 Ensure that the wall to be installed on is sufficiently sturdy to carry the weight of the hood. It should be mounted level for best performance (see illustration). 3.6 Do not connect to a common vent with other appliance such as gas heater, water heater, laundry dryer etc.
-
Page 7: Charcoal Filter (Optional)
Charcoal filter (Optional) The hood can be fitted with a charcoal filter which can make your kitchen cleaner. Step 1. Take out the charcoal filter from the package.(see pic 6) Step 2. Buckle the filter on the air cabinet and push it up. (see pic 7,8,9) Step 3. -
Page 8: How To Use
How To Use 3 Speed adjustment adjustment pic 11). 3 Speed adjustment pic 11). Push Stop button, and the motor will stop. ◆ Push the Low button, and the motor runs at low ◆ speed. Push the Mid button, and the motor runs at mid. ◆... -
Page 9: Lamp Change
Lamp Change 1.First turn off the power supply by unplugging from the wall socket. 2.Remove the filters from the appliance. 3.Unfasten the screws on the stainless steel hood panel. 4.Remove the stainless steel panel before changing the lamp (see pic 12 & 13). 5.Replace the lamp and then reinstall in the reverse manner. -
Page 10: Safety Information
Safety Information There must permanent & adequate ventilation of the room ◆ when operating the range hood with appliances burning gas or other fuels. Do not check the status of the filters when the range hood ◆ is operating, wait at least 30 minutes after switching off to avoid scalding. -
Page 11: Trouble Shooting
Trouble Shooting If any problem occurs, please detach the plug from the socket and contact the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. Problem Cause Solution Light on, but motor The outlet valve is blocked Detach flue and duct then does not work turn on the hood to check if... -
Page 12: Electrical Diagram
Electrical Diagram Mechanical Control Electronic Control... -
Page 13: Specifications
Specifications 600/900 Power Supply 220V~240V 50Hz Lighting Power 1.5W×2 20W×2 Motor Power 138W 288W Airflow 760m³/h 1200m³/h Outlet Diameter 150mm... -
Page 14: Cleaning & Maintenance
Cleaning & Maintenance Warning: Before cleaning, please ensure that the power is switched off by detaching the plug from the wall socket. 10.1 Clean the surface of hood every week with mild soap or detergent . Avoid solvents, acid, alkali, scouring pads or powders that could irreparably damage the stainless steel surface.
