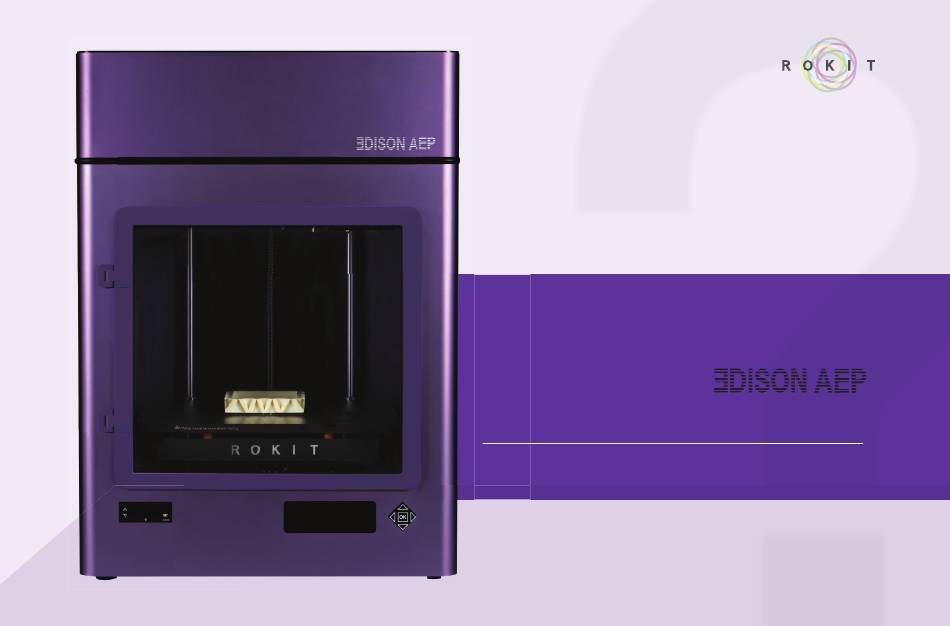

- Page 1 USER MANUAL This user manual is described in detail to help your first experience with 3DISON AEP. The manual will show you how to simply and easily use the printer. Please carefully read and follow the manual to fully utilize 3DISON AEP.
-
Page 2: Table Of Contents
Contents Safety Information Specifications Product Function What’ s in the Box Printer Overview How to use 3DISON AEP 1) Unpacking your 3DISON AEP 2) Filament Loading and Unloading 3) Leveling the Printing Bed 4) Display Menu Introduction 5) Start 3D Printing Maintenance Notice Product Warranty... -
Page 3: Safety Information
Safe Information WARNING 1. The 3DISON AEP generates high temperatures and includes moving parts that can cause injury. Thus, don’ t put your hands in the machine while printing. After the printing is completed, wait until the temperature inside the printer goes down. -
Page 4: Specifications
Specifications Printing Hardware Print Technology Fused Filament Fabrication (FFF) Extruder Dual Extruder System Maximum Build Size 12.7ℓ(260mmX200mmX245mm) Shaft Thickness X : 8mm, Y, Z : 12mm Printing Speed 25mm/sec ~ 1000mm/sec Belt/ Pulley 2GT Belt / Pulley (with Acceleration Mode) Hot-End(Nozzle) Size 0.4mm, 0.6mm Internal LED Lighting... -
Page 5: Product Function
Product Function About 3DISON AEP 3DISON AEP is desktop 3D printer based on Fused Filament Fabrication(FFF) method that the object is printed by three dimension. AEP is characterized by applicable filament and It can be applied not only PLA, ABS but also engineering plastic like ULTEM resin grade 9085 and PC. -
Page 6: What's In The Box
What’s in the Box Printer Body Hex Wrench SD Card 4GB SUS Hot End Filament Scraper 1.8mm Pin Tweezers Micro USB Cable 3D printer machine body. For assembling & Memory card for Spare parts of high The default providing For removing output For internal cleaning Cleaning tool for For connecting... -
Page 7: Printer Overview
Printer Overview Side View Back View Top View Heat-Bed Heat Controller LCD Display Arrows and OK Button Door Printing Bed Extruder Roof Case SD Card Slot USB 2.0 Ethernet Power Switch Power Socket Air Filter Front View... -
Page 8: How To Use 3Dison Aep
How to use 3DISON AEP Unpacking your 3DISON AEP Unpack the box and remove Remove styrofoam at coners. Put Open the door and remove the machine on a flat surface. styrofoam. (including Quick Guide protection styrofoam from Heat , Welcome Box) -Bed Crash-Cushion. -
Page 9: Filament Loading And Unloading
How to use 3DISON AEP Loading Filament Go to the LCD panel and select Select Load Right or Load Left When the extruder is completely Open the front door and check Utilities > Filament Loading. depending on which side you heated with alarm, put the if inserted filament is in, then want to load the filament. - Page 10 How to use 3DISON AEP Unloading Filament To remove the filament from When the extruder is completely Pull the filament out of the Press the OK button to stop the extruder, select Utilities > heated with alarm, move the extruder with the spring block unloading.
-
Page 11: Leveling The Printing Bed
How to use 3DISON AEP Leveling the Printing Bed Put a sheet of A4 paper onto Select Utilities > Standard When the nozzle lands on each Select Utilities > Auto Leveling the printing bed before manual Leveling on the display menu. position of the front, back, left setting. -
Page 12: Display Menu Introduction
How to use 3DISON AEP Display Menu Introduction There are 3 configuration items on the display menu; Print from SD, Preheat and Utilities. 1. Print from SD: To load a file from SD card. 2. Preheat: To preheat the Hot-End(Nozzle) and platform. Right Tool: By setting On/Off, you can start preheating of the right extruder. - Page 13 How to use 3DISON AEP Display Menu Introduction General Settings: To configure sound, LED color or etc. Home Axes: To default the position of X, Y, Z axis. Jog Mode: To manually control the location of the extruder and the Heat-Bed. Home Offsets: Control the center coordinate of Bed-Plate manually.
-
Page 14: Start 3D Printing
(Printer > Printer type color of SD card icon will change. (www.youniverse3d.com) to print or drag 3D image file to > EDISON AEP) and click the first Then click SD card button to save download STL or OBJ that you Creator K. -
Page 15: Maintenance
Maintenance ※ Cleaning Nozzle If Hot-End got stained with filament remains or foreign object, it will affect the quality of printing. Please remove filament remains or foreign object on the nozzle using wire brush & tweezer. Be careful not to scrub too much to prevent abrasion of the nozzle. (Gloves are essential for safety, caution for burn) ※... -
Page 16: Notice
(Temperature is ranged from 360 to 375. Temperature and speed are proportional so adjust temperature within a range from 5% to 10%) ※ You can download Create K program on ROKIT’s website for free. Additional user manual is also downloadable on the website. -
Page 17: Faq
Hardware What if the filament is not properly discharged? There are a few causes to prevent filaments from coming out well. One of the most common causes is when is clogged. When this happens, set the extruder temperature higher than 240℃ at [Utilities] > [Preheat Setting], and use [Preheat] function of display menu to melt the filaments accumulated inside the nozzle, whereby the nozzle can be unclogged. - Page 18 Is it possible to adjust the printing speed and temperature on the machine while printing? Yes. When pressing the OK button on the machine, you can adjust the printing speed and temperature while printing. Moreover, you can control the printing such as temporary pause the printing or cancellation. Is multi colored printing available with 3DISON AEP at one time? You can get the multi colored output by using the function ‘Pause/Unpause’...
- Page 19 Dedicated 3DISON’s software (Creator K) supports Window and Mac operating systems. These operating systems can be easily installed and used. Material Is it possible to use material purchased from other companies? We recommend to use Rokit’s certified filament to optimize output quality. You might not able to get After-Sales services if non genuine filament was used.
-
Page 20: Product Warranty
Types of Consumer Damage Within warranty period After warranty period The following are terms of Warranty applicable to Rokit products. Please contact the vendor If major repair is needed Product exchange or refund from whom you purchased the product in case of product failure. -
Page 21: Certification Mark
KC, CE, FCC Certification ※ KC: The KC(Korea Certification) signifies compliance with Korea’s product safety requirements for electrical and electronic equipment and components that utilise power. It is a legally compulsory certification mark that must appear on products as specified in related laws and ordinances. ※... - Page 22 Multiple Perfection 3D Printer DISON 3D PRINTER c ROKIT Inc. B-1106 Kabul Great Valley 60-5 Gasan-dong Geumcheon-gu Seoul Korea http://en.3disonprinter.com/ T. 02-867-0182 F. 02-865-0182 E-mail. 3dison@rokit.co.kr...
