SelectBlinds MOTION CM-01 Manual

Li-ion battery powered tube motors with pull operation
Hide thumbs
Table of Contents

Advertisement

Quick Links

M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR
D o N O T r e mo v e b a n d a r o u nd shade u nti l i ns ta lle d
M A N U A L C M - 01 /0 2
M A N U A L C M - 01 /0 2
Li-ion battery powered tube motors
with pull operation
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MOTION CM-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SelectBlinds MOTION CM-01

Summary of Contents for SelectBlinds MOTION CM-01

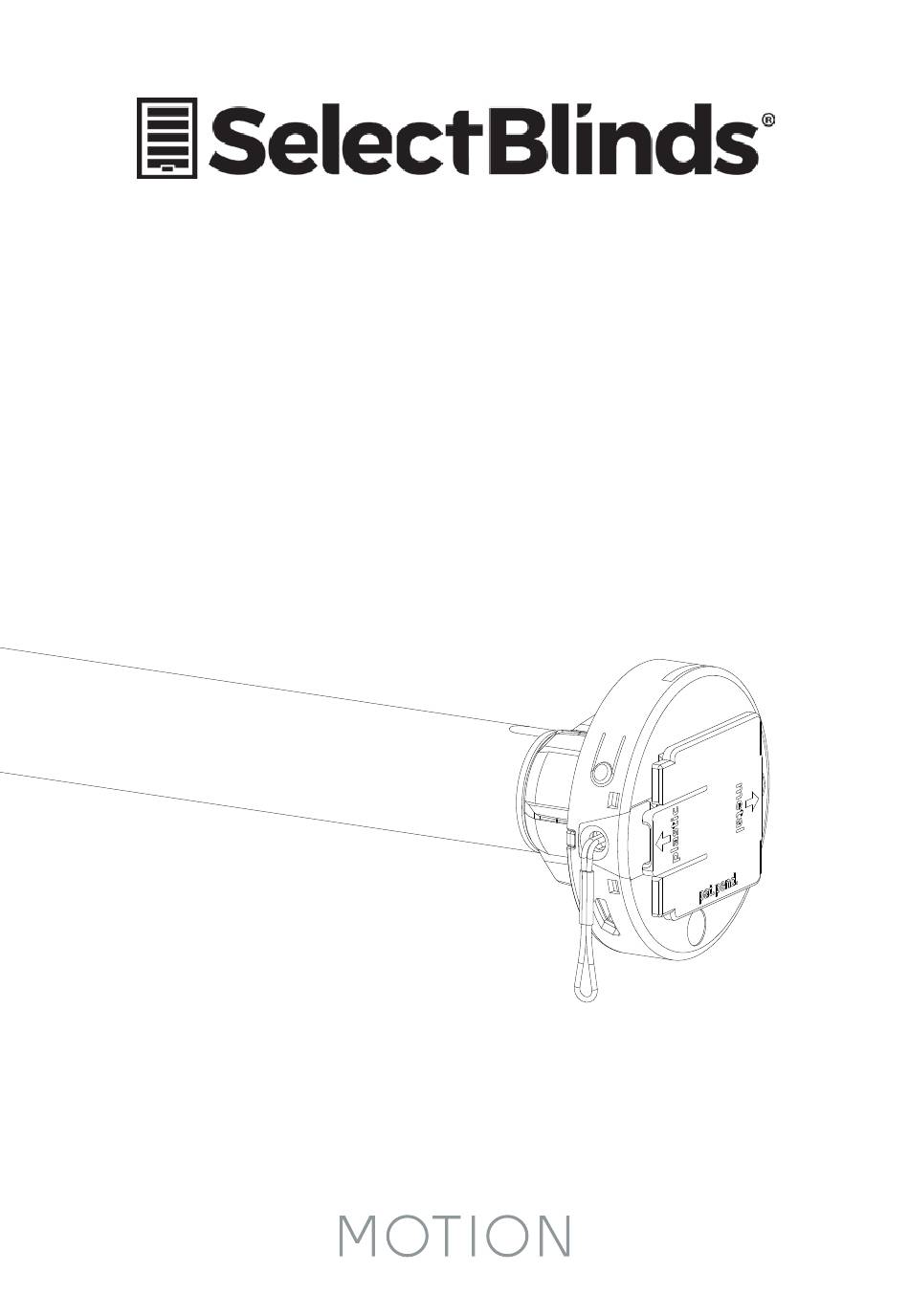

  • Page 1 M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR D o N O T r e mo v e b a n d a r o u nd shade u nti l i ns ta lle d M A N U A L C M - 01 /0 2 M A N U A L C M - 01 /0 2 Li-ion battery powered tube motors...
  • Page 2 MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R CM-01/02 Tube motor Li-ion battery powered tube motors with pull operation Motor features Happy programming Li-ion Battery USB Rechargeable Wireless Happy Programming Favourite Position Favorite position Integrated Rechargeable with...

  • Page 3: Warranty Service

    M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR WARNING Read the instructions carefully before assembling and using the product. Assembly can be completed by non- professionals.

  • Page 4: Important Safety Instructions

    MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R Important Safety instructions Important Installation instructions WARNING: To reduce the risk of severe injury or WARNING: Important safety instructions. Follow all death, it is important to follow these instructions for instructions, since incorrect installation can lead to personal safety.
  • Page 5 MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R Installing the blind Click! Click! Click! Charge to activate the motor Charge before first use. (See step 17) A green LED will flash. The motor can be used during charging.
  • Page 6 M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR Set bottom limit Pull and hold the chain until the blind has reached the bottom limit. If the blind moves in the opposite direction, release the chain and pull and hold again.
  • Page 7 MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R Save the position by pushing the button until the blind moves up and down. Operating the blind Pull the chain shortly to start or stop the blind. Optional: set favourite position Pull the chain shortly to start or stop the blind.
  • Page 8 M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR Pull and hold the chain for approximately 7 seconds until the blind moves up and down. Go to any position other than the saved favourite position.
  • Page 9 MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R Delete favourite position The favourite position can only be deleted when the blind is placed in the favourite position. Pull and hold the chain for approximately 7 seconds untill the blind moves up and down.

  • Page 10: Recharge Battery

    M O TI O N C M - 0 1 / 0 2 L I - I ON TUB ULA R MO TOR Recharge battery Blinking red during Blinking green; Continuously green; operation; battery is charging battery is fully charged Charge the battery Activate / deactivate the motor To prevent the blind from getting damaged, the motor has a transport...

  • Page 11: Frequently Asked Questions

    MOTI ON CM- 01 / 02 LI- ION TUB UL A R M OT O R Frequently Asked Questions Problem Cause Solution Motor is in transport mode. Activate the motor. See step 18. Motor is not responding. Motor battery is empty. Charge the motor.
  • Page 12 M A N U A L C M - 03 /0 5 Li-ion battery powered tube motors with pull and remote operation...
  • Page 13 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R CM-03/05 Li-ion battery powered tube motors with pull and remote operation Motor features Li-ion Battery USB Rechargeable Wireless Speed Control Bi-directional Integrated Rechargeable with Cable free Consistent Two-way...
  • Page 14 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR WARNING Read the instructions carefully before assembling and using the product. Assembly can be completed by non- professionals.
  • Page 15 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R Important Safety instructions Important Installation instructions WARNING: To reduce the risk of severe injury or WARNING: Important safety instructions. Follow all death, it is important to follow these instructions for instructions, since incorrect installation can lead to personal safety.

  • Page 16: Fcc Radio Frequency Interference Statement

    M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR FCC Manual their own expense. This device complies with Part 15 of the FCC Rules. If this equipment does cause harmful interference Operation is subject to the following two conditions: to radio or television reception, which can be (1) this device may not cause harmful interference,...
  • Page 17 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Channels Wall Program Single Channel Max. mount blinds select select blinds CM-11 ■ ■ unlimited Hand-held remote CM-12 ■...
  • Page 18 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Max. Frequency Range Power supply Length Width Height Certificates scenes 30 m with 433 MHz CR2430 3.0V 120 mm 45 mm 14 mm...
  • Page 19 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R CM-11 CM-12 1 Channel Remote 5 Channel Remote Channel Channel indicator indicator Centre Centre (stop/favourite) (stop/favourite) Right Left Down Down Channel Selection Pair Pair button button...
  • Page 20 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR CM-13 CM-17 15 Channel Remote 4 Channel Table Remote Channel indicator Centre Channel 1 (stop/favourite) Channel 3 Right Left Centre...
  • Page 21 M OT I O N C M - 0 3/ 0 5 L I- I ON TUBU LAR MO T OR CM-15 CM-16 1 Channel Wall Remote 4 Channel Wall Remote Down Centre Centre (stop/favourite) (stop/favourite) Left Right Down Pair button Pair button...
  • Page 22 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR CM-18 CM-20 1 Channel Tassel Remote Motion Bridge Pair button See manual CM-20...
  • Page 23 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R Install the blind Click! Click! Click! Activate the motor Activate the motor by charging it with a micro USB cable. A green LED will start flashing. The motor can be used during charging.
  • Page 24 M OTI ON CM - 0 3 / 0 5 L I - I ON TUB ULA R MOT OR Pair a remote Pair a remote control that is able to program blinds. See pages 4 and 5 for remote control details. In this manual, CM-12 is displayed. Shortly press the program button on the motor.
  • Page 25 M OTI ON CM -0 3 /0 5 L I-I ON TUB UL AR MO T O R Set bottom position Press and hold the down button until the blind reaches the desired bottom position. WARNING: risk of damage. Down Slowly approach the bottom position.
  • Page 26 M OTI ON CM - 0 3 / 0 5 L I - IO N TU BU LAR MOT OR Set top position Press and hold the up button until the blind 10.1 reaches the desired top position. WARNING: risk of damage. Slowly approach the top position.
  • Page 27 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R Set favourite position (optional) Move the blind to a desired favourite position. 12.1 Centre Hold the centre button to save this Favourite 12.2 position. The blind shortly stops stepping indicating the favourite position has been saved.
  • Page 28 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Operate the blind Pull control: pull once to move the blind to the end positions. Pull again to stop the blind. Remote control: Choose the channel with which the blind has been paired using the channel button.
  • Page 29 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R Reset favourite position Move the blind to a desired favourite position. 16.1 Press the program button on the motor to activate 16.2 Centre program mode. The blind starts stepping. Hold the centre button to save this favourite position.

  • Page 30: Recharge The Battery

    M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Reset the blind It is possible to only delete end limits or to do a factory reset. Factory reset will delete the end limits and remove the connection to any paired remote.
  • Page 31 MOTI ON CM- 03 / 05 LI- ION TUB UL A R M OT O R Advanced options Manual control In case there is no remote control or pull control, the blind can be operated with the program button on the motor. Hold the program button to manually operate 20.1 the blind.
  • Page 32 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Single select 15 channel remote Single select makes it possible to activate program mode on a single blind through a remote control, without having to physically press the program button on the blind.
  • Page 33 MOTI ON CM - 03 / 05 LI- I ON T UB ULA R M OT O R Channel select 5 channel remote Channel select makes it possible to copy blinds in between channels/remotes without having to physically press the program button on the motors. Select the channel To activate 23.1...
  • Page 34 M O TI O N C M - 0 3 / 0 5 L I - I ON TUB ULA R MO TOR Activate / deactivate the motor To prevent the blind from getting damaged, the motor has a transport mode that makes sure the blind will not be activated before installation.
  • Page 35 M A N U A L C M - 2 0 MOTION Wi-Fi bridge 0 Motion Wi-Fi bridge 115x115.indd 1 18-10-18 16...
  • Page 36 The MOTION Wi-Fi bridge is the heart of your automated blinds network at home. The bridge unlocks endless possibilities to operate blinds with the MOTION app. Cloud connections with leading smart home applications enable voice control and a variety of smart automation options. Max.
  • Page 37 Reset button Set button Micro-USB 5VDC Data transfer Internet connectivity Power indicator 100mm 100mm (4 in) (4 in) 25mm 25mm (1 in) (1 in) 54mm 54mm (2.1 in) (2.1 in) 0 Motion Wi-Fi bridge 115x115.indd 3 18-10-18 16...
  • Page 38 FCC Manual I FCC ID: ZY4CM20 If this equipment does cause harmful interference to radio or television reception, which can be de- Regulatory Information termined by turning the equipment off and on, the user is encouraged to try to correct the interference 1 FCC Information for User by one or more of the following measures: Reorient or relocate the receiving antenna...
  • Page 39 Safety Service & Support WARNING: Important safety instructions. Follow all Do not perform repairs yourself. instructions, since incorrect installation can lead to Do not attempt to open the device or disassemble severe injury. it. You run the risk of electric shock and voiding the limited warranty.
  • Page 40 Download the app and create an account The MOTION Wi-Fi bridge needs to be set up with the MOTION Blinds app before installation on the wall or ceiling. Download the MOTION Blinds app from the App Store or Google Play with your smartphone or tablet.
  • Page 41 Power the bridge There is no charger included with this product. Any universal DC 5V 1A micro-USB charger can be used to power the MOTION bridge. LED indicators MOTION LED indicators Color Status Right Solid Red Bridge is powered on Center Blinking purple Bridge connecting mode...
  • Page 42 Connect the bridge to a Wi-Fi network An active internet connection is required to add the MOTION bridge to your home Wi-Fi network. Choose a location for the MOTION bridge in your home. Connect your smartphone or tablet to your home Wi-Fi network to check the strength of the Wi-Fi signal at this location.
  • Page 43 Choose ‘Edit’ at the Click on your location Press ‘Add Bridge’ and top right of your (MyHouse) to add the follow the installation screen and open MOTION bridge to this wizard to setup your ‘Settings’. location. bridge. The MOTION Blinds app allows to create 5 different locations.
  • Page 44 Make sure the Return to the MOTION Press and hold the MOTION bridge is Blinds app and enter ‘Set’ button on the the password of the powered ON. Open MOTION bridge the Wi-Fi settings of Wi-Fi network. until the LED your mobile device and on top of the connect to the Wi-Fi...
  • Page 45 Keep the MOTION Choose the MOTION_ The bridge Blinds app running XXXX network to automatically on the background, connect with the connects to your Wi-Fi while opening the bridge. Return to the network. The middle Wi-Fi settings of your MOTION Blinds app to LED on the bridge first mobile device.
  • Page 46 Add a blind Go back to the start Navigate to ‘Blind’ and Choose the blind type screen in the app and press the ‘+’ button and follow the setup open your location. to add a new blind. wizard. (Make sure your blind has a top and bottom position programmed.
  • Page 47 Before adding a blind to the MOTION bridge, the end positions of the blind must be programmed with a remote control. Program button on motor Pair button Shortly press the program button on the blind. (Please see the manual of your motor to see where the program button is located.) The blind will start stepping, indicating that program mode is activated.
  • Page 48 Roller/ Honeycomb/ Roman blind control Power indicator Edit blind Blind position Blind position Press to move the blind Press to move the blind Hold and slide to set the favorite position. Tap to move the blind to the favorite position Blind position Slide to move the blind to any position...
  • Page 49 Double roller control Power indicator Edit blind Blind position Blind position Press to move the blind Press to move the blind Hold and slide to set the favorite position. Tap to move the blind to the favorite Light control position Slide to control the stripes with high precision Blind position...
  • Page 50 Top-down/Bottom-up control Power indicator Edit blind Blind position Blind position Press to move the blind Press to move the blind Mid rail position Slide to move the mid rail Hold and slide to set the to any position favorite position. Tap to move the blind to the Hold and slide to set the favorite position...
  • Page 51 Venetian control Power indicator Edit blind Blind position Blind position Press to move the blind Press to move the blind Tilt control Tilt control Press to tilt Press to tilt Hold and slide to set the favorite position. Tap to move the blind to the favorite position Tilt control...

  • Page 52: Create A Room

    Add blinds to a room to control individual blinds or all Create a room blinds in a room at the same time. Shortly click on a room to see/control all the blinds in this room Position slider Target Position Add room Press the ‘+’...

  • Page 53: Create A Scene

    Scenes can be created to move your blinds to preset Create a scene positions. Edit scenes Swipe right to edit Swipe left to delete Play scene Add new scene 10. CREATE A SCENE 0 Motion Wi-Fi bridge 115x115.indd 19 18-10-18 16...
  • Page 54 Timers can be created to automate blinds and scenes Create a timer to make the home seem inhabited. Edit timers Swipe right to edit Swipe left to delete Turn on/off timer Add new timer 11. CREATE A TIMER 0 Motion Wi-Fi bridge 115x115.indd 20 18-10-18 16...
  • Page 55 Connect to third party The MOTION bridge allows to seamlessly connect motorised blinds to smart home applications. Scan the QR code below to discover the third party connections. Third party Discover third party connections for MOTION blinds rtube.nl/red1062 12. CONNECT TO THIRD PARTY 0 Motion Wi-Fi bridge 115x115.indd 21 18-10-18 16...

  • Page 56: Frequently Asked Questions

    Frequently Asked Questions Problem Cause Solution Charge the motor. See the manual of your Motor battery is empty motor Radio interference / shielding Make sure that the bridge/antenna of the motor is out of the way from metal objects Blind is not responding The distance from the bridge to Move the bridge closer to the blind the motor is too far...
