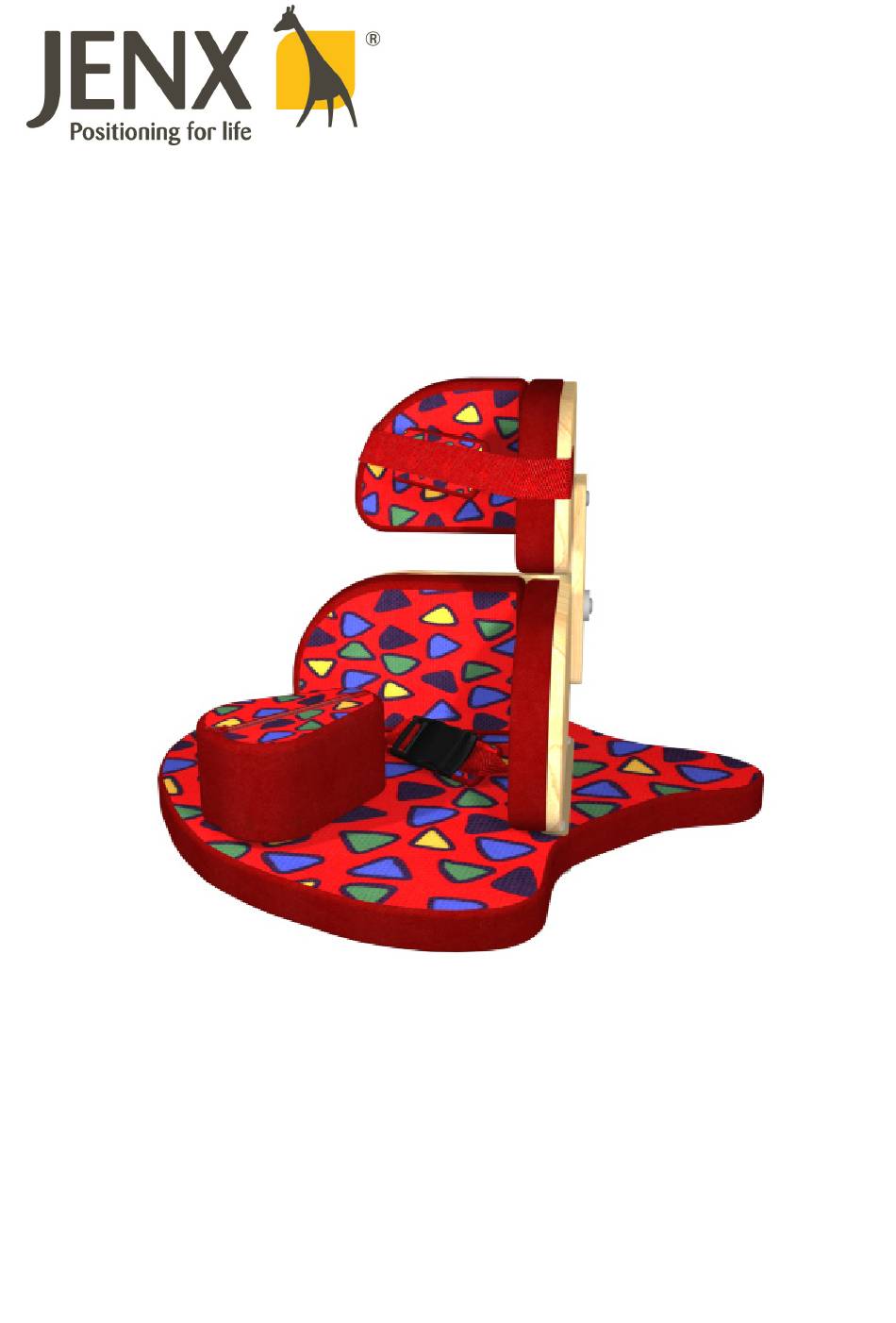

- Page 1 Flat Pack Corner Seat Rev04 July 2008 Assembly Instructions...
- Page 2 Corner Seat - Parts Base Assembly Qty: 1 Lower Backpad - Left Lower Backpad - Right Assembly Assembly Qty: 1 Qty: 1 Abduction Block Qty: 1...
- Page 3 Upper Backpad - Left Upper Backpad - Right Assembly Assembly Qty: 1 Qty: 1 Hip Strap Qty: 1 Height Adjuster Assembly Qty: 1 Chest Strap Qty: 1...
-
Page 4: Tools Required
Corner Seat - Component Identifier Barrel Nut D23 (Qty 8) = M6 x 12mm long Countersink Screw S66 (Qty 4) = M6 x 30mm long Flathead Assembly Screw S61 (Qty 2) = M6 x 20mm long S90 (Qty 3) =... - Page 5 Lower Backpad Assembly Assemble the Lower Back Pad assembly using units B and C (The larger two pads), and: 2 Barrel nuts (D23) 2 Countersink Screws (S66) Use a screwdriver to align the barrel nuts and tighten screws using the allen key provided.
- Page 6 Attach Hip Strap (H) to the Lower Backpad Assembly using the Velcro at each end of the strap.
- Page 7 Attach the Lower Backpad Assembly to the base (A) using: 4 Flathead Assembly screws (S92) 4 Barrel nuts (D23) 4 Steel washers (W33) 8 Plastic washers (W6) Assemble as shown below, aligning the barrel nuts with a screw driver.
- Page 8 Upper Backpad Assembly Next, assemble the Upper Backpad Assembly using units E and F, and: 2 Barrel nuts (D23) 2 Countersink screws (S66) Use a screwdriver to align the barrel nuts and tighten screws using the allen key provided.
- Page 9 Attach the Height Adjuster, G, to the Upper Backpad Assembly using: 2 Flathead assembly screws (S61) Tighten screws using the allen key provided.
- Page 10 Fix one side of the Step 5 assembly to the base assembly from Step 2 using: 1 Flathead assembly screw (S90) 1 Plastic Washer (W44) 1 Steel Washer (W33)
- Page 11 Repeat the previous step with the remaining side using: 1 Flathead assembly screw (S90) 1 Plastic Washer (W44) 1 Steel Washer (W33)
- Page 12 Finally, unzip the abduction block and attach to the base via the fixing hole as shown below, using: 1 Flathead assembly screw (S90) 1 Plastic Washer (W6)
- Page 13 Attach Chest Strap (I) to Upper Backpads using Velcro at each end of the strap.
- Page 14 JENX LIMITED, Wardsend Road, Sheffield, S6 1RQ, United Kingdom Tel:+44 (0)114 2853376 Fax: +44 (0)114 2853528 E-mail: sales@jenx.com Website: www.jenx.com...
