Concourse Smart Wheels Quick Start Manual

Remote pairing procedure

Hide thumbs Also See for Smart Wheels:

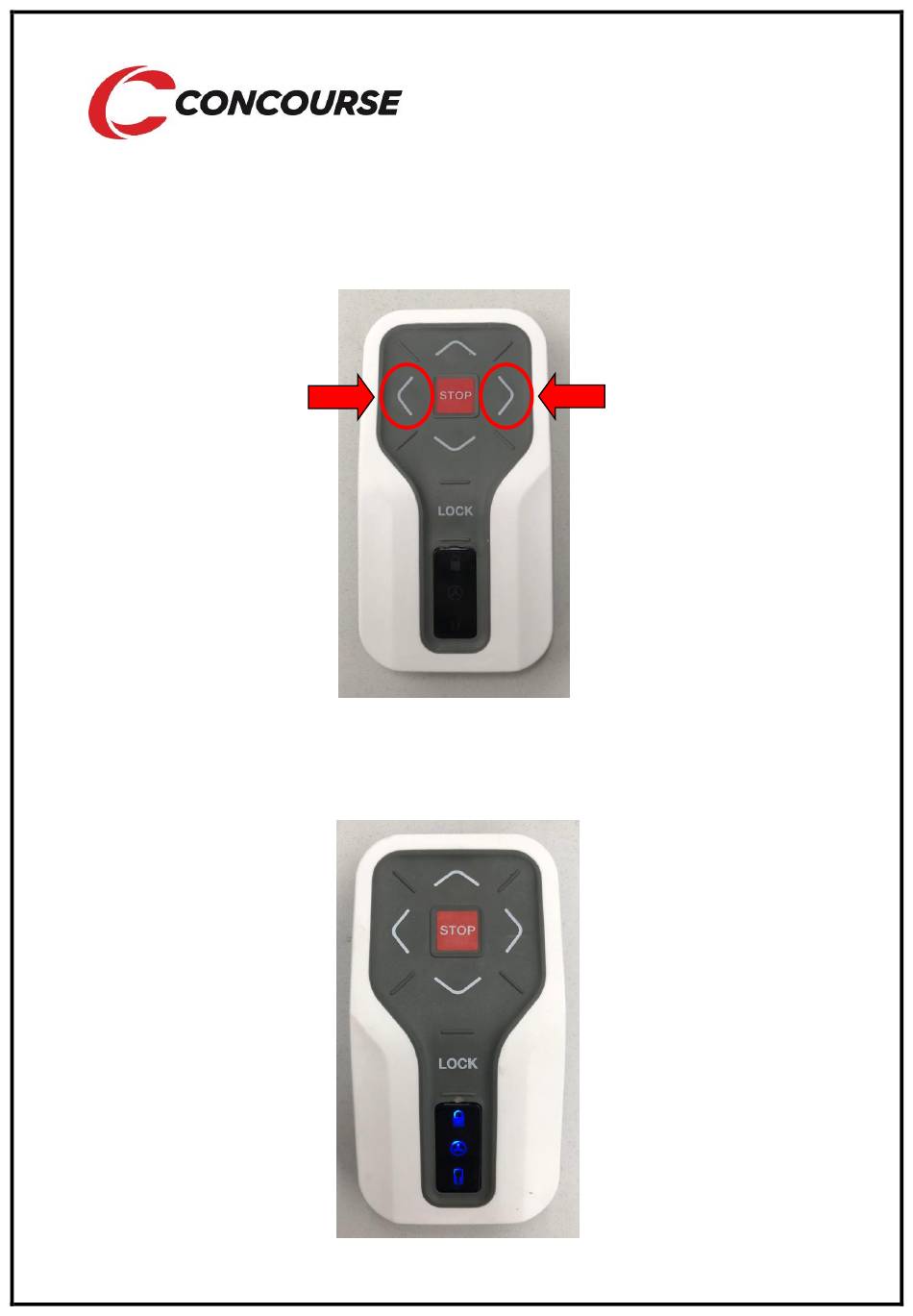

1. Ensure your wheels are off and in sleep mode

2. Put the remote into pairing mode:

a. Press and hold the LEFT and RIGHT buttons on the remote at the same time for at

least 10 seconds.

b. You should now see 3 solid blue LEDs on the remote. This indicates the remote is in

pairing mode. It will stay this way for 50 seconds.

Smart Wheels Remote Pairing Procedure

Table of Contents

Do you have a question about the Smart Wheels and is the answer not in the manual?

Page 1 Smart Wheels Remote Pairing Procedure 1. Ensure your wheels are off and in sleep mode 2. Put the remote into pairing mode: a. Press and hold the LEFT and RIGHT buttons on the remote at the same time for at least 10 seconds.
Page 2 3. Connect charger, wait for red light. 4. Disconnect charger, wait for light to extinguish. 5. With wheel lying flat on the table (either face-down or face-up), complete one full rotation of the wheel by hand. The easiest way to do this is to hold the tyre with one hand and use your finger in the charger port to rotate the inner wheel (as shown below)
Page 3 6. Connect charger, wait for red light. 7. Disconnect charger, wait for light to extinguish. 8. This wheel should now successfully be paired to the remote. There are some indicators that show that it has succeeded: a. On the wheel, the LED should go BLUE momentarily, followed by GREEN. b.
