enphase IQ Combiner+ Quick Install Manual page 2

INSTALLING ADDITIONAL BREAKERS
DANGER! Risk of electric shock. Always de-energize the Combiner before beginning any of the following procedures.
1 Remove the Door
A ) Open the enclosure door.
B ) If needed, remove the door: Pinch the top of the hinge rod using a needle-nosed pliers. Slide the door up and away to remove it. Set the door
aside for later reattachment.
2
Add Breakers as Needed
You can install 10A, 15A, or 20A breaker(s) in the IQ Combiner+ or the IQ Combiner 3:
• BRK-10A-2-240V
• BRK-15A-2-240V
• BRK-20A-2P-240V
The combiner includes one two-pole 10A circuit breaker that feeds the IQ Envoy and the AC outlet (if present). You can install additional breakers,
if needed. You must follow all NEC and local electrical codes. To install a breaker:
A ) Check that the IQ Combiner is de-energized.
B ) Flip the breaker to the off position.
C ) Loosen the screws on the deadfront and remove the deadfront.
D ) Remove a filler plate from the deadfront for each breaker position you will use. To remove the filler plate, press the single latch inward while
gently pushing the filler plate out.
E ) Install the breaker by rocking it to the left, catching the clips that hold it in place. Then rock the breaker to the right so it is fully seated and
secure.
F ) Wire the conductors to the circuit breaker(s) as specified on the combiner box wiring label.
G ) Tighten the breaker connections to 2.2 Nm (20 in-lb).
H ) Re-install the clear plastic deadfront, aligning the deadfront screws with the screw holes in the combiner. Start each screw, then go back and
fully tighten each of the screws.
I ) Position the deadfront, aligning the deadfront screws with the screw holes in the combiner. Start each screw, then go back and fully tighten
each of the screws.
J ) Flip the breaker to the on position.
3
Energize the Combiner
A ) Reinstall the Combiner door (if removed) and close it:
- Set the door back on the pins.
- Apply downward pressure until door snaps into place..
B ) Turn on the circuit feeding the combiner box.
All four IQ Envoy LEDs flash amber during boot up (approximately
three minutes). When boot up is complete, the Device Communi-
cations LED lights solid green if the microinverters have been
detected or amber if not.

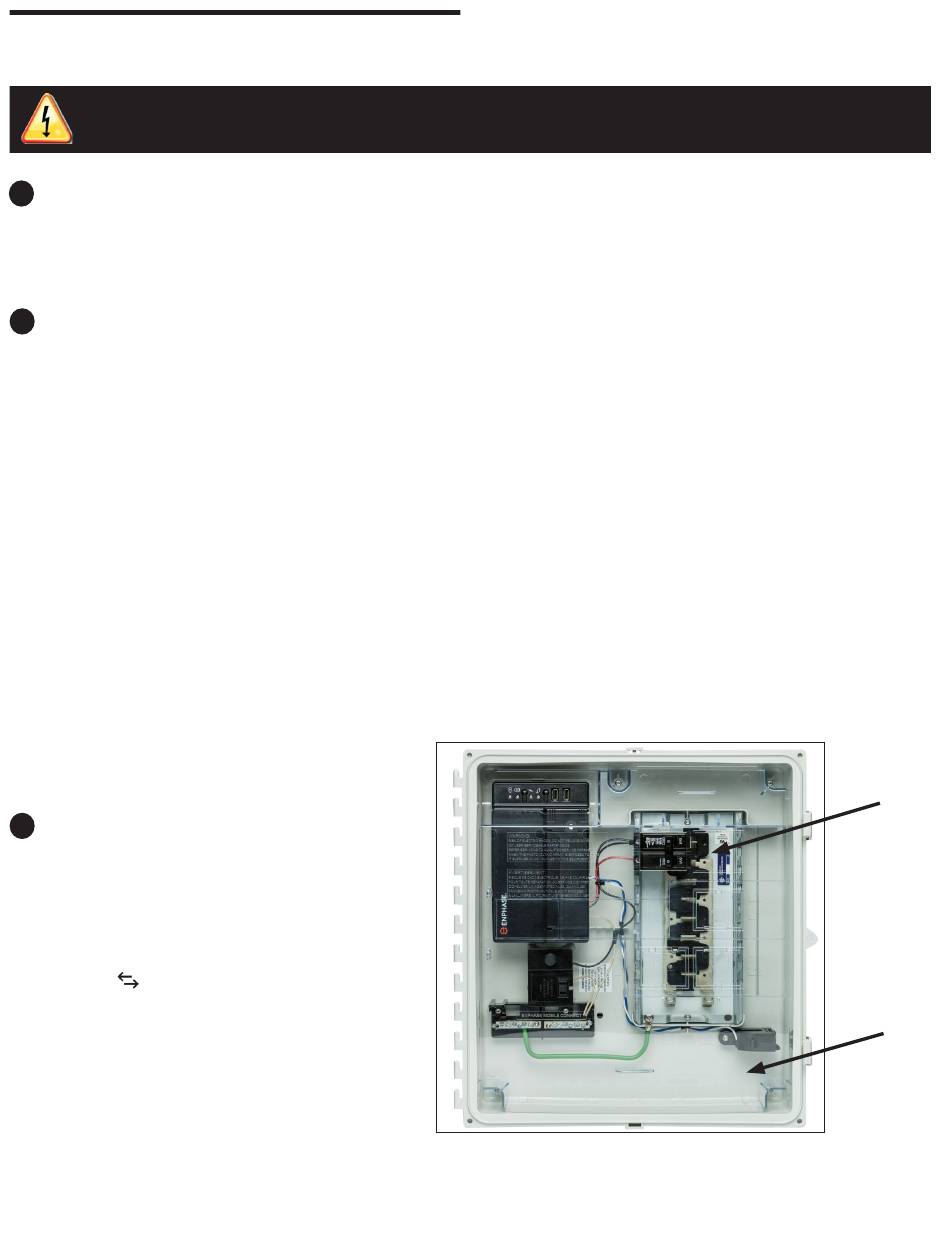

10A breaker
Plastic
deadfront
(the
deadfront on your
combiner may be
opaque).
