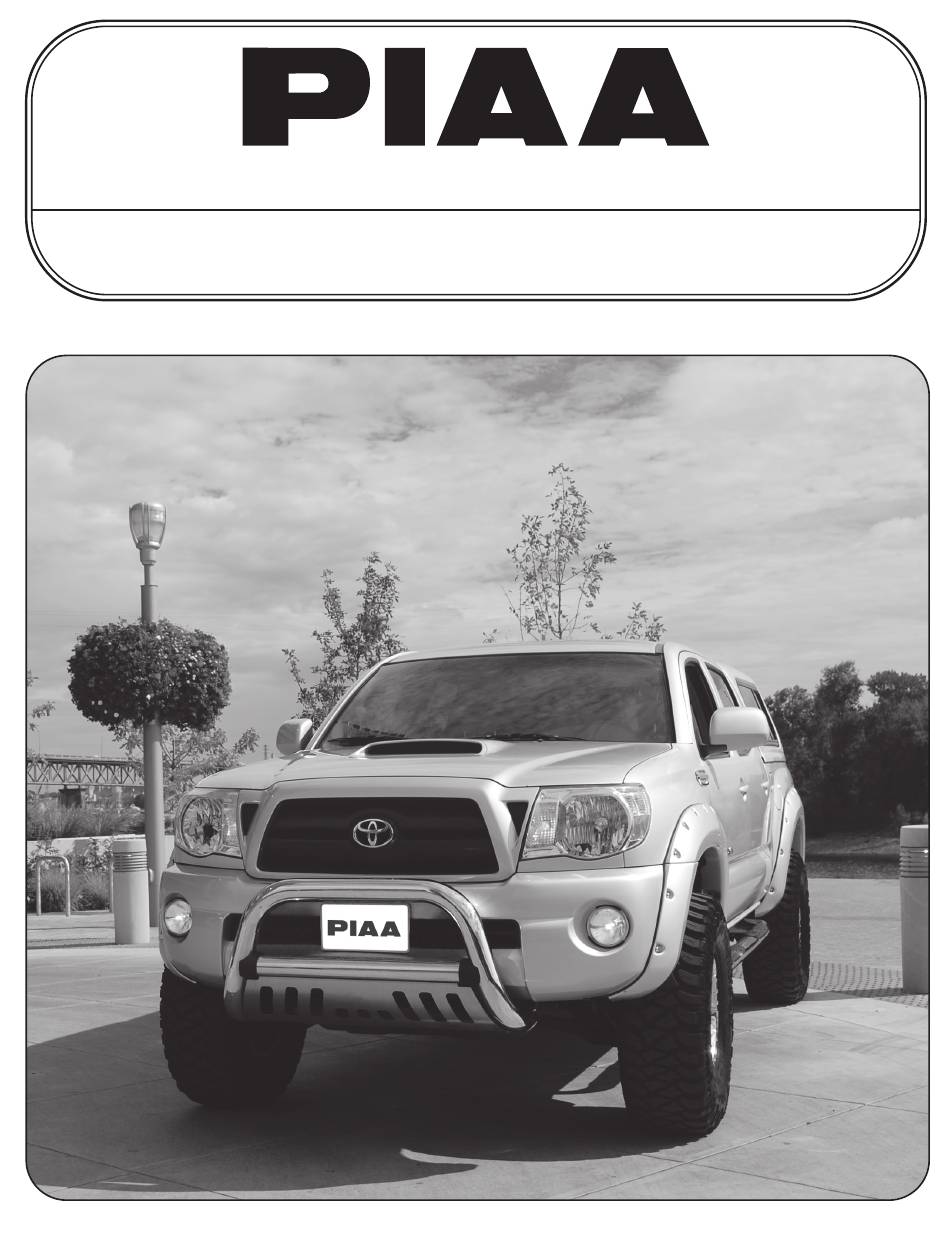

- Page 1 2005-2010 Toyota Tacoma 540 Driving Light Kit Thank you for purchasing PIAA product. Please read this entire manual carefully before installation. Keep this manual for reference after installation. 12.09...
- Page 2 CONTENTS A. 540 Driving Lens (2) B. Lamp Mounting Brackets (2) Wiring Harness With Relay and Fuse (1) Surface Mount Push Button Switch (1) HARDWARE 1. 5mmx.80x20 Hex Bolt (4) 2. 5mm Flat Washer (4) 3. #6 Class 202 Flat Washers (4) 4.
- Page 3 5. When the PIAA bracket is securely fastened use supplied wiring picture 2 diagram to properly wire your PIAA lamps. (see pages 4 and 5) 6. After wiring your PIAA lamps in, properly aim your lights. (see page 7) 7. Fasten lights securely after aiming. picture 3...
- Page 4 7. When the wiring is complete, test the system for operation. Do this by turning on the system. If the system works, securely fasten the relay box or tie it out of the way with wire ties. If the system does not come on, please contact your PIAA dealer.
- Page 5 WIRING DIAGRAM Battery Switch LED red=on / green=off Wires from fuse box and relay must be pointing down Switch Power PIAA Supplied Connector...
- Page 6 LAMP ASSEMBLY/DISASSEMBLY DIAGRAM...
- Page 7 DRIVING LIGHT AIMING Visual aim is made with the center of the beam hot spot 1.5 inches below the lamp center at 25 feet with the lamp facing straight forward. (see below.) Do not use driving lights into oncoming traffic. Driving lights should never be the only foreword light source.
- Page 8 PIAA product. PIAA reserves the right to change the design its products without any obligation to modify any previous product.
