Jung 20320 1S IPS R Operating Instructions

Power supply with IP interface
Power supply with IP interface
GB
Ref.-no.: 20320 1S IPS R
Operating instructions

1 Safety instructions

Electrical equipment may only be fitted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. During installation and cable routing, comply with the regulations and standards
which apply for SELV circuits.
These instructions are an integral part of the product and must remain with the end customer.

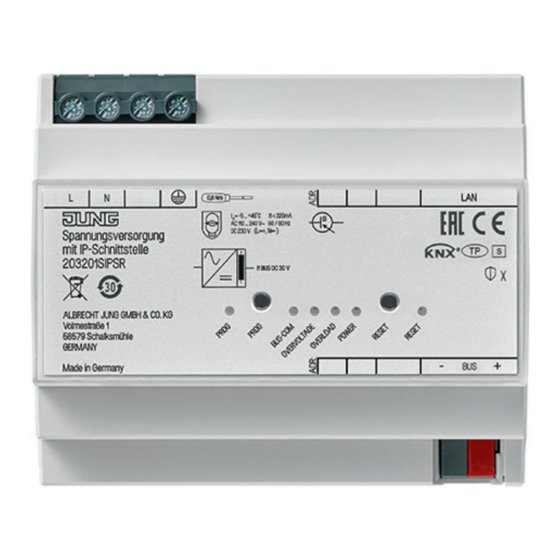

2 Device components

1 2
9 10
8 11
L N LAN
BUS
- +
7 6 5 4
3

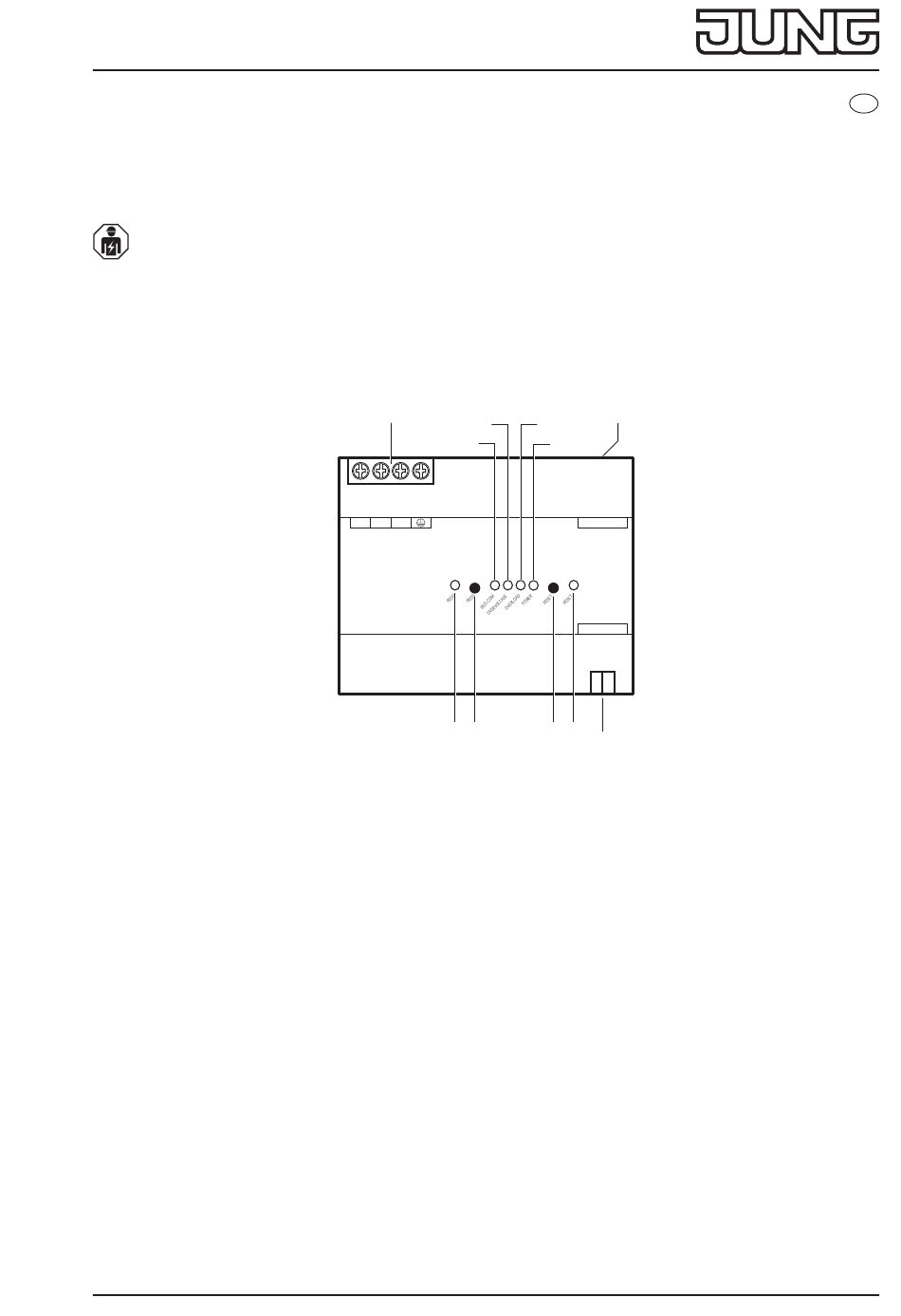

Fig. 1: Device components
(1) Mains connection
(2) LAN connection
(3) KNX connection
(4) RESET LED
(5) RESET button
(6) PROG button
(7) PROG LED
(8) BUS-COM LED
(9) OVERVOLTAGE LED
(10) OVERLOAD LED
(11) POWER LED

3 Function

System information
The device can be updated. Firmware can be easily updated.
The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building
automation and can be configured in the ETS project. Detailed specialist knowledge is required. A device certificate,
which is attached to the device, is required for safe commissioning. During mounting, the certificate must be removed
from the device and stored securely.
Planning, installation and commissioning of the device are carried out with the aid of the ETS, version 5.7 and above.
0024021601 1 / 4 02.04.2020
