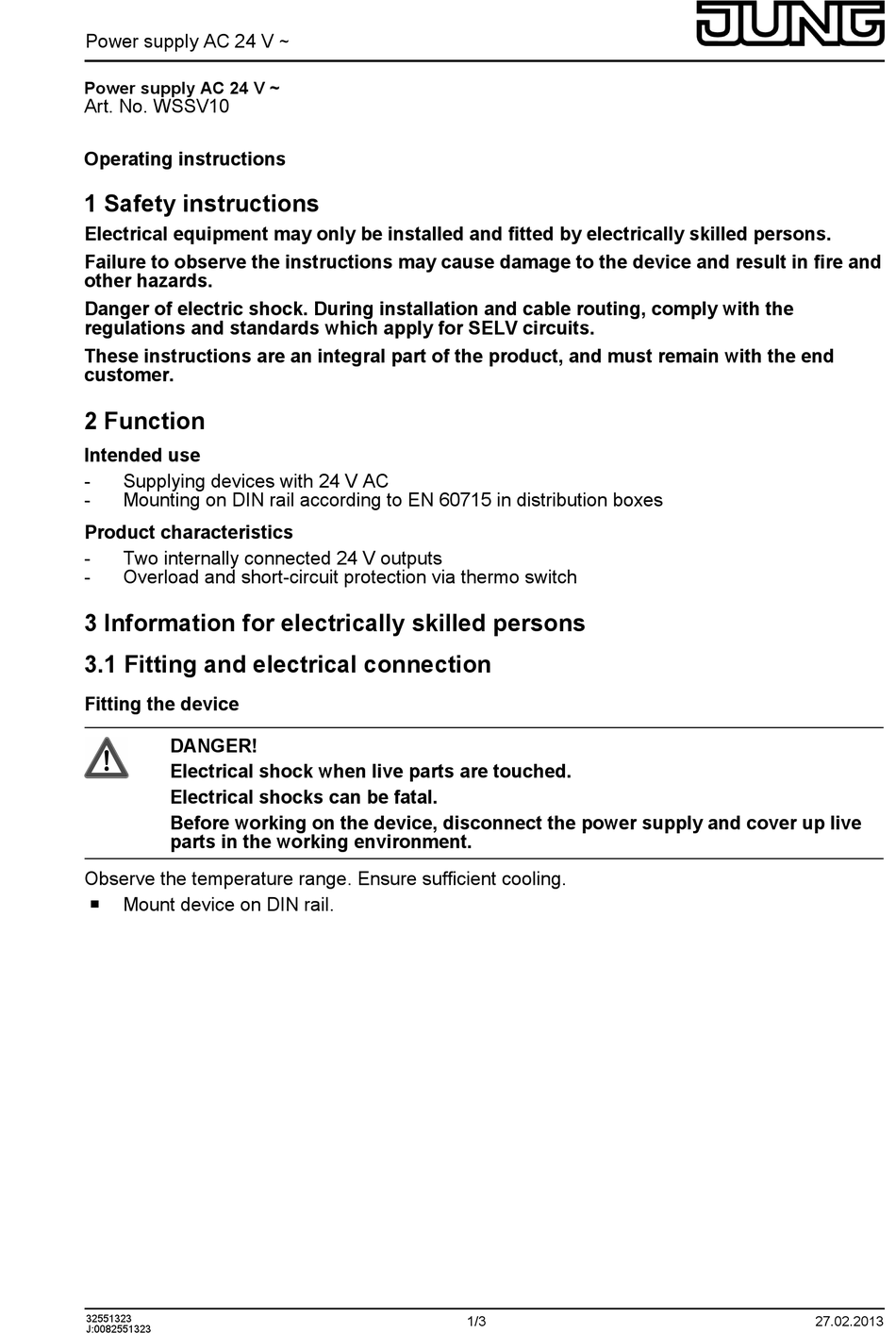

Jung WSSV10 Operating Instructions

Power supply AC 24 V ~
Power supply AC 24 V ~
Art. No. WSSV10
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Function
Intended use
- Supplying devices with 24 V AC
- Mounting on DIN rail according to EN 60715 in distribution boxes
Product characteristics
- Two internally connected 24 V outputs
- Overload and short-circuit protection via thermo switch
3 Information for electrically skilled persons
3.1 Fitting and electrical connection
Fitting the device
DANGER!
Electrical shock when live parts are touched.
Electrical shocks can be fatal.
Before working on the device, disconnect the power supply and cover up live
parts in the working environment.
Observe the temperature range. Ensure sufficient cooling.
o Mount device on DIN rail.
32551323
J:0082551323
1/3 27.02.2013
