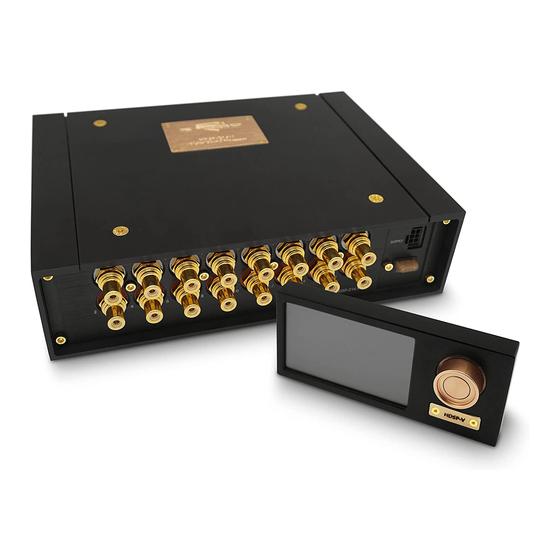

HDSP-V PAD-A
Quick Start Guide
About this Quick Start
This Quick Start Guide has been designed for installers and others experienced with Digtal Processing programs and functions.
If you are not such a person, we highly recommend you read the complete manual thuroughly before begining any actual GUI
functions. The complete User's Manual is available for download on the Zapco website (zapco.com/hdsp-5-support)
Advertisement
Table of Contents
Related Manuals for zapco HDSP-V PAD-A
Summary of Contents for zapco HDSP-V PAD-A
- Page 1 This Quick Start Guide has been designed for installers and others experienced with Digtal Processing programs and functions. If you are not such a person, we highly recommend you read the complete manual thuroughly before begining any actual GUI functions. The complete User’s Manual is available for download on the Zapco website (zapco.com/hdsp-5-support)
- Page 2 Wired Remote 10. LED Indicators for power and protection 12 13 The Output end is very straight forward with 8 (HDSP-Z16 V) or 4 (HDSP-Z8 V) pairs of Zapco’s proprietary Gold RCA Output connectors 1A power fuse 13. The processor’s electrical connections .
- Page 3 Main Input Controls There is a cover plate in the top of the HDSP processors held in place by screws. Under that plate are the main input controls. Each channel pair has a switch to choose for the main analog inputs. Main (RCA Level) OEM (Speaker Level) Above the level switches are the...
- Page 4 The Digital Control Program The HDSP Zapco processors are controlled by a PC using the Zapco Digital Control Program. Inside the zapco.com/hdsp-5-support page you will find user’s manual, software and firmware downloads, and update options. Click DCP Software v.### under Control Program (the version number will be the most current version).
- Page 5 File Menu The first time you open the program there are a couple of things you should do before you start working with the GUI. You will find these in the FILE menu. a. WiFi Management : The HDSP is shipped from the factory with WiFi disabled. If you want the convenience of wireless hook-up to your HDSP you need to open the WiFi page and activate the Wireless connection.
- Page 6 Main page where you can make fine adjustments during tuning. For more on I/O page setup see the HDSP user’s manual at zapco.com > Download > HDSP-V. Please see the Full Users Manual for instruction for using the I/O page to set up special functions such as creating an ambient rear fill by adding and subtracting inputs, creating a center channel with center only information, or creating a pair of 60-band equalizer channels for a wide range front stage.
- Page 7 Dash Board Control The Dashboard Remote provides control for the on-board HD Music Player, allows some limited audio controls for on-the -fly adjustments and also has information about the system status. The front page of the Dashboard shows the basic functions. The top row shows the active inputs available. The input classes are Player Radio/CD , and...
- Page 8 Apex, Aprilia ITALY - Since 1974 zapco.com...
