Sunnydaze Decor FC-73803 Assembly Instructions

3. Ensuring the pump is touching the bottom of the Basin Tier, Place the Bottom Column onto the Basin Tier
and twist to lock into place.
4. Place the Third Tier onto the Bottom Column and twist to lock in place.
5. Run both of the tubes that are attached to the Fountain Topper through the Top Tier, making sure the tubes
do not kink. Twist the topper onto the Top Tier to lock the pieces together.
6. Run both tubes through the Small Column and twist onto the Top Tier to lock into place. Continue running
the tubes through the Second Tier and twist to lock in place.
7. Feed both tubes through the Middle Column. Twist the middle column onto the Second Tier to lock in place.
The smaller tube is designed to hang freely (unattached) inside the fountain, within this section of
NOTE:
the fountain.
73803
Purchase Date: / /
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 888-881-4668, by email:
customerservice@nethealthshops.com, or via our contact us page at

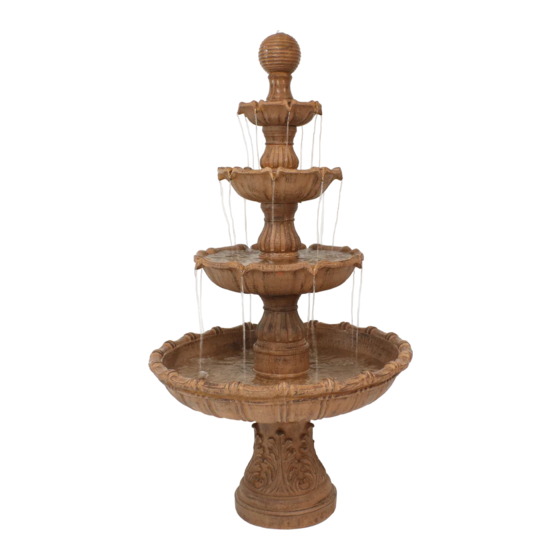

LARGE TIERED BALL
OUTDOOR FOUNTAIN
Read the assembly instructions carefully and follow the care instructions.
Keep these instructions for future reference.
Select a smooth, level surface to place the fountain.
Assemble components on a soft, clean surface to avoid scratching or damaging the finish.
Parts
Fountain Topper
Top Tier
Small Column
Second Tier
Middle Column
Third Tier
Bottom Column
Basin Tier
Pedestal
Electric Submersible Pump
EVA Stopple
Pump Access Cover
NOTE:
The water tubing is built into the fountain topper. Take care when handling the water tube;
detaching the water tube from the fountain will damage the fountain and void the product warranty.
ASSEMBLY
1. Place the Basin Tier onto the Pedestal and twist to lock into place.
2. Run the pump power cord through the tube in the Basin Tier and
pedestal. With the power cord in the middle of the EVA Stopple, push
the stopple into the top of the tube in the Basin Tier. Pull the power
cord out through the groove on the bottom of the pedestal.
06/2020
Order/Customer Reference Number:
FC-73803
Qty.
1
1
1
1
1
1
1
1
1
1
1
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
2-PERSON ASSEMBLY
RECOMMENDED
Page 1 / 2
