XYBIX SYSTEMS T2 Product Manual & Trouble Shooting Manual page 25

W E L C O M E TO Y O U R X Y B I X F U R N I T U R E
**PLEASE READ ALL INSTRUCTIONS BEFORE
BEGINNING RESET**
Reset Instructions
To reset Control Box
1. Turn off power to the power strip that the control boxes are plugged into (on or near the CPU cabinet, if
applicable) and keep off for 30 seconds. Turn back on. You can also just unplug the power cords from the
black leg box that plugs into the power strip, if you don't turn off the whole power strip at once. Keep
unplugged for 30 seconds and then plug back in.
2. Reset the control box by holding the DOWN button and the work surface will move down evenly to its
bottom. The hand control will show an error code of E01 while the table is resetting. If it was uneven, and
all the legs are moving, let the table keep going down until it reaches the lowest setting. All the legs
should be moving during the reset. Again, if a leg is not moving at all, STOP the reset by letting go of
the hand control.
3. When the work surface has reached its lowest height, keep holding down the DOWN button until the table
bounces back up an inch or less (this could take up to 15 seconds). After the table bounces back up, the
control box is reset and the work surface will move up and down evenly.
4. If nothing is happening when you try to reset, what do you hear? See troubleshooting chart on the next
page.
How to level an uneven table
If a table is uneven and one leg is not moving during the reset procedure, STOP PUSHING THE DOWN
BUTTON! You will need to contact Xybix Customer Service! However, you can get the table even with the
height of the non-moving leg while waiting for a technican - as long as the non-working leg is lower than
the working legs.

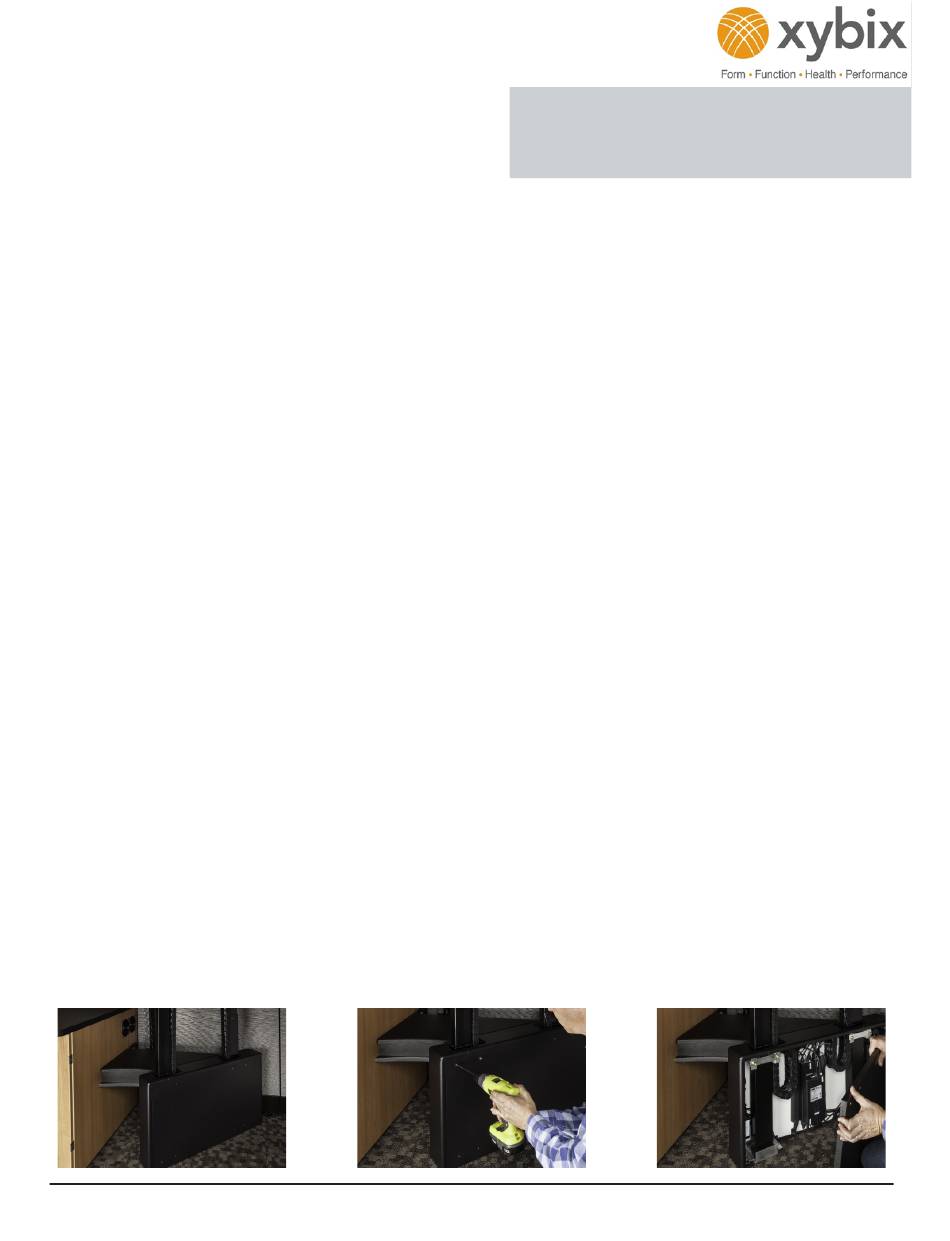

You will have to use the 4mm allen's wrench tool to open the table base case which is closest to the CPU
cabinet. Remove the screws from the top and then from the front of the box. The legs closest to the black box
will be in the control box ports labled 61R for the rear leg and 61F for the front leg. The legs furthest from the
black leg box will be labled 78R-78F or 84R/84F based on how long the cables are to those legs. You can then
unplug the non-working leg cable from the control box. The working leg cable(s) can be plugged into Port 1 of
the control box to move it or them down only to match the height of the non-working leg. Before closing up the
black leg box, make sure the small, metal leg clip is in place. This piece stabilizes the legs. Do no tighten each
bolt completely before tightening the next bolt - tighten all bolts a little and then go back and tighten completely.
