INSTALLATION INSTRUCTIONS

1. STOP! Ensure system design has been produced by Astral Pool Australia. This will ensure your system operates to
maximum potential.
2. It is advisable to have the distributor valve as close to the pool as possible to reduce pipe length. The valve should
be positioned at least 300mm above water level. Where the distributor needs to be installed below water level,
isolation valves must be connected onto each of the 7 branches plumbed into the bottom plate.
3. Astral Pool Australia recommend the use of a separate (or 2 pump) system for operating your infloor cleaning.
Twin suction points should be installed in the swimming pool at least 300mm off the floor and 800mm apart to
ensure the Net 'N' Clean system circulates clean water.
4. Nozzles should be placed according to the plan supplied by Astral Pool. This should include nozzles on the floor,
steps and benches within the pool.
5. When installing systems into concrete shell pools, Astral Pool reducing conduits (23665) should be used for each
nozzle.
6. Once all risers / conduits have been plumbed, blanking caps (supplied with conduits) should be glued into place.
The system should then be pressure tested to approx 100kPa and left under pressure to observe any degradation.
(This step should be performed before the pour of the concrete)

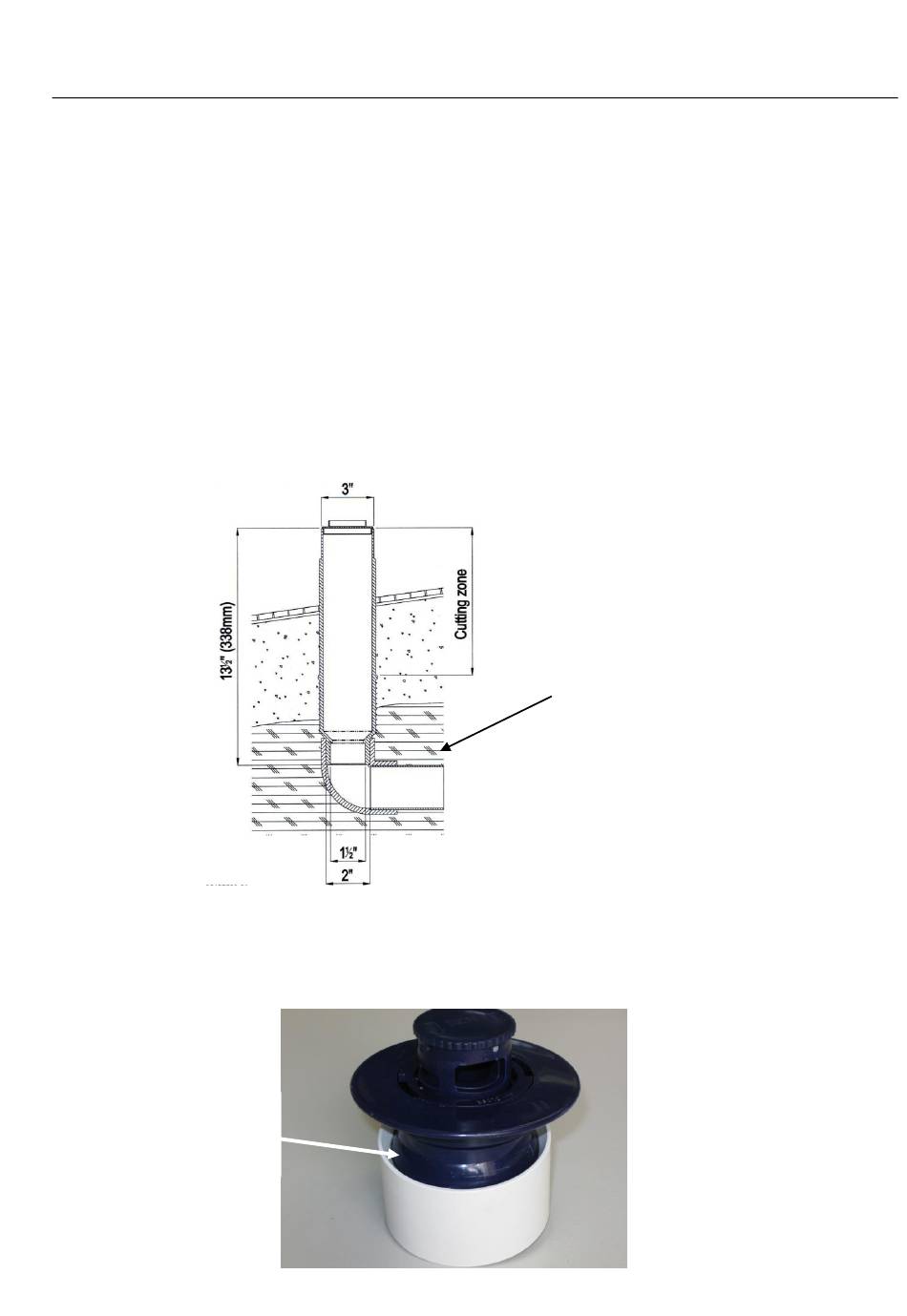

7. When using reducing conduits, ensure they are only cut within the designated "cutting zone" marked on to the
body of the conduit.
8. Once system has been tested, cut conduit (if being used) to the desired length for the pool finish. The nozzle body
can now be glued into place. Apply a generous amount of glue to the outside of the nozzle and also to the internal
knuckle joint.
Ensure generous amount of
glue is applied to this area
of the knuckle.
Net 'N' Clean In Floor Cleaning Systems v09-20
A minimum gravel layer of 50mm
should be used around the connection
to the riser for each nozzle
