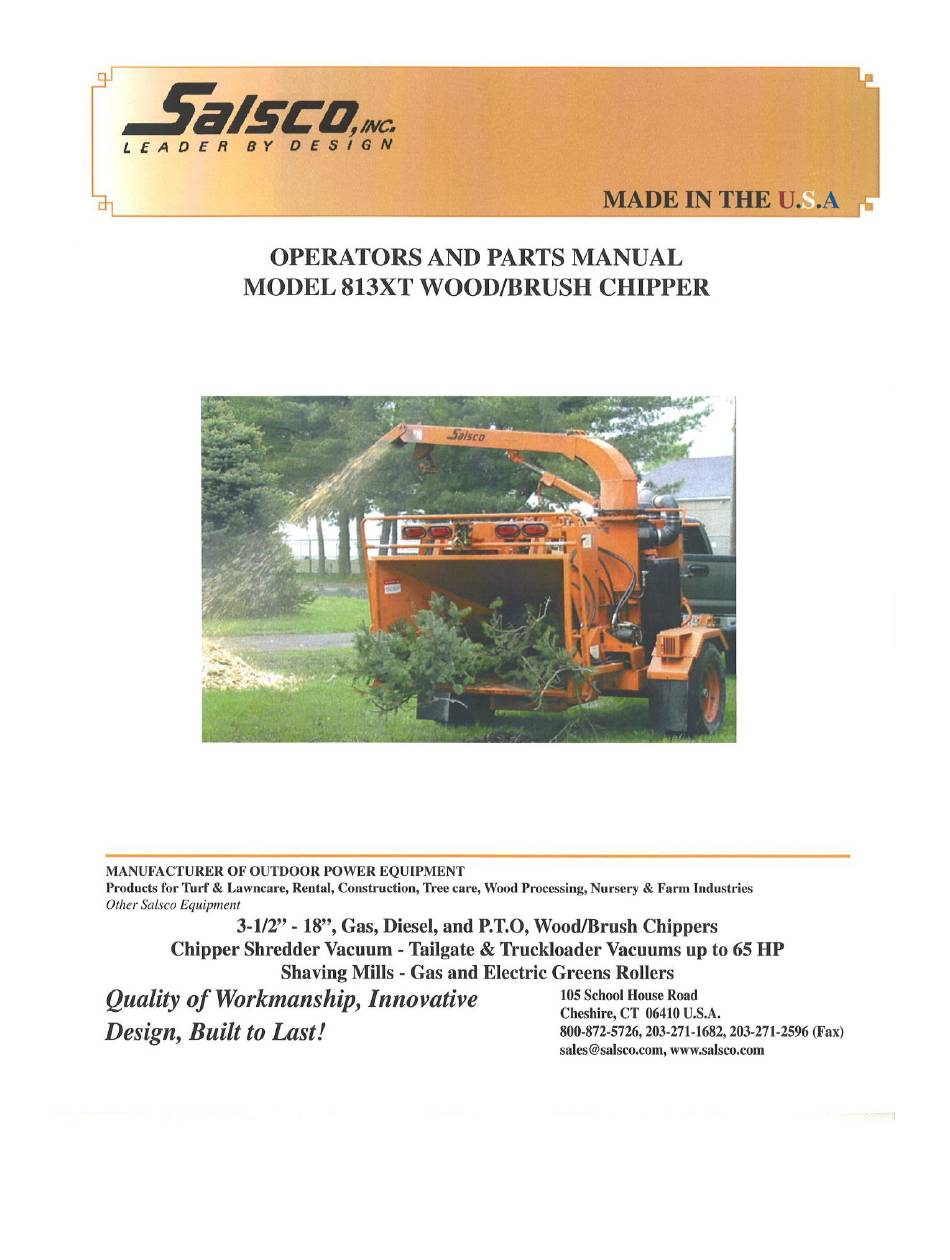

Salsco 813XT Operator And Parts Manual

Wood/brush chipper
Hide thumbs
Table of Contents

Advertisement

Quick Links

O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Salsco 813XT

Summary of Contents for Salsco 813XT

  • Page 1: Cover & Table Of Contents

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 1 -...

  • Page 2: Table Of Contents

    COPY OF WARRANTY CLAIM FORM….…………….……………….…..……...Page 57 COPY OF DEALER DELIVERY REPORT & WARRANTY CARD………………Page 58 SERVICE SCHEDULE LOG …………………….……………………………..…..Page 59 SALSCO, INC. 105 School House Road Cheshire, CT 06410 800-872-5726, 203-271-1682 203-271-2596 (Fax) www.salsco.com, sales@salsco.com O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 2 -...

  • Page 3: Statement Of Fact

    These factors must be supplied by the person(s) caring for and operating this equipment. ONLY YOU CAN PREVENT ACCIDENTS!! O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 3 -...

  • Page 4: Specifications & Features

    The 813XT has dual feed rolls, upper and lower. The chipper disc is 2” thick x 40” diameter and is mounted on a 4 ½” diameter steel hub with six exhaust blades.

  • Page 5: Machine Registration

    It has been and will continue to be the policy of SALSCO to update existing machines at its own discretion. Whenever possible, new designs will be made in such a way that they can be "Retro Fit" if so desired.

  • Page 6: Safety & Operating Instructions

    BRUSH CHIPPERS ANSI Z133.1-2006 American National Standard for Arboricultural Operations Safety Requirements O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 6 -...
  • Page 7 BRUSH REMOVAL CHIPPING ANSI Z133.1-2006 American National Standard for Arboricultural Operations Safety Requirements O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 7 -...
  • Page 8 Let the engine run a few minutes to cool down and then shut down. Chipper flywheel will still be rotating. NEVER PERFORM ANY SERVICE OR MAINTENANCE, OR REMOVE ANY GUARDS WHILE THE FLYWHEEL IS MOVING! O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 8 -...
  • Page 9  KNOW YOUR FELLOW CO-WORKERS WHEREABOUTS AT ALL TIMES!  NEVER LET ANYONE OPERATE THIS MACHINE WITHOUT THE PROPER TRAINING!  REMEMBER, THIS MACHINE CAN CHIP UP A TELEPHONE POLE IN 1- MINUTE! O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 9 -...

  • Page 10: Service & Maintenance Instructions

    10. Set bed knives and lock in place. (.070 clearance between chip blades and bed knives). 11. Reinstall top housing and discharge elbow. Be sure to use roll pin to keep housing aligned. 12. Install pulley. Be sure to use straight edge to line up pulley. O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 10 -...
  • Page 11 This check should be made yearly to assure the maximum performance from your Salsco chipper. Please call with any questions on this or any other problems.
  • Page 12 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 12 -...
  • Page 13 Should you drop a nut, bolt or blade in the housing you must retrieve it before you start up the machine. HINT: Salsco recommends replacement of nuts, bolts and washers, when replacing or sharpening chipper blades. The locking ability of these parts may have been violated. HINT: It is strongly recommended to have a set of blades, bolts, nuts and washers, on the shelf, to prevent downtime while blades are being sharpened.
  • Page 14 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 14 -...
  • Page 15 Once the PTO is installed, follow this schedule below. Lubricating Schedule Bronze Release Bearings Daily Main Bearings Every 100 Hours PTO Cross Shaft Every 500 Hours Linkage and Levers Use SAE 30 Synthetic every 500 Hours O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 15 -...

  • Page 16: Parts Diagrams

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 16 -...
  • Page 17 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 17 -...
  • Page 18 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 18 -...
  • Page 19 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 19 -...
  • Page 20 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 20 -...
  • Page 21 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 21 -...
  • Page 22 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 22 -...
  • Page 23 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 23 -...
  • Page 24 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 24 -...
  • Page 25 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 25 -...
  • Page 26 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 26 -...
  • Page 27 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 27 -...
  • Page 28 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 28 -...
  • Page 29 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 29 -...
  • Page 30 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 30 -...
  • Page 31 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 31 -...
  • Page 32 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 32 -...
  • Page 33 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 33 -...
  • Page 34 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 34 -...
  • Page 35 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 35 -...
  • Page 36 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 36 -...
  • Page 37 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 37 -...
  • Page 38 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 38 -...

  • Page 39: Hydraulic Schematics

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 39 -...
  • Page 40 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 40 -...
  • Page 41 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 41 -...
  • Page 42 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 42 -...
  • Page 43 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 43 -...
  • Page 44 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 44 -...
  • Page 45 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 45 -...
  • Page 46 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 46 -...
  • Page 47 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 47 -...
  • Page 48 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 48 -...
  • Page 49 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 49 -...
  • Page 50 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 50 -...
  • Page 51 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 51 -...
  • Page 52 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 52 -...
  • Page 53 O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 53 -...

  • Page 54: Speed Sensing Wiring Diagram

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 54 -...

  • Page 55: Torque Charts

    Below is a quick reference chart for various “Flat Head Cap Screws” and the torque recommendations. VALUES ARE STATED IN FOOT POUNDS BOLT SIZE Thds Per Inch SAE Grade 5 SAE Grade 8 ¼ 5/16 7/16 ½ 9/16 ¾ O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 55 -...

  • Page 56: Warranty Policy/Procedure

    Your Salsco Commercial or Turf Equipment product is a commercial type product and is normally manufactured and sold for commercial or industrial use. Salsco will, for the original purchaser, for one (1) year from the date of purchase (90 days if used for rental purposes) repair or replace, free of charge, any SALSCO part or parts found to be defective in material, workmanship or both.

  • Page 57: Copy Of Warranty Claim Form

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 57 -...

  • Page 58: Copy Of Dealer Delivery Report & Warranty Card

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 58 -...

  • Page 59: Service Schedule Log

    O:\Manuals\813XT\813XT Manual P.W. 10.30.2017.doc - 59 -...
