Summary of Contents for Lumel PD14
Page 1
PROGRAMATOR ZE ZŁĄCZEM USB PROGRAMMER WITH A USB LINK PD14 INSTRUKCJA OBSŁUGI USER’S MANUAL...
Page 2
1. ZASTOSOWANIE Programator PD14 jest przeznaczony do podłączenia produktów Lumel S.A. do komputera z interfejsem USB w celu programowania nastaw za pomocą bezpłatnego programu eCon. 2. ZESTAW PROGRAMATORA W skład zestawu wchodzą: • programator PD14 1 szt; • przewód USB 1 szt;...
Page 3
Żółta (TxD) - sygnalizuje nadawanie danych do przetwornika. 4.2. Instalacja sterowników portu COM na komputerze Programataor PD14 wykorzystuje, licencjonowane przez firmę Future Technology Devices International Ltd., sterowniki FTDIBUS Driver oraz FTDIPORT Driver. Oprogramowanie to tworzy w systemie nowe urządzenie USB Serial Converter i przydzielony do niego Port(Com) - USB Serial Port.
Page 4
Sterowniki niezbędne do instalacji programatora w systemach ope- racyjnych Windows oraz bezpłatny program konfi guracyjny eCon dostępne są na stronie www.lumel.com.pl eCOn: Sterowniki: UWaGa: Sterowniki nie współpracują z systemami Windows 98 i ME. Instalacja w systemach Windows 2000, Windows XP, Windows Vista i Windows Server 2003.
1,5 m Kompatybilność elektromagnetyczna: - odporność na zakłócenia elektromagnetyczne wg PN-EN 61000-6-2; - emisja zakłóceń elektromagnetycznych wg PN-EN 61000-6-4; 5. KONSERWACJA I SERWIS Programator PD14 nie wymagają okresowej konserwacji. W przypadku uszkodzenia programator należy przesłać do naprawy do serwisu LUMEL S.A.
1. APPLIcATION The PD14 programmer is designed to connect LUMEL’s products to a computer with USB interface for programming settings using the free eCon program. 2. PROGRAMMER SET The PD14 programmer set is composed of: - PD14 programmer ......1 pc - USB connecting cable ....
• Observe the climatic conditions given in Technical Data. 3. InstallatIon • The PD14 programmer must be installed according to the regulation and instructions given in this User’s Manual. • Ensure proper handling and avoid mechanical stress. • Do not bend any components and do not change any insulation distances.

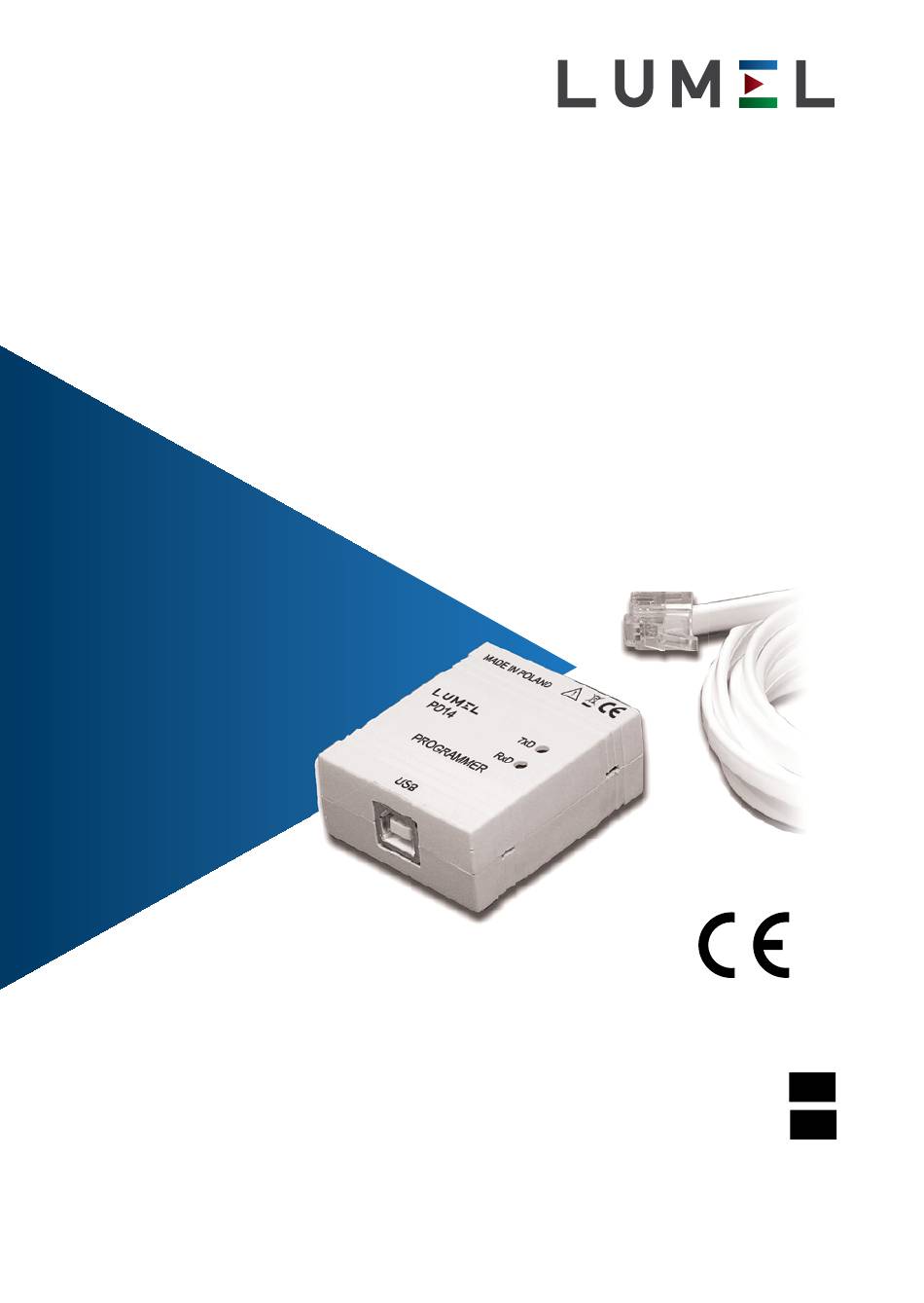

4.2. Assembling the programmer The programmer is a portable device supplied from the USB bus and transducer. The drawing with overall dimensions of the PD14 programmer is presented on the fig. 1 To the computer USB port To the programmer Fig.
Page 9
4.3. Installing COM port drivers in the computer The PD14 programmer takes advantage of FTDIBUS DRIVER and FTDIPORT DRIVER, licensed by the Future Technology Devices International Ltd. Company. This software creates in the system, a new USB Serial transducer device and assigned to it, the Port (COM) –...
Page 10
The drivers necessary to install the PD14 programmer in Windows operating systems and the free eCon confi guration program are available at www.lumel.com.pl/en eCOn: Drivers:...
4. TEcHNIcAL DATA Galvanic isolation 3000 V d.c. Operation rated conditions: - supply voltage from the transducer and USB port - ambient temperature - 20...23...60°C - storage temperature - 20...+ 70°C - air relative humidity < 95% (condensation inadmissible) - work position Communication parameters: - baud rate 9600 bit/s...
