„ General

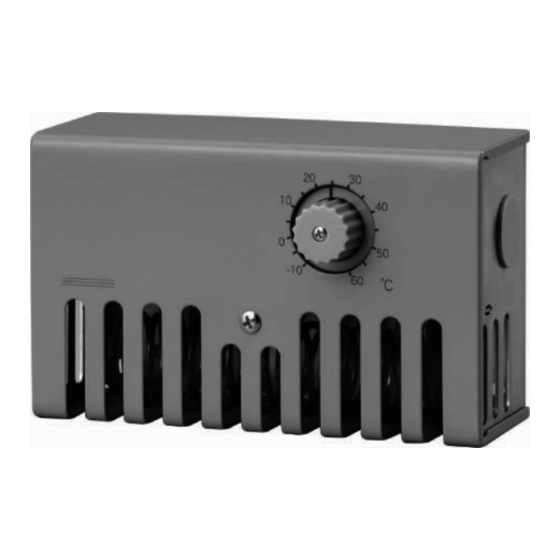

Room Thermostat, Model TY6300Z1000, is a two-
position (ON or OFF) thermostat for indoor use.
It automatically turns on/off warm air heating
equipment, a hot water boiler, or a fan for a plastic
greenhouse, glass house, a crops storage, a
livestock crib, or the like for farm or horticultural
applications.
Also it can be used as anti-freeze thermostat for
ON/OFF operation of a circulating pump or a heater,
or as a high/low limit switch.
„ Features
(1) Electric two-position control
The temperature sensor, liquid filled, detects
changing of room temperature and activates the
microswitch.
(2) Easy temperature setting
You can set the temperature by the knob in the
front of the thermostat.
„ Model Number
Model number
TY6300Z1000
Room Thermostat
Room Thermostat
1
AB-6601
Specifications/Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the TY6300Z1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Azbil TY6300Z1000

Summary of Contents for Azbil TY6300Z1000

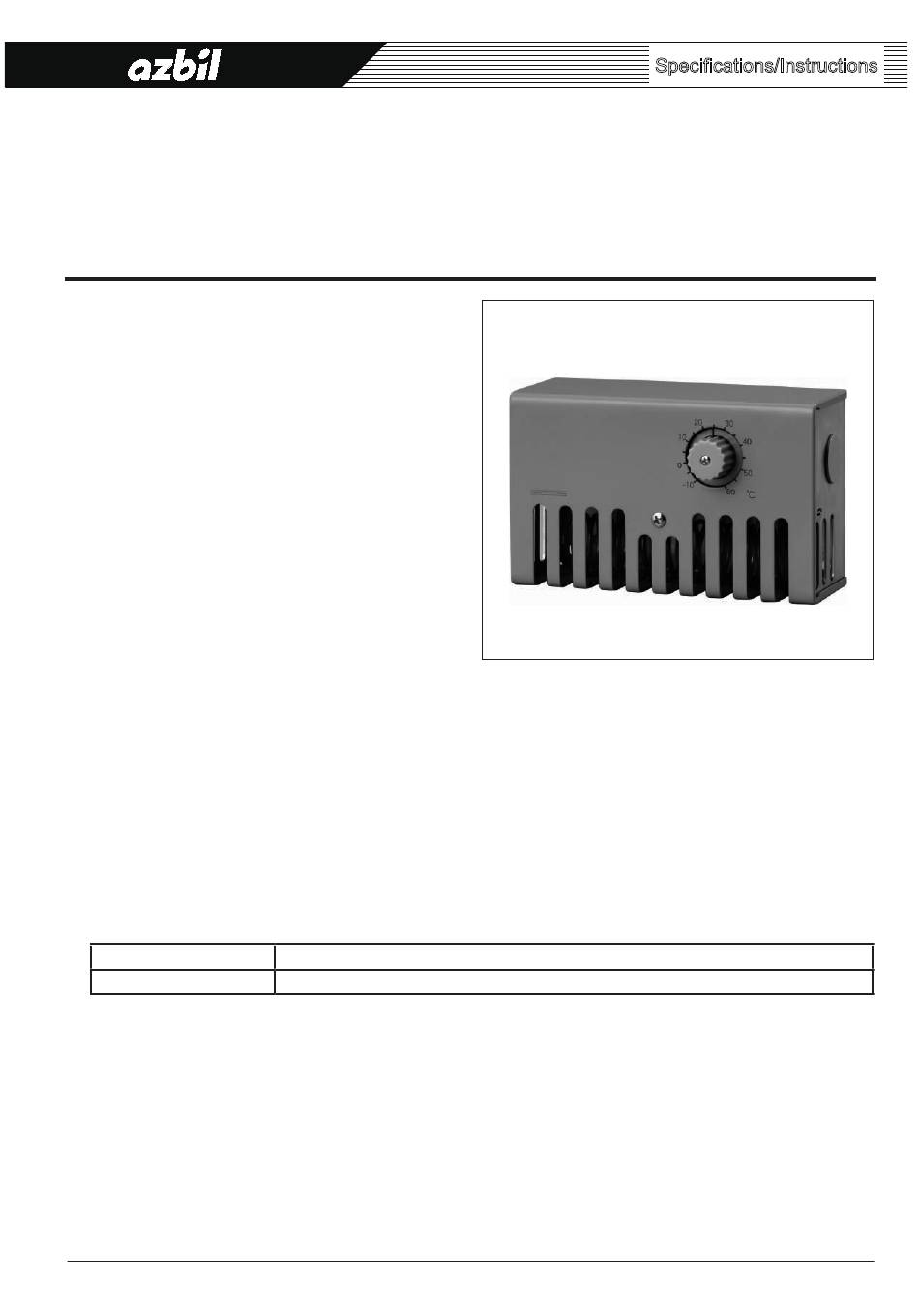

  • Page 1 AB-6601 Specifications/Instructions Room Thermostat „ General Room Thermostat, Model TY6300Z1000, is a two- position (ON or OFF) thermostat for indoor use. It automatically turns on/off warm air heating equipment, a hot water boiler, or a fan for a plastic greenhouse, glass house, a crops storage, a livestock crib, or the like for farm or horticultural applications.

  • Page 2: Safety Instructions

    „ Signs where reliability or control accuracy is particularly required, please contact our sales representative. Alerts users possible hazardous conditions Azbil Corporation will not bear any responsibility for caused by erroneous operation or erroneous the results produced by the operators. ...
  • Page 3 Dispose of the product as industrial waste in  accordance with your local regulations. Do not reuse all or part of this product. „ Dimensions 147.4 23.6 19.2 22.2 φ22 knockout hole (x3) 128.8 Rear view Figure 1. Dimensions (Model TY6300Z1000) (mm)

  • Page 4: Installation Location

    AB-6601 „ Specifications Item Specification Temperature setting range -10–60 °C Temperature setting ± 2.5 °C (when ambient temperature is 23 °C) accuracy Differential gap Approx. 2.5 °C (when ambient temperature is 23 °C) Switching operation When temperature rises, terminal R and W are Closed, terminal R and B are Open. When temperature falls, terminal R and W are Open, terminal R and B are Closed.
  • Page 5 • Secure space around the product for maintenance. Figure 2. Grommet (mm) If the left-side knockout hole is used and a conduit z Installation procedure (Model TY6300Z1000) is not used, attach the included grommet to the openings as shown in Figure 3.
  • Page 6 AB-6601 Main unit Main unit Front cover Terminal cover Terminal cover Front cover mounting screw (x1) mounting screw (x1) Figure 5. Attaching/detaching the front cover Figure 6. Attaching/detaching the terminal cover 11.9 11.9 (Wall or panel) 128.8 128.8 Figure 7. Main unit Mounting hole Wood screws (x4, included)
  • Page 7 AB-6601 z Procedure for replacing the existing product (Model TY631A1121-1, T631C1038, or T631C1046) Replace the existing product with this product (Model TY6300Z1000) using the adapter plate (Part No. 83165180-001, sold separately). Adapter plate (sold separately) Part No. 83165180-001 (71.5) 150.2 57.3...
  • Page 8 AB-6601 Jointly screw on wall Flat-head screws, 2 pcs Adapter plate (sold separately) ＊M3, L=5 Part No. 83165180-001 Main unit Wood screws (1), 2 pcs ＊Nominal diameter 4.1, L=16 Wood screws (2), 2 pcs ＊Nominal diameter 4.1, L=16 φ22 Knockout hole (x3) Element Note:Figure 11.
  • Page 9 AB-6601 „ Wiring WARNING If this product is connected to a system, be sure to implement safety measures.  Failure to do might cause fire. Be sure to ground the product with ground resistance of less than 100 Ω.  Improper grounding might cause electric shock or malfunction.
  • Page 10 AB-6601 (5) Connect the wires to the screw terminals (marked R, B, and W) on the top of microswitch using round terminals. Pull in the wires from the opening at the left side to the microswitch. Note:Check the direction of crimp terminal lugs to connect them to the screw terminals. (See Figure 12.) If the terminal lugs are not set properly as illustrated, they or wires interfere each other and the terminal cover will not be able to attach.
  • Page 11 AB-6601 „ Instrumentation Examples Model TY6300Z1000 Ventilation fan Model TY6300Z1000 Warm air heater Model TY6300Z1000 Model TY6300Z1000 Power supply Power supply Warm air heater Figure 17. Controlling warm air heater Ventilation fan Figure 14. Controlling fan Model TY6300Z1000 Model TY6300Z1000...

  • Page 12: Operation Check

    AB-6601 „ Settings Differential gap z Temperature setting 2.5 °C (fixed) Turn the setting knob on the front of cover to set When temperature falls When temperature rises the indicator (needle) at the desired temperature Between terminal Between terminal (setpoint). R and W: Open R and W: Close Between terminal...
  • Page 13 AB-6601 „ Maintenance WARNING If this product is connected to a system, be sure to implement safety measures.  Failure to do might cause fire. Be sure to ground the product with ground resistance of less than 100 Ω.  Improper grounding might cause electric shock or malfunction.
  • Page 14 AB-6601 This blank page is added for page layout purposes.
  • Page 15 AB-6601 This blank page is added for page layout purposes.
  • Page 16 Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev. 2.0 Aug. 2015 AB-6601 (J: AI-6601 Rev. 3.0)
