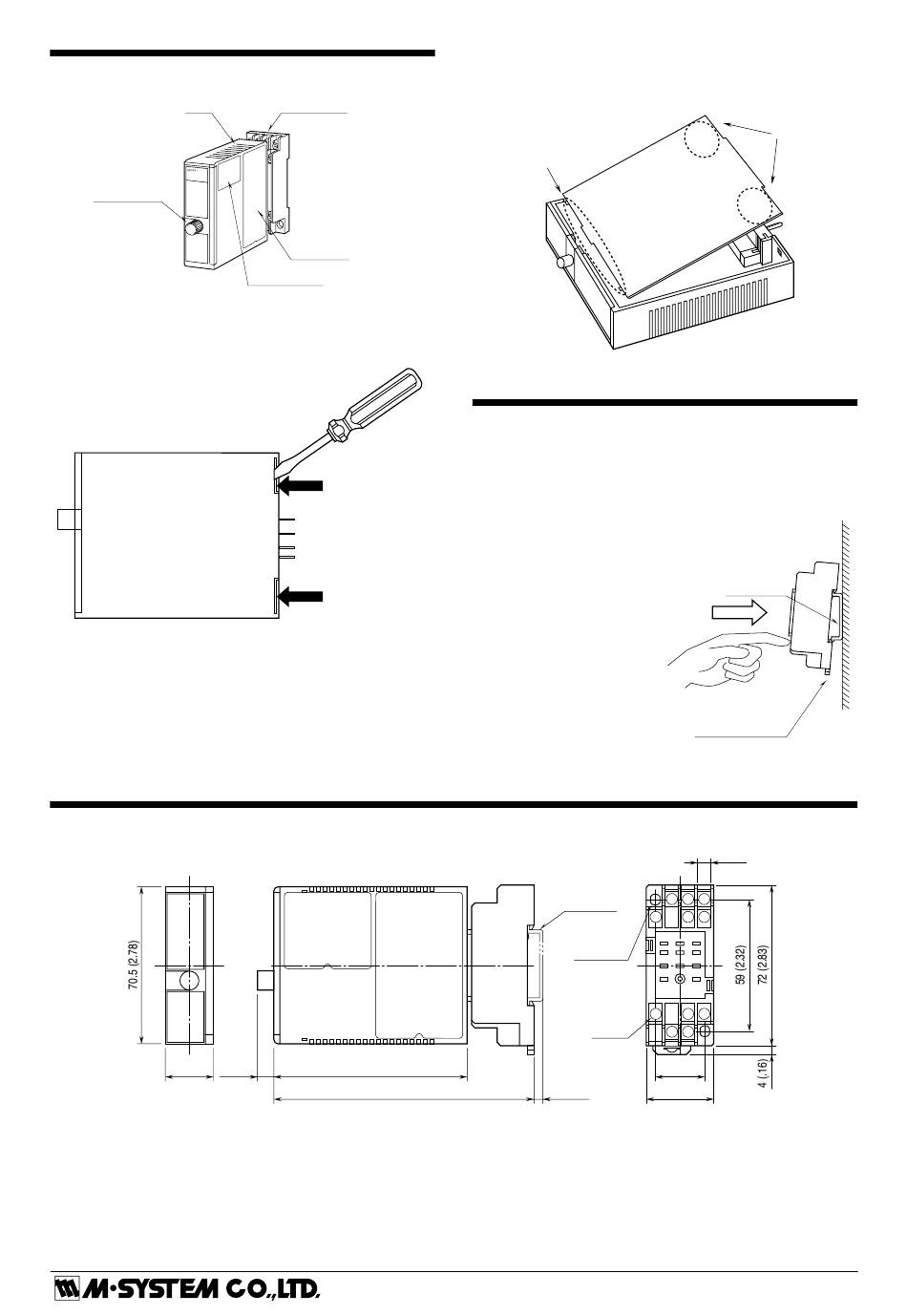

COMPONENT IDENTIFICATION

Body
Fixing Screw
■ HOW TO OPEN THE LEFT SIDE COVER
Insert the tip of a minus driver into the openings indicated
with arrows in the figure, and pull up the cover.

EXTERNAL DIMENSIONS

21.5 (.85) 7.3 (.29)
Base Socket
Connection
Diagram
Specifications
unit: mm (inch)
86.7 (3.41)
116.7 (4.59)
■ HOW TO CLOSE THE LEFT SIDE COVER
Place the side A first and push in the parts B, gently not to
break the enclosure.
A

INSTALLATION

Loosen the fixing screw at the front of the unit in order to
separate the body from the base socket.
■ DIN RAIL MOUNTING
Set the base socket so that
its DIN rail adaptor is at
the bottom. Position the
upper hook at the rear side
of base socket on the DIN
rail and push in the lower.
When removing the socket,
push down the DIN rail
adaptor utilizing a minus
screwdriver and pull.
■ WALL MOUNTING
Refer to 'EXTERNAL DI-
MENSIONS.'
DIN RAIL
35mm wide
2–4.2x5
(.17x.20)
MTG HOLE
6 (.24) deep
11–M3
SCREW
[4 (.16)]
• When mounting, no extra space is needed between units.
M2XRP2
B
DIN Rail
35mm wide
Spring Loaded
DIN Rail Adaptor
6 (.23)
3 2 1
6 5 4
9 8 7
11 10
22 (.87)
29.5 (1.16)
