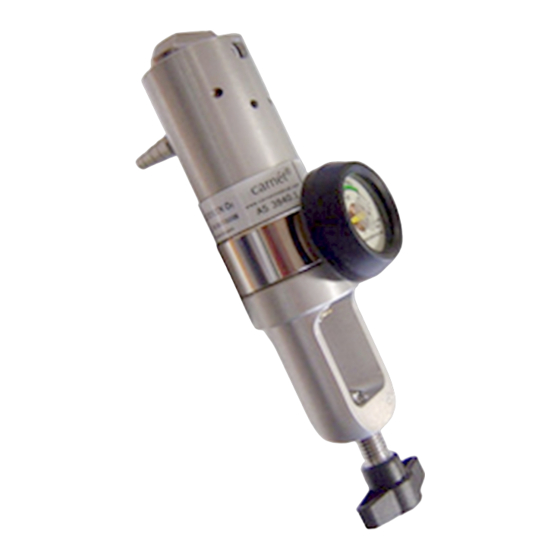

Dialflow Regulator
Instructions for Use
702-0084.14
October 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dialflow Regulator and is the answer not in the manual?

Questions and answers

Summary of Contents for bpr Dialflow Regulator

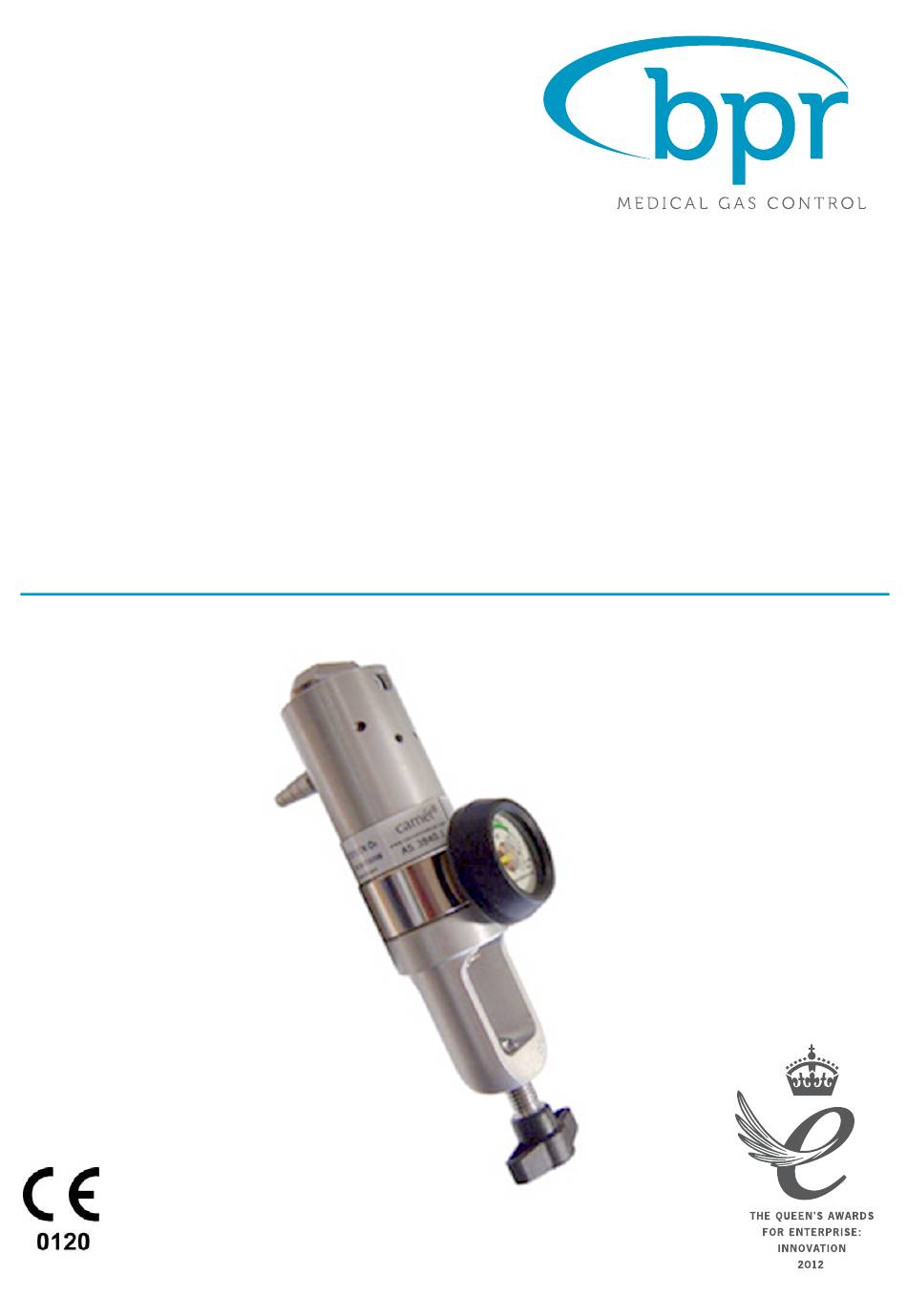

  • Page 1 Dialflow Regulator Instructions for Use 702-0084.14 October 2014...
  • Page 2: Warnings And Cautions

    Read through this entire instruction manual before using or showing others how to use a Dialflow Regulator. As with all medical equipment, attempting to use this device without a thorough understanding of its operation may result in patient or user injury.
  • Page 3  Never install a pin index regulator Dialflow Regulator with more than one yoke seal between the valve and the regulator. Before attaching the regulator, verify that the post valve is not already fitted with a yoke seal.
  • Page 4: Functional Description

    3.2. Technical Description The Dialflow Regulator reduces the high pressure of the oxygen cylinder to a safe, more manageable pressure for application to patients. There are many types of oxygen cylinder connection used and these may be different from one country to another, ensure that this regulator is the correct connector for the cylinder to be used.
  • Page 5: Maintenance

    Turn the gas flow selection dial fully clockwise and check that the indication in the flowmeter window is zero. Open the cylinder valve slowly with a suitable cylinder key. Check the regulator cylinder contents gauge to verify that there is sufficient gas available. Connect a sufficient length of oxygen tubing (not supplied) to the outlet barb.
  • Page 6: Specification

    Full details of the recommended servicing requirements can be found in the Service Manual. The Service Manual can be obtained from your local BPR Medical distributor, details of which can be found at www.bprmedical.com. Complete the service in accordance with the instructions given in the Service Manual or return the device to a recognised BPR Medical Service Centre on or before the date shown.
  • Page 7: Troubleshooting

    Applied Standards Valves for compressed gas cylinders AS 2473.3 Part 3: Outlet connections for medical gases (including pin-indexed yoke connections) Pressure regulators for use with medical gases AS 3840.1 Part 1: Pressure regulators and pressure regulators with flow-metering devices Pressure regulators for use with medical gases. Pressure regulators and BS EN ISO 10524-1 pressure regulators with flow-metering devices BS EN ISO 14971...
  • Page 8: Distributor Details

    BOC Healthcare Customer Service Centre 970-992 Great South Road Penrose 1061 Auckland T: +64 (0)9 525 5600 www.boc.co.nz BPR Medical Limited T: +44 (0)1623 628 281 22 Hamilton Way, Mansfield F: +44 (0)1623 628 289 Nottinghamshire cs@bprmedical.com NG18 5BU, United Kingdom...

This manual is also suitable for:

818-0040818-0041818-0043818-0051
