Wireless Forecast Station
with Colored LCD Display
Welcome!
--------------
Congratulations on your new Color Forecast Station and welcome to the
La Crosse Technology family! This product was designed with you in mind by our
hometown team of weather enthusiasts based in La Crosse, Wisconsin.
Instructional Manual
Model: WW85777v2
DC: 040219

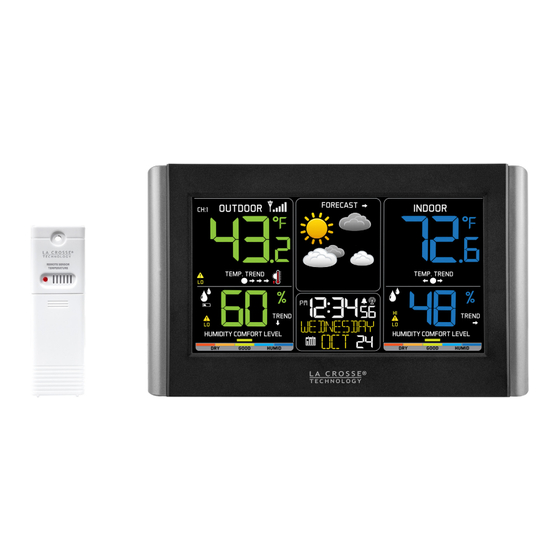

Wireless Weather Forecast Station with Colored LCD Display
Advertisement
Table of Contents
Related Manuals for La Crosse Technology WW85777v2
Summary of Contents for La Crosse Technology WW85777v2
- Page 1 Welcome! -------------- Congratulations on your new Color Forecast Station and welcome to the La Crosse Technology family! This product was designed with you in mind by our hometown team of weather enthusiasts based in La Crosse, Wisconsin. Instructional Manual Model: WW85777v2...
-
Page 2: Table Of Contents
Table of Contents Step 1: Power Up LO/HI Temperatures Step 2: Mounting Basics Heat Index/Dew Point Temperature Step 3: Set Time, Date, etc. Channel Selection Setting Menu Using Multiple Sensors Your Weather Station Features Sensor Search Atomic Time Low Battery Backlight HI-LOW-OFF Restart Set Temperature Alerts... -
Page 3: Step 1: Power Up
STEP 1: Power Up Insert batteries (in any order): • 2-AA batteries into thermo-hygro sensor • 5 volt power cord (required) into WW85777v2 station *3-AAA batteries for optional backup of your time and date AC 5.0V ST E P 2 : Mo un t ing Ba sic s At this time, all of your sensor information should be displayed on your station. -
Page 4: Setting Menu
Settings Menu Settings order: Time Zones 1. Beep ON/OFF Atlantic 2. Atomic ON/OFF Eastern 3. Time Zone Central Mountain 4. DST Indicator Pacific 5. 12/24 Hour Time Format Alaskan 6. Hour Hawaiian 7. Minutes, 8. Year 9. Month 10. Date 11. -
Page 5: Your Weather Station Features
Your Weather Station Features Channel Indicator Outdoor Temperature Sensor Reception Icon Outdoor Temperature LO Alert Temperature Trend Indicator Outdoor Temperature HI Alert Outdoor Humidity Humidity Trend Arrow Humidity Comfort Level Forecast Icons Forecast Trend Arrow AM | PM Atomic Time Alarm | Snooze Atomic Reception Tower Weekday... -
Page 6: Atomic Time
Indoor Temperature Indoor Temperature LO Alert Temperature Trend Indicator Indoor Temperature HI Alert Indoor Humidity Humidity LO Alert Humidity Trend Arrow Humidity Comfort Level Atomic Time • From normal time display, press and release the SET button to search for the WWVB time signal. •... -
Page 7: Set Temperature Alerts
Set Temperature Alerts 1. Hold 2 seconds, then release the ALERTS button to enter alert set mode. 2. Outdoor HI TEMP will flash OFF or ON. 3. Press and release the +/- buttons to select ON. (If disarmed (OFF) skip the alert value and move to next alert) 4. -
Page 8: Deactivate/Activate Alarm
Alarm Time The alarm will be active when alarm time is set. 1. Hold the ALARM button for 3 seconds to enter alarm settings. 2. The HOUR will show. 3. Press the +/-buttons to adjust. 4. Press ALARM to confirm and move to the minutes 5. -
Page 9: Forecast
Forecast 1. The weather station offers these 6 forecast icons based on barometric pressure. 2. When the forecast would normally be Rain or T-Storm and the outdoor temperature is below 32°F, the forecast will show Snow. 3. Wind indicators will show on T-Storm and Snow forecast. FORECAST FORECAST FORECAST... -
Page 10: Lo/Hi Temperatures
LO/HI Temperatures • The forecast station automatically resets the HI/LO temperatures at midnight (12:00 AM). • Press and release the MINUS button to toggle through the LO and HI temperature and humidity readings. 1. Press the MINUS button once to view Outdoor LO temperature/humidity records. -
Page 11: Channel Selection
Channel Selection • Press the PLUS button to toggle between sensor channels when multiple sensors are used. • After initial setup, channel 2 and channel 3 will not show unless additional sensors connected. Using Multiple Sensors Your forecast station can read up to 3 TX141TH-BCHv3 sensors. Add Sensors: •... -
Page 12: Help Us, Help You
If you have ideas for features or support solutions you’d like to see us make, please let us know! We truly want to make owning a La Crosse Technology product not only a practical experience, but also a fun one. So email us at: store@lacrossetechnology.com... -
Page 13: Specifications
Specifications Indoor Temperature Range: 32˚F to 122˚F (0˚C to 50˚C) Humidity Range: 10% RH to 99%RH Thermo-hygro Sensor -40˚F to 140˚F (-40˚C to 60˚C) Temperature Range: Note: Temperatures below -20°F (-29°C) require Lithium batteries in the outdoor sensor. Humidity Range: 10% RH to 99%RH Up to 330 feet (100 meters) in open air, RF 433 MHz Transmission Range:... -
Page 14: Fcc Statement
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
