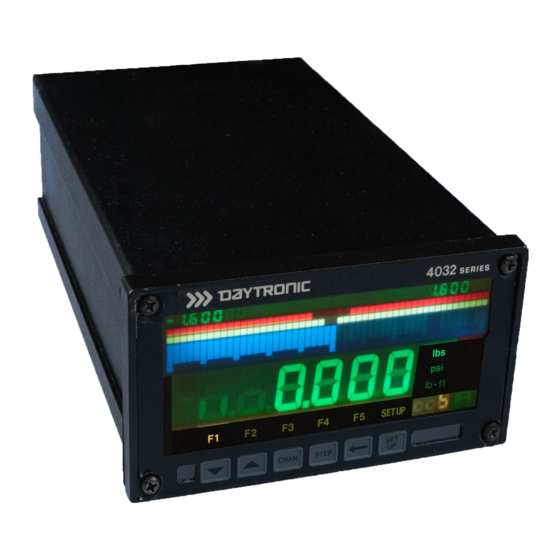

DayTronic 4000 Series Instruction Manual

Single-channel frequency input instrument
Hide thumbs Also See for 4000 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL
4040
SINGLE-CHANNEL
FREQUENCY INPUT
INSTRUMENT
INSTRUCTION MANUAL
4000
Instrument Series
SB.2
