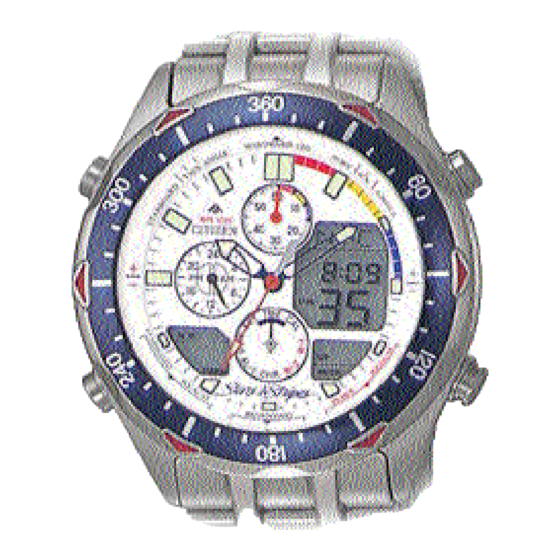

Citizen C320 Abbreviated Instruction

English
• To see details of specifications and operations, refer to the instruction manual:
Component identification
Function hand
Button B
Hour hand
24-hour hand
H.R.
Button C
Second hand
• Actual appearance may differ from the illustration.
• Refer also to our web page for detail of usage of the scale and bezel on the watch.
(http://www.citizenwatch-global.com/support/pdf/enhanced/e.pdf)
Moving the hands temporarily
You can move the hour and minute hands temporarily to see the digital display
and small dials without their interruption.
• The operation is effective when "H.R. " is indicated on the lower left of the dial.
1.
Press and hold the upper left button B for 2 seconds or more.
• Release the button when the hour and minute hands start to move.
2.
Press and release the upper left button B when the hands
went away from what you want to see.
The hands stop.
3.
Pess and release the upper left button B to finish the
procedure.
The hands returns to time indication.
C320 Abbreviated instruction
Minute hand
Button A
Digital display
UP
Button M
MODE
DOWN
Mode hand
C320 instruction manual
Setting the time
• The time indicated with the hour, 24-hour, minute and second hands is
synchronized with that on the digital display.
1.
Press and release the lower right button M repeatedly to
move the mode hand to point to [TME].
2.
Press and release the upper right button A or lower left
button C repeatedly to indicate an area name you want on
the digital display.
3.
Pull out the lower right button M .
The time indication on the digital display starts blinking and the time
becomes adjustable.
4.
Press and release the upper right button A repeatedly to
change the target to be set.
• Each time you press the button, the target changes as follows:
Summer time Second
5.
Press and release the lower left button C to adjust the target.
• Press button C in accordance with a reliable time source to adjust the
second.
• Pressing and holding the button changes indication continuously.
• "AM" or "PM" is displayed to indicate AM or PM in 12-hour basis
indication.
• "SUMMER" is displayed when summer time is activate.
• Summer time cannot be activated when "UTC" is chosen for the area.
6.
Repeat steps 4 and 5 to set other targets.
7.
Push in the lower right button M to finish the procedure.
12/24-hour
Minute Hour basis
