1. BASIC SPECIFICATIONS
(1) CaL. No.
CALIBRE
Ligne
Size*mm
Date
Total height
Battery life
Battery
(* 60 minutes chronograph operation per day)
(2) Time standard
Type of quartz : Tuning fork type quartz crystal
Frequency
: 32,768Hz
Accuracy
: +/-20 s/month worn under normal circumstances
(3) Balanceable weight of hand
Minute hand Max. 0.4 N.m
Second hand Max. 0.11 N.m
Other small hands Max. 0.02 N.m
(4) Function
CAL.0S20
:
Powercell Saving Reset Mechanism(PSRM)
Over-loading Compensation Device(OLCD)
Digital Frequency Control(DFC) for time adjustment
Chronograph
second hand
Hour
hand
Chronograph
minute hand
MOVEMENT SPECIFICATIONS
CAL.0S20
13-1/2 LINGE, 3 EYES CHRONOGRAPH
ANALOGUE QUARTZ, 0 JEWEL
BY CITIZEN WATCH CO., LTD. JAPAN
MANUFACTURED IN JAPAN
SILVER OXIDE SR927W or equivalent
Chronograph 1/1 sec. basis
(Up to 59 min. 59 sec.)
second hand
*TO CONFIRM WITH MOV'T DRAWING ATTACHED
0S20
13-1/2
30.80mm
O
5.10MM
Approx. 5 years*
Button A
minute hand
24-hour hand
Normal crown
position
Button B
Calendar
Advertisement
Table of Contents
Related Manuals for Citizen CAL.0S20
Summary of Contents for Citizen CAL.0S20

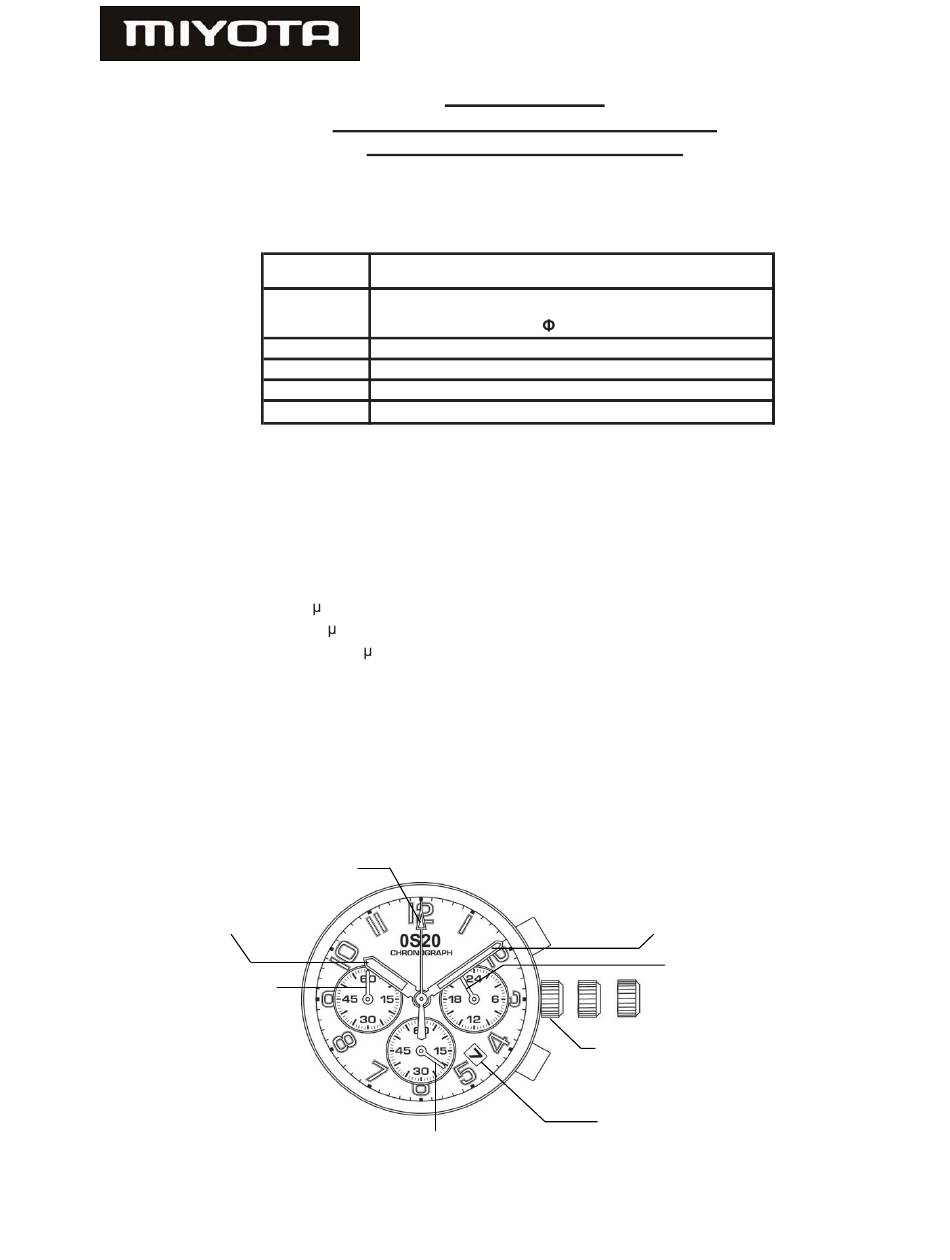

- Page 1 MOVEMENT SPECIFICATIONS CAL.0S20 13-1/2 LINGE, 3 EYES CHRONOGRAPH ANALOGUE QUARTZ, 0 JEWEL BY CITIZEN WATCH CO., LTD. JAPAN MANUFACTURED IN JAPAN 1. BASIC SPECIFICATIONS (1) CaL. No. *TO CONFIRM WITH MOV'T DRAWING ATTACHED 0S20 CALIBRE 13-1/2 Ligne Size*mm 30.80mm Date Total height 5.10MM...
- Page 2 2. SEPARATED PARTS Setting stem x1 Code 065-453 Length from movement center to far end 23.00mm of setting stem Thread......... 0.9mm x 8.50mm 3. OTHERS * Measurement of time rate The unit(gate) time of measurement must be set at "10 sec." or integer fold value of 10 sec.
-
Page 3: Setting The Time
4. INSTRUCTION MANUAL A) DISPLAYS AND BUTTONS Chronograph second hand Button A Hour minute hand hand 24-hour hand Chronograph minute hand Normal crown position Button B Calendar second hand B) SETTING THE TIME 1. Pull the crown out to the 2nd-click position so that the second hand stops at (0) position. 2. - Page 4 E) CHRONOGRAPH RESET (INCL. AFTER REPLACING BATTERY) This procedure shoud be performed when the chronograph second hand do not return to the 0 second position after the chronograph has been reset, and including after the battery has been replaced. Chronograph second hand Button A Hour...
- Page 5 MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT INSTRUCTION MANUAL FOR MIYOTA WATCH MOVEMENT CALIBER NO. 0S20/0S2A CHRONOGRAPH FUNCTION: CENTER SECOND HAND CHRONOGRAPH 1/1 sec. Timing up to 59 minutes 59 seconds BATTERY: SR927W A) DISPLAYS AND BUTTONS B) SETTING THE TIME C) SETTING THE DATE D) USING THE CHRONOGRAPH...
- Page 6 MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT ミヨタウォッチムーブメント取扱説明書 キャリバー番号：0S20/0S2A クロノグラフ機能：センタークロノ秒針1/1秒単位で最大59分59秒まで計測 電池 : SR927W A) 表示部とボタン B) 時刻の合わせ方 C) 日付の合わせ方 D) クロノグラフの使い方 E) クロノグラフリセット（電池交換の後など）...
- Page 7 MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT BEDIENUNGSANLEITUNG FÜR MIYOTA UHRWERK KALIBER NR. 0S20/0S2A Messfunktion des Chronographen: Chronograph mit mittlerem Sekundenzeiger 1/1 (1-Sekunden-Einheiten)/Zeitnehmung bis zu 59 Minuten und 59 Sekunden. Batterie: SR927W A) DISPLAY UND KNÖPFE B) EINSTELLUNG DER ZEIT C) EINSTELLUNG DES DATUMS D) VERWENDUNG DES CHRONOGRAPHEN...
-
Page 8: Réglage De L'heure
MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT MODE D'EMPLOI DU MOUVEMENT DE MONTRE MIYOTA CALIBRE : NO. 0S20/0S2A Fonction de chronographe : Chronomètre avec trotteuse au centre 1/1(seconde comme unité)/Chronométrage jusqu'à 59 minutes 59 secondes. Pile : SR927W A) INDICATIONS ET BOUTONS B) RÉGLAGE DE L'HEURE C) RÉGLAGE DE LA DATE... -
Page 9: Ajuste De La Hora
MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT MANUAL DE INSTRUCCIONES DEL RELOJ MIYOTA N˚ DE CALIBRE 0S20/0S2A Fonction de chronographe : Cronógrafo con manecilla central de segundos 1/1(unidades de 1 segundo)/Cronometraje hasta 59 minutos 59 segundos. PILA: SR927W A) VISUALIZACIÓN Y BOTONES B) AJUSTE DE LA HORA... -
Page 10: Impostazione Dell'orario
MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT MANUALE DI ISTRUZIONI PER IL MOVIMENTO DELL’OROLOGIO MIYOTA CALIBRO NO.0S20/0S2A FUNZIONE DI CRONOGRAFO: Cronografo con lancetta centrale dei secondi 1/1(unità di 1 secondo)/Cronometraggio fino a 59 minuti e 59 secondi. PILA: SR927W A) VISUALIZZAZIONI E PULSANTI B) IMPOSTAZIONE DELL’ORARIO... - Page 11 MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT MANUAL DE INSTRUÇÕES PARA MOVIMENTO DO RELÓGIO MIYOTA CALIBRE Nº 0S20/0S2A FUNÇÃO DE CRONÓGRAFO: Cronógrafo com ponteiro dos segundos central 1/1 (unidades de 1 segundo)/Medição até , 59 minutos e 59 segundos PILHA: SR927W A) MOSTRADOR E BOTÕES B) DEFINIÇÃO DA HORA...
- Page 12 MIYOTA 0S20/0S2A...
- Page 13 MIYOTA UNIVERSAL MASTERPIECE BORN IN JAPAN MADE IN JAPAN METAL MOVEMENT...
