ASSEMBLY

The machine is shipped from the factory in a partially
disassembled form that allows for easy and convenient
shipping.
When preparing for the customer, follow this procedure:
1. Clear the area of bystanders, especially small
children.
2. Use 2 men to guide or direct and handle the heavy
and bulky components.
3. Use a crane, hoist or forklift of suffi cient capacity and
stability to handle the components.
4. Attach to the lifting device, remove tie-downs, lift
from the truck and move to the assembly area. Drive
slow and keep the machine close to the ground.
5. Cut the strapping and remove the components from
the shipping pallet.
6. Mount the reversible points or shovels to the tines
and tighten fasteners to their specifi ed torque.
7. Place the cultivator frame on stands and lay-out the
components in their approximate position.
8. Refer to the tine position schematic.
Note: Schematic is a baseline starting point for
reference.
9. Measure and mark the tine positions on the frame.
10. Mount the tines to the frame.
11. Attach the blade leveler and rear roller per parts
drawing..
12. Tighten all fasteners to their specifi ed torque.
20

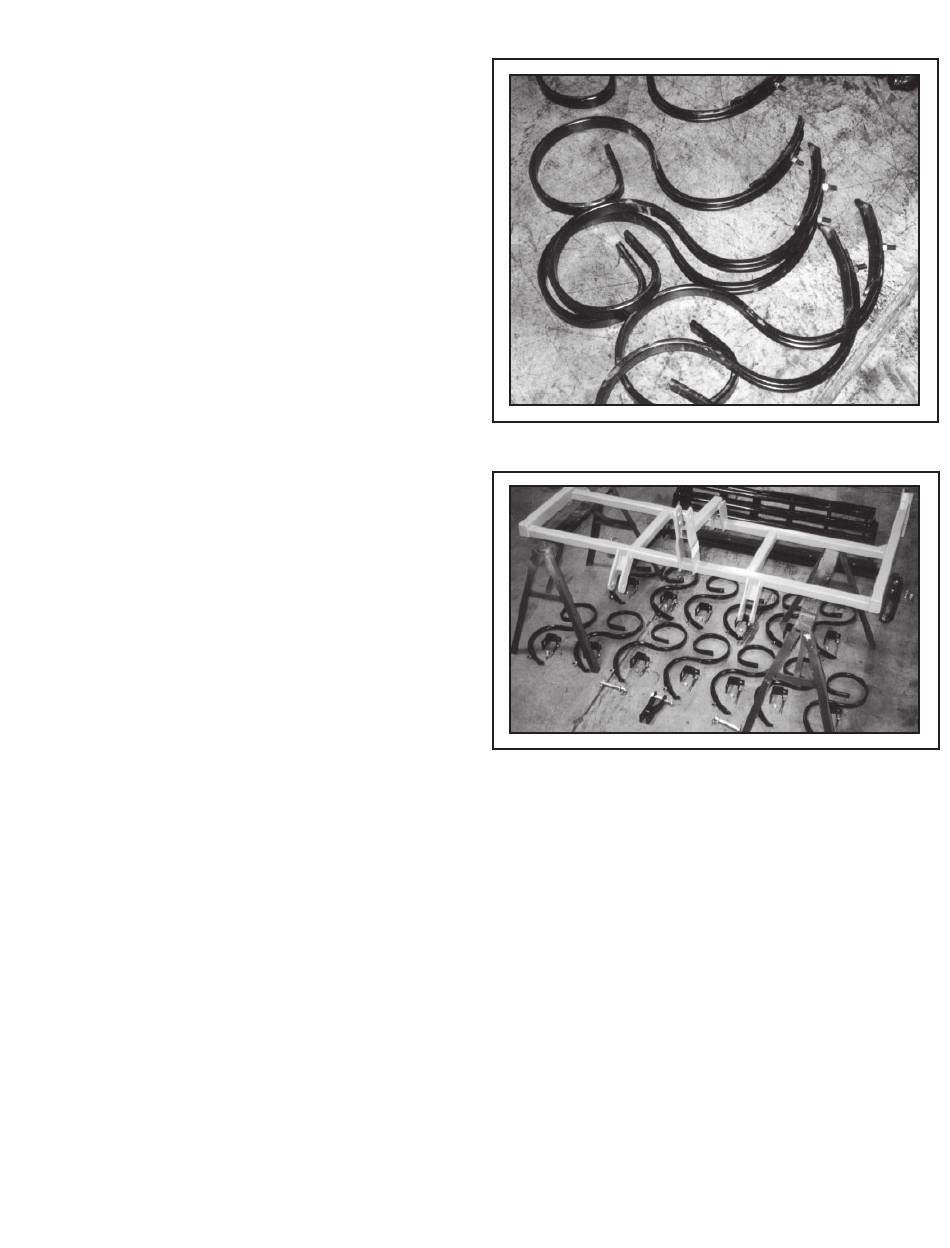

Fig. 7 - Tines With Reversible Points/Shovels
Fig. 8 - Layout
