d. Beveled Blade Position:
The beveled blade is located
directly behind the cultivator
section and is used to spread
and level the soil loosened by
the cultivator.
A good starting position
would be in the second hole
on the strap. This will place
the blade slightly above the
cultivator shovel depth posi-
tion. Lower if the blade is not
distributing or moving the
soil along the width of the
cut. Raise if a lot of soil is go-
ing over the top of the blade.
Set both ends of the blade in
the same hole.
e. Roller:
The roller is designed with
adjustable top links to allow
the operator to set the depth
of the roller during operation.
The best results are obtained
when the roller is set slightly
higher than the depth of the
cultivator shovels. It should
pack, condition and com-
press the soil as the machine
moves across the working
area.
The roller adjustment top
links should be equal length.
Observe the quality of the job
when starting to work. Raise
the roller if the cultivator
is not able to penetrate the
surface and work up the soil.
Lower if the soil is not being
compressed.
14

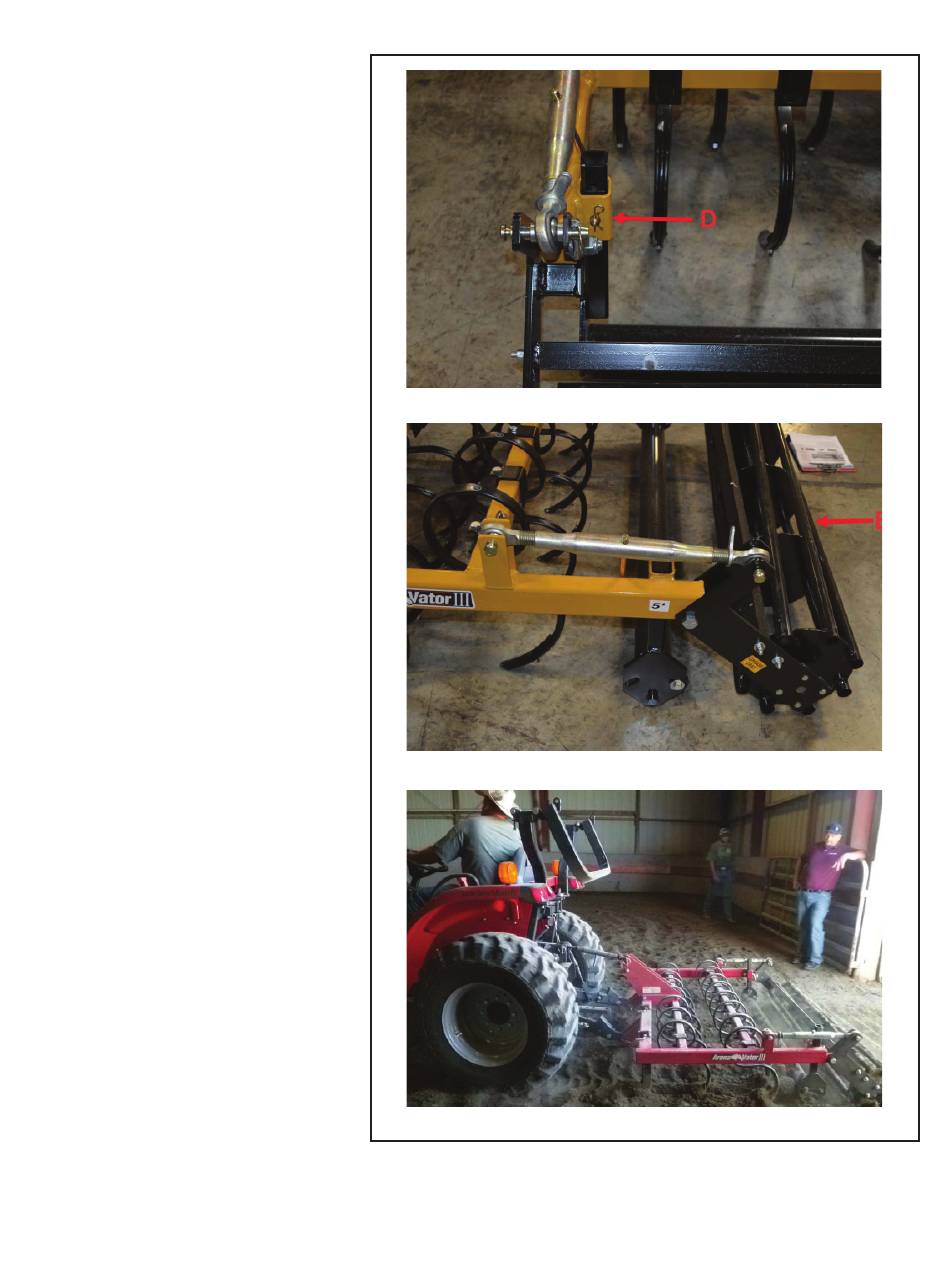

Fig. 4 - Blade/Roller
Blade Depth
Roller Height
Working
