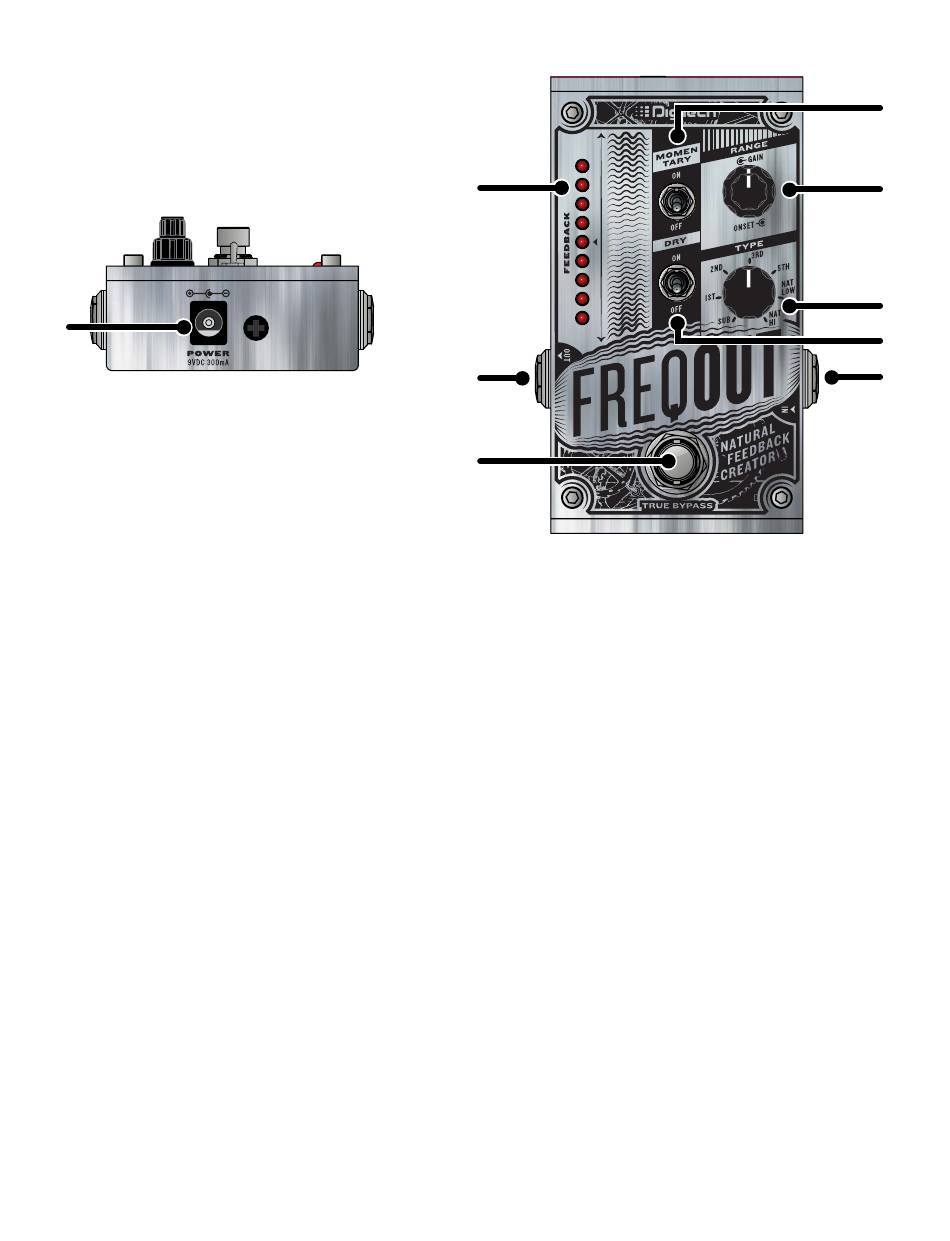

USER INTERFACE

1
2
1. Power Connector
Connect the recommended power adapter to this jack (see "Specifications" on page 6). The
FreqOut pedal requires a power adapter for operation. Battery power is not available.
2. Feedback LEDs
3
The middle LED lights to indicate the FreqOut effect is on. When the effect is enabled, the LEDs will
light from inside out to display the onset rate of the feedback effect.
4
3. Output Jack
Connect this jack to the input of an amp or the input of the next pedal on your pedalboard.
4. Effect Footswitch
Turns the FreqOut effect on or off. The Effect footswitch can operate as a latching or momentary
switch depending on the position of the Momentary switch.
5. Momentary Switch
Determines the operation of the Effect footswitch. When set to the "ON" position, the effect will
only be enabled as long as the Effect footswitch is held down. Use this setting to apply feedback only
to certain notes or passages during a performance.
When set to the "OFF" position, the Effect footswitch will operate just like standard effect pedals,
where the effect toggles between enabled and bypassed modes each time the Effect footswitch is
pressed. Use this mode when you want feedback to be more prominent during a performance and
don't want it to be applied during specific notes or phrases.
