  • Page 1 Owner’s Manual...

  • Page 2: Warranty

    WARRANTY We at DigiTech ® are very proud of our products and back-up each one we sell with the following warranty: Please register online at digitech.com within ten days of purchase to validate this warranty. This warranty is valid only in the United States.

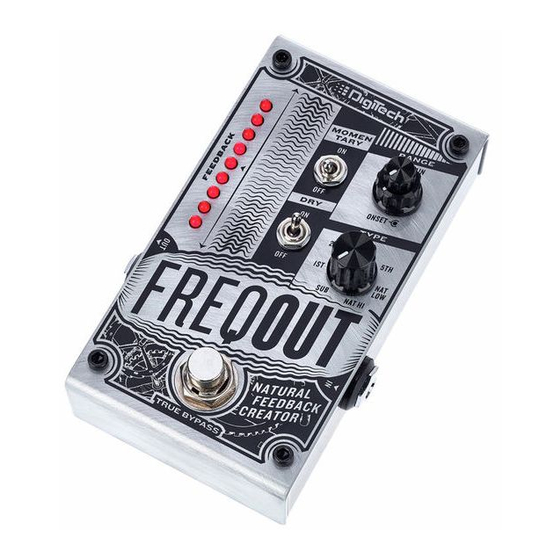

  • Page 3 INTRODUCTION Thanks for choosing the DigiTech FreqOut Natural Feedback Creator pedal. The FreqOut is a ® revolutionary pedal that adds different feedback harmonics to any guitar signal without coloring the original tone. Enabling the effect boosts a user-selectable harmonic of the input note, creating controlled, natural-sounding feedback sustain through any amp or amp modeler at any volume.

  • Page 4: User Interface

    USER INTERFACE 1. Power Connector Connect the recommended power adapter to this jack (see “Specifications” on page 6). The FreqOut pedal requires a power adapter for operation. Battery power is not available. 2. Feedback LEDs The middle LED lights to indicate the FreqOut effect is on. When the effect is enabled, the LEDs will light from inside out to display the onset rate of the feedback effect.

  • Page 5: Input Jack

    NOTE: When the Momentary switch is set to the “ON” position, the FreqOut will use a buffered bypass signal path. When the Momentary switch is set to the “OFF” position, the FreqOut provides a true bypass signal path. 6. Gain & Onset Knobs Gain Knob –...
  • Page 6 USING THE HARMONIC TYPES The Harmonic Feedback Types The first five Harmonic Feedback types let you get feedback at a predictable, repeatable frequency. Feedback is selectable at a sub-octave, 1st, 2nd, 3rd, or 5th harmonic, where harmonic is defined as a multiple of your note¹s frequency. For example, the 5th harmonic is 5x your note¹s frequency (which is actually 2 octaves above a major third interval of the original note).

  • Page 7: Making Connections/Applying Power

    1. Turn down the amplifier’s master volume control. 2. Make all audio connections to the FreqOut as shown below. 3. Connect the optional HARMAN power supply to the POWER input connector and connect the other end to an available AC outlet.

  • Page 8: Specifications

    SPECIFICATIONS Electronic Controls: Feedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/ Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain A/D/A Conversion: 24-bit Input...
  • Page 9 PHONE: (801) 566-8800 WEB: digitech.com SUPPORT: digitech.com/en-US/support FreqOut Owner's Manual 5082465-A © 2017 HARMAN. All rights reserved. DigiTech is a registered trademark of HARMAN.
