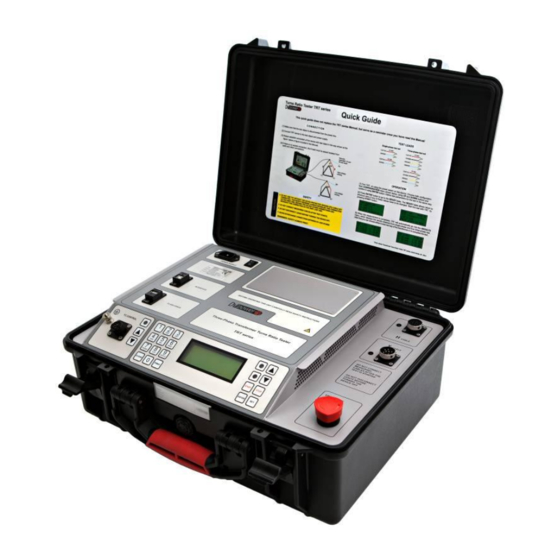

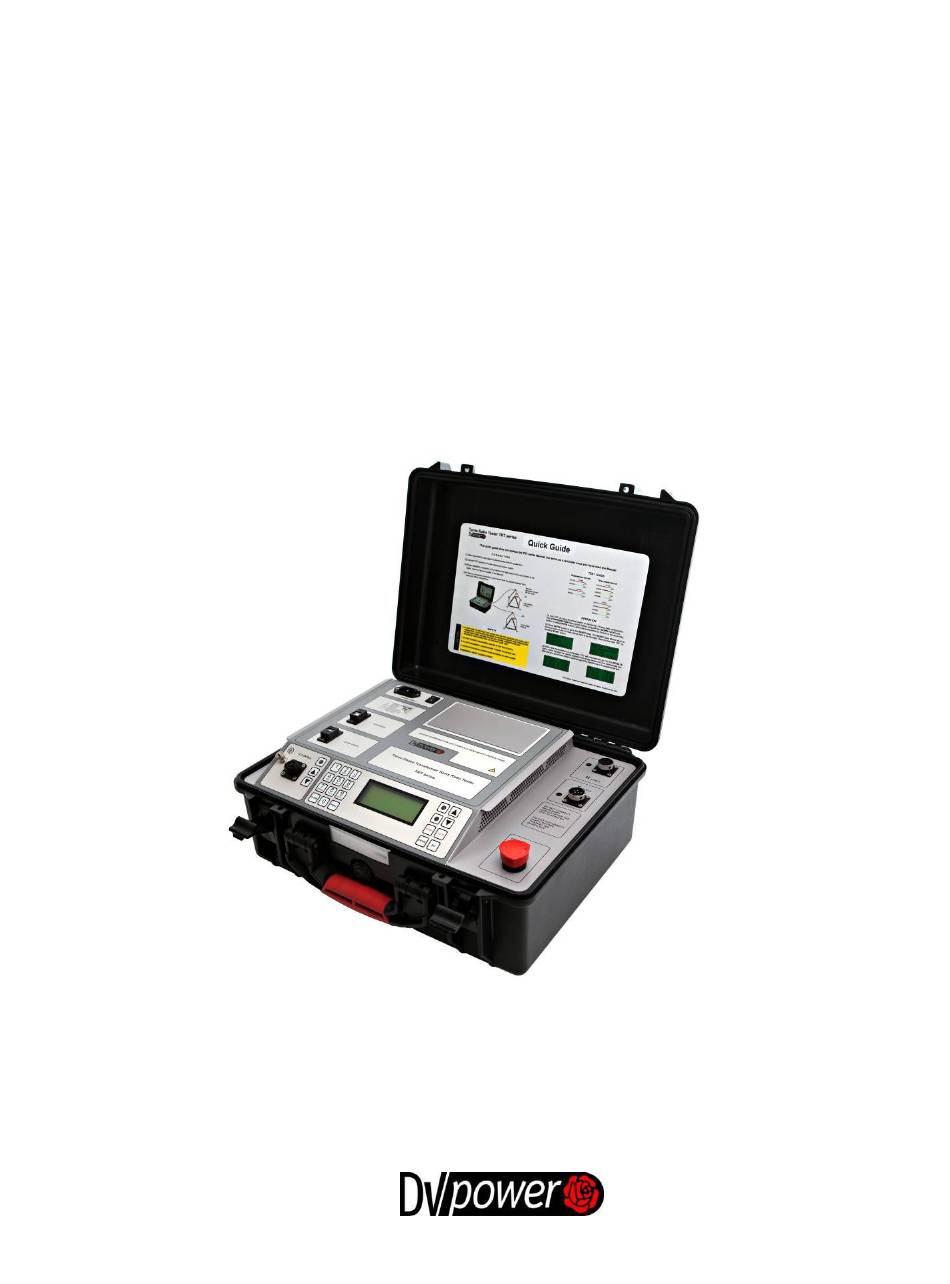

- Page 1 TRT3x THREE-PHASE TRANSFORMER TURNS-RATIO TEST INSTRUMENT Manual...
-
Page 2: Table Of Contents
TRT3x Contents Contents Introduction ............................3 1.1 Safety Instructions ..........................3 1.1.1 Safety Terms and Symbols ......................3 1.1.2 Terms of Use ..........................3 1.1.3 Orderly Practices and Procedures ..................... 4 1.1.4 Instrument Maintenance ......................4 1.1.5 Operator Qualifications ......................4 1.1.6 Safe Operating Procedures ....................... -
Page 3: Introduction
TRT3x Introduction 1 Introduction The purpose of this Manual is to provide helpful instructions on how to use TRT3x instrument safely, properly and efficiently. The following instructions will help the user avoid unsafe situations, reduce maintenance costs and will ensure the reliability and durability of TRT3x instrument. TRT3x must be used in accordance with all existing safety requirements and regulations based on national/local standards for accident prevention and environmental protection. -
Page 4: Orderly Practices And Procedures
DV Power will also void the warranty. • If TRT3x seems to be malfunctioning, please contact the DV Power Support Team (refer to the “Manufacturer Contact Information” section) after previously checking the “Error Messages” section. • Prior to connecting TRT3x, ensure that a transformer (object) to be tested is completely de-energized and isolated from both the line and the load. -
Page 5: Power Supply
TRT3x Introduction • Never exchange connections to the HV and LV sides of the transformer. The “H” connections must always be connected to the High Voltage side of the transformer. The “X” connections must always be connected to the Low Voltage side of the transformer. Interchanging any or all of the connections may result in damage to the transformer or TRT3x and is a significant safety hazard to personnel. - Page 6 TRT3x Introduction If the test object is a three-phase transformer or a three-phase autotransformer, TRT3x can apply either three single-phase test voltages in turns or a true three-phase test voltage to the transformer primary windings. Three induced voltages at the transformer’s secondary side are measured. Please note any use of TRT3x other than the ones described in this Manual are considered improper and will void the device warranty.
-
Page 7: Description
TRT3x Description 2 Description 2.1 Front Panel Components 1. Mains Power Connector and Power Switch Mains power connector Connect TRT3x to the mains power supply with a power cord. Power switch – Double pole switch • I In this position, TRT3x is connected to the mains power supply. •... - Page 8 TRT3x Description Keyboard Used to control the device. • Use the UP/DOWN button to navigate and set the test parameters. • Use the ENTER button to confirm the defined test parameters, language, time and date. • Use the STOP button to stop a test, to acknowledge the alarm buzzer and to return to the previous menu.
-
Page 9: Getting Started
TRT3x Getting Started 3 Getting Started 3.1 Connecting TRT3x to a Test Object Before TRT3x has been connected to a test object (e.g. power transformer), the following steps have to be verified: • The test object is disconnected from its circuit in accordance with the national safety regulations and is properly grounded to the protective earth. -
Page 10: Setting The Measurement Parameters
TRT3x Getting Started 3.2 Setting the Measurement Parameters Five seconds after the first (initial) message on the display, TRT3x automatically changes the display to the CONFIGURATION menu and the green LED lights up. By pressing the user can switch between the CONFIGURATION menu and the MEMORY menu. - Page 11 TRT3x Getting Started Available options in the AUTOTRANSFORMER menu are listed in the Table 4. Table 4: Available options in the autotransformer menu Test mode Config PH Displacement Comment displayed Delta winding Phase by phase test using single-phase voltage in turns displayed Star winding or true 3-phase test using 3-...
- Page 12 TRT3x Getting Started When generating a true three-phase test voltage, TRT3x generates a true three-phase excitation test voltage to three transformer primary windings. The induced three-phase voltages across the unloaded transformer windings are measured and the transformer turns ratio is calculated. Test voltages of 1 V, 8 V, and 10 V are recommended for current transformers (CT) testing.
-
Page 13: Error Messages
TRT3x Error Messages 4 Error Messages Any operational error is indicated by a red LED and an additional audio alarm. Furthermore, the display indicates an error status message. To remove the status message on the display and return to the main menu, press STOP 4.1 Error Message “Excitation current too high”... -
Page 14: Error Message "Check Paper
TRT3x Error Messages This message is also displayed if the user tries to print the results from the device which has no built-in thermal printer installed. Figure 4-4: Error message "Error printer" 4.5 Error Message “Check paper” The message “Check paper” is displayed if the printer is out of paper. Figure 4-5: Error message "Check paper"... -
Page 15: Error Message "Connections
TRT3x Error Messages 4.9 Error Message “Connections” The “Connections” is displayed if the H or X cables are not connected properly to TRT3x. There are also green LED lights next the connectors that lights up to indicate these connectors are connected properly. Figure 4-9: Error message "Connections"... -
Page 16: Troubleshooting Guide
TRT3x Troubleshooting Guide 5 Troubleshooting Guide In case the operator experiences problems with wrong results while measuring a three-phase transformer, a recommendation is to perform the steps listed below: Check that all connections to the transformer side are properly done. If everything is OK and still have wrong results, continue with the next 3 steps. -
Page 17: Customer Service
TRT3x Customer Service & Packing the Instrument for Shipment 6 Customer Service Before calling or sending an e-mail to the DV Power Customer Service for assistance, please perform the following steps: Check all cable connections. If possible, try testing on another instrument of the same type ... -
Page 18: Technical Data
TRT3x Technical Data 8 Technical Data 8.1 Mains Power Supply - Connection: According to IEC/EN60320-1; UL498, CSA 22.2 90 – 264 V AC, or 110 – 350 V DC - Voltage: 50 – 60 Hz - Frequency: - Input power: 200 VA - Fuse: 2 A / 250 V, type F, but not user replaceable... -
Page 19: Environmental Conditions
TRT3x Technical Data 8.4 Environmental conditions -10 °C – +55 °C / +14 °F – +131 °F - Operating temperature -40 °C – +70 °C / -40 °F – +158 °F - Storage temperature - Maximum relative humidity 95% non-condensing 8.5 Dimensions and Weight - Dimensions (W x H x D) 480 x 197 x 395 mm / 18.9 x 7.75 x 15.55 in... -
Page 20: Accessories
TRT3x Accessories 9 Accessories Article No Included DV-Win PC software including USB cable Built-in Tap Changer Control Unit Tap Changer Control cable 5 m Mains power cable Ground (PE) cable Article No Recommended H winding test cable 5 m, three-phase connection, with TTA clamps HC-05-03MCWC H winding test cable extension, 5 m, shielded HE-05-03MCWC... -
Page 21: Manufacturer Contact Information
TRT3x Manufacturer Contact Information IBEKO Power AB 2014 This Manual is a publication of IBEKO Power AB, 181 50 Lidingö, Sweden. These documents are protected by Swedish Copyright law and international contracts as intellectual property of the IBEKO Power AB. The documents contain confidential information of IBEKO Power AB which is protected by patent, copyright, trademarks or otherwise as inventions, trademarks or creations of IBEKO Power AB.
