  • Page 1 RZ-24-05 Central You can find the current version of our manual on our website under «Downloads»: https://en.dictator.de/products/hold-open-systems-fire-protection-doors/central-unit-rz-24/ © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513 Page 07.021.01...

  • Page 2: Table Of Contents

    7. Functioning and Adjusting Instructions for the RZ-24-05 Central 07.021.11 a) Functions of the RZ-24-05 b) Faults 07.021.12 © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Page 07.021.02 Page 07.021.2 Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513...

  • Page 3: General Safety Instructions

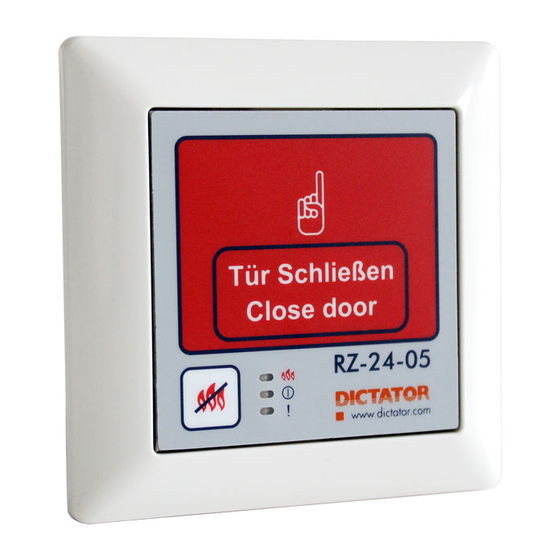

    RZ-24-05 Central 1. General Safety Instructions General Safety The RZ-24-05 central is a power supply with integrated tripping device for hold-open systems on fire and smoke protection doors. Instructions Only trained professionals may effect the installation; e.g. only a qualified electrical technician may connect the power supply to the mains.

  • Page 4: General Regulations For Hold-Open Systems

    040860SET or 040861SET - Resistor 3.9 kΩ (included in the delivery of the RZ-24-05) - Magnet (DICTATOR electromagnets EM GD 50 to EM GD 70 - see separate catalogue pages) - Push button of the RZ-24-05 central, further push button switches can be connected in the detector loop, e.g.

  • Page 5: Information About The Rz-24-05 Central

    3 s waiting period after pressing the "Close door" button has expired. © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513 Page 07.021.05...
  • Page 6 IP rating IP 30 IMPORTANT: In total the RZ-24-05 central provides 0.5 A for the supply of the connected fire detectors, magnets etc. In case the maximum power consumption is exceeded, the RZ-24-05 will automatically switch off. This also happens when it is overheated! ©...

  • Page 7: Hold-Open-System With

    (24 VDC, in total RM/WM 4000 max. 240 mA) RM/WM 4000 RM/WM 4000 Ill. 2 © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513 Page 07.021.07 Page 07.021.7...
  • Page 8 (+) Ground (0 V) input central closing or external External input reset (+) © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Page 07.021.08 Page 07.021.8 Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513...
  • Page 9 12 or 14. Control unit rear side DIP switches for the operating modes Ill. 3 © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513 Page 07.021.09 Page 07.021.9...

  • Page 10: D) Assembly Of The

    (2) on the housing cover. Now the system is ready for ope- ration. Ill. 5 © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Page 07.021.10 Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513...
  • Page 11 1 x yellow flashing, pause 1 s, 2 x yellow flashing, pause 1 s, 1 x yellow flashing, pause 1 s and so on. © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513...
  • Page 12 Check the cable path from the terminal work board to the warning signal device. Replace the terminal board. Protronic Z-6.510-2435 © DICTATOR Technik GmbH • Gutenbergstr. 9 • 86356 Neusäß • Germany Page 07.021.12 Tel. +49(0)821-24673-0 • Fax +49(0)821-24673-90 • E-mail info@dictator.de • 20200513...
