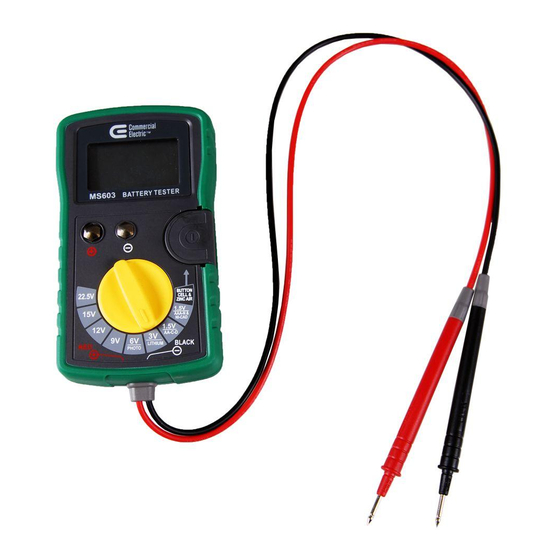

Item #826 410
Model #MS603

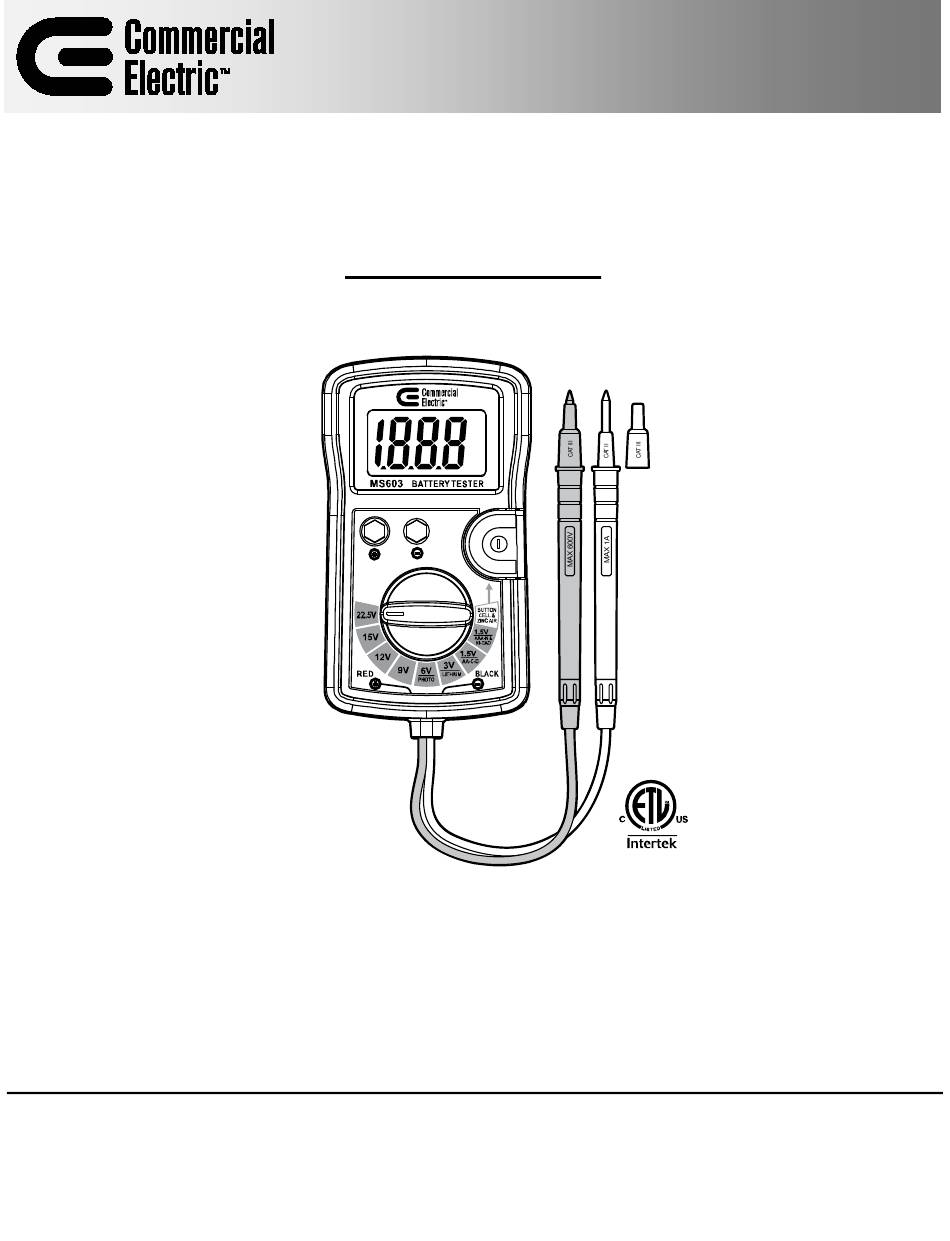

USE AND CARE GUIDE
BATTERY TESTER
V
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this battery tester. We strive to continually
create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Related Manuals for Commercial Electric MS603
Summary of Contents for Commercial Electric MS603
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this battery tester. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Operation ............... 4 Safety Information ............2 Care and Cleaning ............5 Safety Symbols ................2 Warranty ................. 2 Pre-Operation ..............3 Product Description ..............3 Product Specifications .............3 Minimum Voltage Specifications ..........4 Safety Information SAFETY SYMBOLS Please read this manual carefully and pay attention to related safe working standards before using this tester. -
Page 3: Pre-Operation
Pre-Operation PRODUCT DESCRIPTION Part Description Quantity LCD display Positive contact point Negative contact point Battery selector Black test lead Red test lead Push button PRODUCT SPECIFICATIONS Component Specification Altitude Up to 2000 meters Operating environment 0°C - 40°C (32°F - 104°F), 80% relative humidity Storage temperature 14°... -
Page 4: Minimum Voltage Specifications
Pre-Operation (continued) MINIMUM VOLTAGE SPECIFICATIONS Battery Type Load Current Minimum Voltage for Good Indication Button cell 1.5 V 1.125V+/-0.09 V AAA-N-1.5 V 50mA 1.125V+/-0.09 V AA-C-D-1.5V 150mA 1.125V+/-0.09 V Lithium 3V 2.25V+/-0.18V 10mA 4.50V+/-0.36V 10mA 6.75V+/-0.54V 10mA 9.00V+/-0.72V 10mA 11.25V+/-0.90V 22.5V 10mA 16.875V+/-1.35V... -
Page 5: Care And Cleaning
Operation (continued) Alternate testing methods Depending on the battery type, it may be easier to use the positive and negative contact points (B and C) on the tester instead of touching both test leads to the positive and negative terminals on a battery. - Page 6 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
