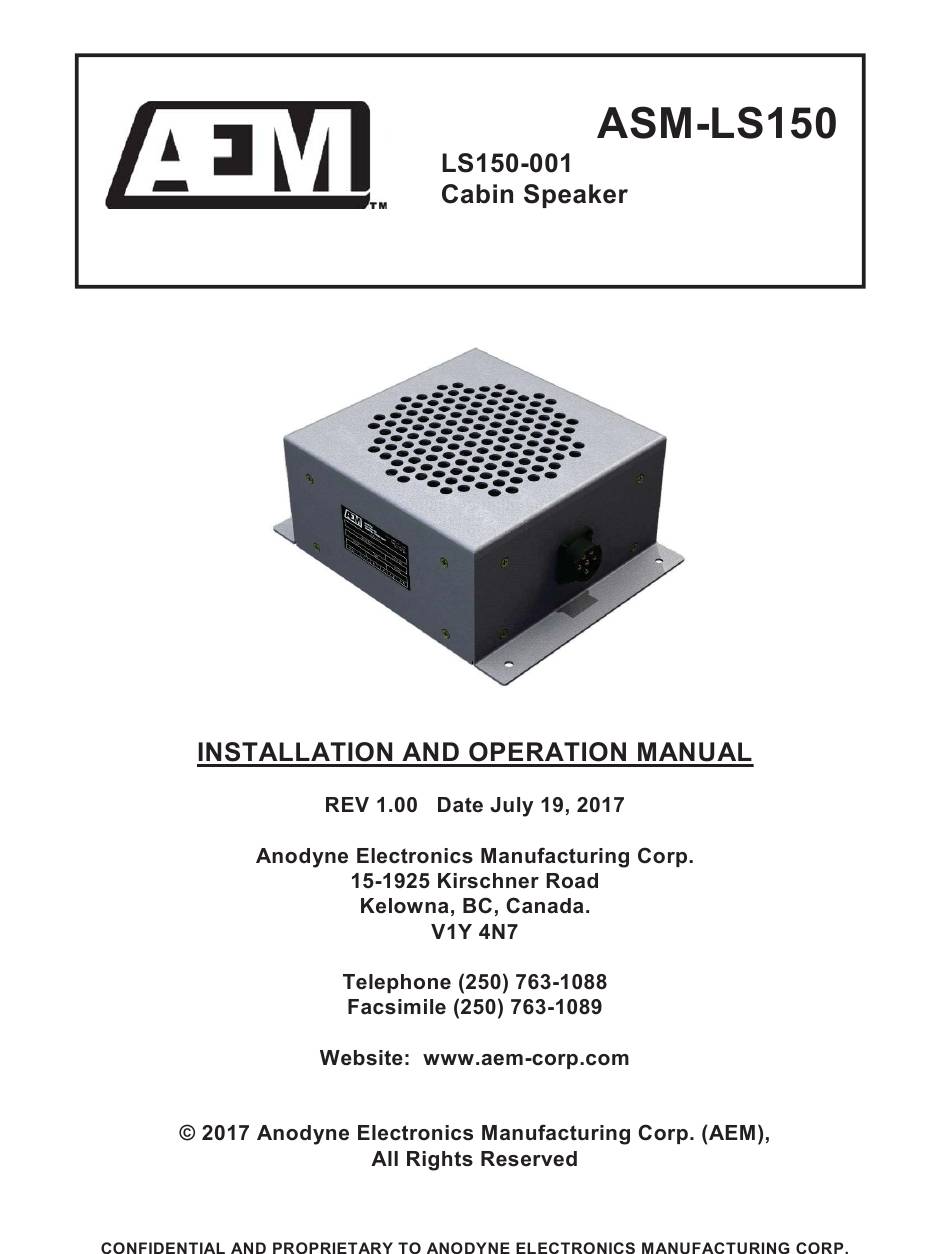

AEM ASM-LS150 Installation And Operation Manual

Cabin speaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASM-LS150 and is the answer not in the manual?

Questions and answers

Related Manuals for AEM ASM-LS150

Summary of Contents for AEM ASM-LS150

  • Page 3 Tom Betzelt Todd Blackstock Product Support R&D Manager Manager Jul 24/17 July 24, 2017...

  • Page 5: Section 1.0 Description

    Information in this section consists of product description, design features and specifications for the LS150- 001 Cabin Speaker. All derivative product information will be contained in the applicable manual supplement, which may be obtained from AEM as required. Review all notes, warnings and cautions.
  • Page 6 LS150-001 Cabin Speaker Installation and Operation Manual Specifications 1.4.1 Electrical Specifications The LS150 is designed to meet the following performance requirements: Impedance 6 Ohms Maximum Power input 150 Wrms Maximum Sound Pressure 117 ±3 dB SPL at 1 kHz: 1m from speaker, 30 Vrms (150W) input signal Frequency Response ≤...

  • Page 7: Product Approval/Certification

    LS150-001 Cabin Speaker Installation and Operation Manual 1.4.4 Product Approval/Certification No product approval/certification sought. Product Limitations The LS150-001 is intended for voice applications only. End of Section 1.0 July 19, 2017 Rev: 1.00 Page 1-3 ENG-FORM: 800-0100.DOTX CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.

  • Page 8: Section 2.0 Installation

    Verify that all items are present before proceeding and report any shortage immediately to your supplier. 2.2.1 Warranty All Anodyne Electronics Manufacturing Corp. (AEM) products are warranted for 2 years. See the website www.aem-corp.com/warranty for complete details. Installation Procedures 2.3.1...

  • Page 9: Accessories Required But Not Supplied

    The LS150-001 does not currently have a specific installation kit. Continued Airworthiness If periodic maintenance is required for a AEM product a description of how airworthiness shall be maintained is required. Normal circumstances dictate that most AEM products do not require periodic maintenance such that the following example shall normally apply.

  • Page 10: Installation Drawings

    Installation and Operation Manual Installation Drawings Use of the "#" symbol in the REV. column indicates that the document is listed elsewhere in the manual. Refer to the applicable AEM Part No. to locate the referenced document. DOCUMENT REV DESCRIPTION TYPE SERIAL NO.
  • Page 11 UNLESS OTHERWISE SPECIFIED: NAME DATE ANODYNE KELOWNA BC CANADA DIMENSIONS ARE IN INCHES [MM] ELECTRONICS 11-Jul-17 (250)-763-1088 DRAWN TOLERANCES: WWW.AEM-CORP.COM MANUFACTURING CORP. FRACTIONAL_____________ ±0.0625" CHECKED ANGULAR_______________ ±0.5° TITLE: TWO DECIMAL PLACE____ ±0.010" CABIN SPEAKER, 150W APPROVED THREE DECIMAL PLACE___ ±0.005"...
  • Page 12 UNLESS OTHERWISE SPECIFIED: NAME DATE ANODYNE KELOWNA BC CANADA DIMENSIONS ARE IN INCHES [MM] ELECTRONICS 13-May-16 (250)-763-1088 DRAWN TOLERANCES: MANUFACTURING CORP. WWW.AEM-CORP.COM FRACTIONAL_____________ ±0.0625" CHECKED ANGULAR_______________ ±0.5° TITLE: TWO DECIMAL PLACE____ ±0.010" CABIN SPEAKER, 150W APPROVED THREE DECIMAL PLACE___ ±0.005"...
  • Page 13 UNLESS OTHERWISE SPECIFIED: NAME DATE ANODYNE KELOWNA BC CANADA DIMENSIONS ARE IN INCHES [MM] ELECTRONICS 19-Jul-17 (250)-763-1088 DRAWN TOLERANCES: WWW.AEM-CORP.COM MANUFACTURING CORP. FRACTIONAL_____________ ±0.0625" CHECKED ANGULAR_______________ ±0.5° TITLE: TWO DECIMAL PLACE____ ±0.010" CABIN SPEAKER, 150W APPROVED THREE DECIMAL PLACE___ ±0.005"...
  • Page 15 PRIMER: MIL-PRF-23377, REV K, TYPE l, CLASS C2. COLOR: 36231 GREY PER FED-STD-595 WITH CLEAR TOPCOAT. 1.10 MASKED AREA FREE OF PRIMER, PAINT, AND CLEAR COAT. SPEAKER DRIVER: AEM P/N 182-03-002. MISCO SPEAKERS P/N NR6C-6X. CONNECTOR: AEM P/N 120-31-003. AMPHENOL P/N JTP02RE-16-6P (014).

  • Page 16: Section 3.0 Operation

    LS150-001 Cabin Speaker Installation and Operation Manual Section 3.0 Operation Introduction The LS150-001 Cabin Speaker has no normal user operational aspects. End of Section 3.0 July 19, 2017 Rev: 1.00 Page 3-1 ENG-FORM: 806-0100.DOTX CONFIDENTIAL AND PROPRIETARY TO ANODYNE ELECTRONICS MANUFACTURING CORP.
