4.

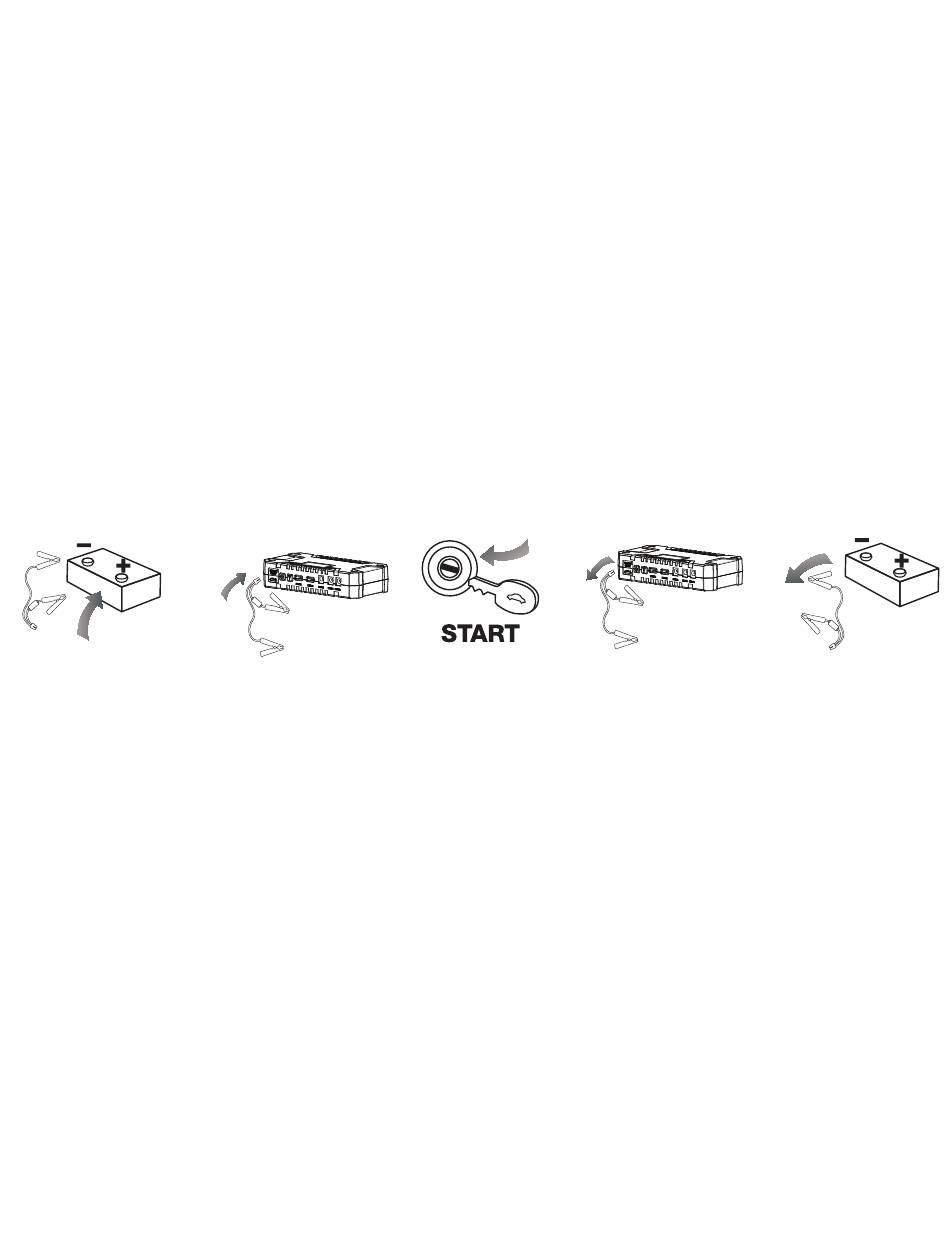

Connect the EC5 plug of smart jump clamp to the ENGINE
START socket of TECH-5000P Power BANK. Wait a few seconds,
the green LED light on smart jump clamp should be lit. If not, please
refer to "BOOST" OPERATION section.
5.
Try starting the vehicle (turn on the ignition switch). Most vehicles
will immediately start. Stop if the vehicle does not start after
5 seconds of engine cranking. The jumpstart feature is designed
for short term operation only, and more than 5 seconds may cause
damage to the unit. Allow the jump starter to cool down for at least 3
minutes after each jumpstarting.
6.
Disconnect the smart jump clamp from the TECH-5000P Power
Bank immediately after engine starts, and then remove from battery
terminals.
"BOOST"OPERATIONS:
1.
Under normal circumstance, the green LED light should be
turned on automatically. If not, please do the following: with
correct connection between Jump Starter and vehicle battery
(Red LED keeps on and green LED is off), press and hold
BOOST button for 3 seconds (after a buzzer sound, the green
LED is on and red LED is off). Usually this is because the
vehicle battery capacity is low.
2.
Start the engine (same method as the normal operations in
Page 9).
TECH-5000P
USER'S MANUAL PAGE 9
Hide quick links:
Advertisement
Table of Contents
Need help?
Do you have a question about the TECH-5000P and is the answer not in the manual?
Questions and answers
replacement air hose
My Tech-5000P Air Pump has worked perfectly for several years. I use it every camping season, all summer. Changed tires in my golf cart and thought it needed some air. Plugged into the power bank and it worked for 10 seconds and cut off. Tried several times. Power bank stays on but Air Pump cuts off immediately when I pull the trigger.
The issue could be due to a faulty or weak battery that can no longer provide sufficient power for the air pump. Over time, rechargeable batteries degrade, reducing their ability to hold a charge. Try fully charging the unit and testing again. If the problem persists, the battery may need replacement. Additionally, ensure all connections are secure and free of obstructions to prevent power interruptions.
This answer is automatically generated
how to recharge my smart tech
To recharge the Smartech TECH-5000P, connect it to a charger in a well-ventilated area. Avoid charging in rain, snow, or damp environments. Fully charge it immediately after purchase, and recharge after each jumpstart or every 3 months to maintain battery life.
This answer is automatically generated
My air hose just broke. nobody offers a replacement. Very frustrated that $200.00 worth of toy charger and air pump is useless now.
how can i get a replacement pressure hose
