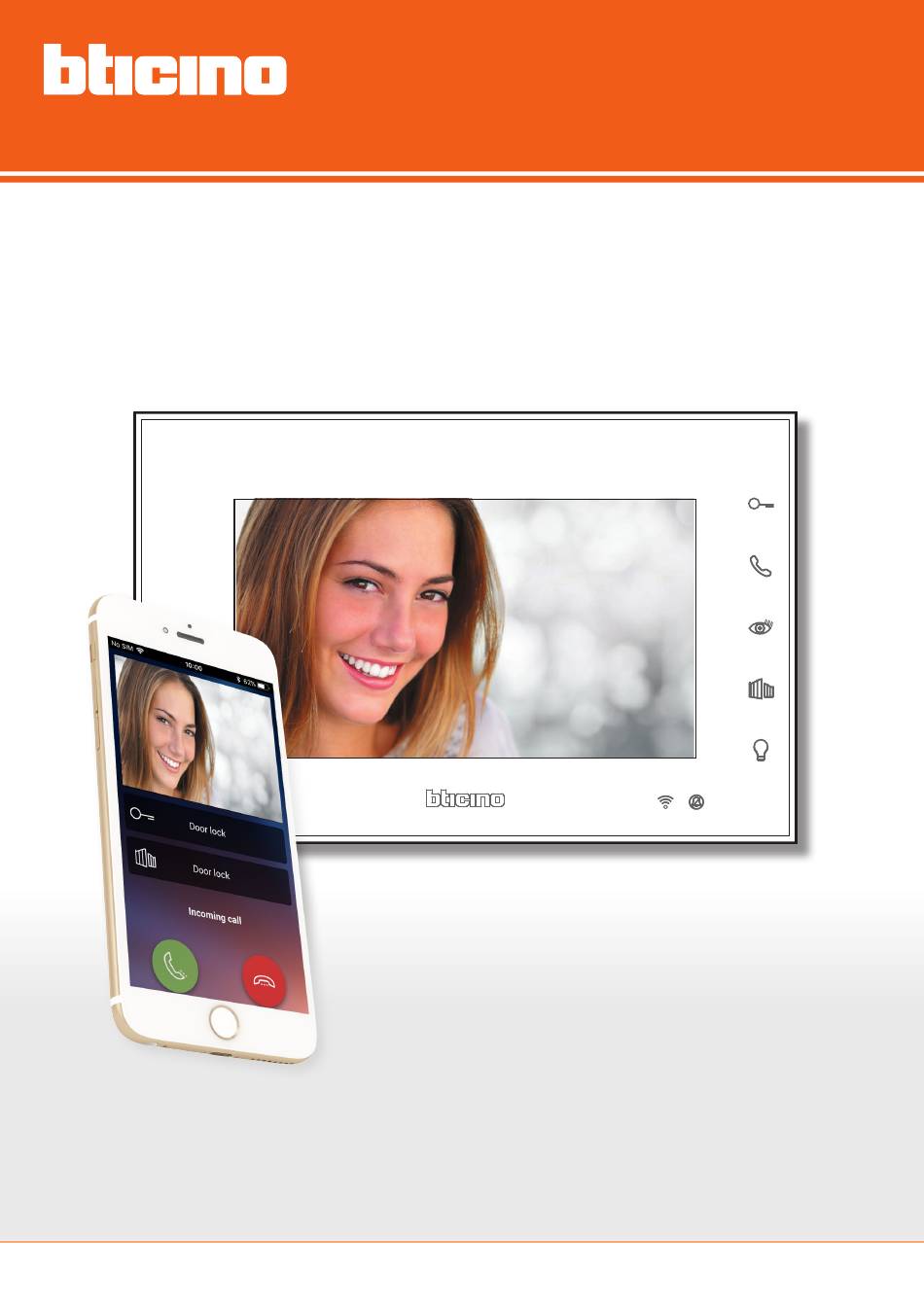

  • Page 1 Connected Indoor Unit 332851 - 332852 - 332855 User and installation manual www.bticino.com...
  • Page 2 Connected Indoor Unit User and installation manual...
  • Page 3: Table Of Contents

    Connected Indoor Unit User and installation manual Contents Quick guide Answer a call Auto-switching on and camera scrolling Call another room or apartment (intercom) Dissociate a smartphone Dissociate an user Customise the home page of the Door Entry Easy Kit General information Warnings and recommendations Regulatory warnings...
  • Page 4: Quick Guide

    Connected Indoor Unit User and installation manual Quick guide Answer a call 1. Touch to answer the call. 2. If necessary, during the call press the joystick to display the audio/video parameter adjustment icons. 3. Move the joystick up/down to select the type of parameter for which you want to modify the value (see the following table) among: –...
  • Page 5 Connected Indoor Unit User and installation manual 4. Touch to open the main Entrance Panel door lock. 5. Touch to open the Gate lock...
  • Page 6 Connected Indoor Unit User and installation manual 6. Touch to end the call.
  • Page 7: Auto-Switching On And Camera Scrolling

    Connected Indoor Unit User and installation manual Auto-switching on and camera scrolling 1. Touch to display the Entrance Panels or the cameras in your system. 2. If necessary, touch to activate the audio communication. 3. Touch to display another Entrance Panel or camera (using the scrolling service). When switching from one camera to the next the key lights up.
  • Page 8 Connected Indoor Unit User and installation manual 4. Touch to display another Entrance Panel or camera (using the scrolling service). When switching from one camera to the next the key (B) lights up. The (A) key flashes green; touch to enable communication. Note: switching from one camera to another is also possible without enabling the audio.
  • Page 9: Call Another Room Or Apartment (Intercom)

    Connected Indoor Unit User and installation manual Call another room or apartment (intercom) 1. Touch to activate the communication with the Internal Unit Key (A) lights up to indicate that the call is active.
  • Page 10 Connected Indoor Unit User and installation manual 2. When the other Internal Unit answers, the key starts to flash; start the communication or touch the handset to close the call. Note: if during the conversation a call is received from the Entrance Panel, the conversation is interrupted in order to answer the Entrance Panel call.
  • Page 11: Dissociate A Smartphone

    Connected Indoor Unit User and installation manual Dissociate a smartphone 1. Touch to open the pull-down menu. 2. Touch to open the user section. 3. Scroll to dissociate a smartphone. 4. Touch to continue. 5. Touch to confirm. The user will no longer be able to manage the system using that smartphone. To re-associate the smartphone simply repeat the authentication process.
  • Page 12: Dissociate An User

    Connected Indoor Unit User and installation manual Dissociate an user 1. Touch to open the pull-down menu. 2. Touch to open the user section. 3. Scroll to dissociate a user, and therefore all the devices associated with the same. 4. Touch to continue. 5.
  • Page 13 Connected Indoor Unit User and installation manual If the user is the main user, it will be necessary to indicate a replacement as main user. 6. Touch to indicate the new main user. 7. Touch to confirm. You will be redirected to the Home page. The main user has been dissociated.
  • Page 14: Customise The Home Page Of The Door Entry Easy Kit

    Connected Indoor Unit User and installation manual Customise the home page of the Door Entry Easy Kit 1. Touch to open the pull-down menu. 2. Touch to open the setting section. 3. Touch to customise the Home page. 4. Touch to modify the description of the main EP door lock. 5.
  • Page 15 Connected Indoor Unit User and installation manual 7. Touch to confirm the modifications. 8. Touch to return to the home page. 9. Now the staircase light key is available. In addition to the staircase light key, the gate lock key can also be displayed in the Home Page. The Cameras/Entrance Panels will be available in the appropriate area (A), while for the door locks and staircase lights there is a dedicated key (B).
  • Page 16: General Information

    We would like to inform you that the service provided by BTicino by means of remote use via the app involves the use of data. The cost linked to data usage depends on the type of contract which the...
  • Page 17: Regulatory Warnings

    Connected Indoor Unit User and installation manual Regulatory warnings Read carefully before use and keep for future reference Touching the units with wet hands is forbidden Using liquid cleaners or aerosols is forbidden Blocking the ventilation openings is forbidden Modifying the devices is forbidden Removing protective parts from the devices is forbidden Installing the units near liquids and powders is forbidden Installing the units near heat sources is forbidden...
  • Page 18: Front View

    Connected Indoor Unit User and installation manual Front view 1. 5” (16:9) display 3. Joystick for adjustments and programming 2. Function keys Wireless device in compliance with 802.11 b/g/n standard, frequency 2.4 – 2.4835 GHz. Transmission power < 20 dBm. Safety protocol: WEP/WPA/WPA2 Notes When idle, the door opening, gate opening and light control will act on the main Entrance Panel (MD).
  • Page 19: Function Keys And Status Leds

    Connected Indoor Unit User and installation manual Function keys and status LEDs Icon Meaning Wi-Fi signal notification LED When it is OFF, the Wi-Fi is disabled or works correctly. When it flashes red it indicates that the Wi-Fi is active but not connected to a network.
  • Page 20: Rear View

    Connected Indoor Unit User and installation manual Rear view 1. Microphone 5. Master / Slave micro switch 2. Mini USB socket for device Firmware update 6. R1 - R2 removable connection clamps for connection of the additional internal unit 3. D1 - D2 removable connection clamps for connection of the entrance panel or previous 7.
  • Page 21: Installation

    Connected Indoor Unit User and installation manual Installation Caution: Installation, configuration, starting-up and maintenance must be performed exclusively by qualified personnel. Dimensional data and recommended installation heights Recommended height, unless different regulations are specified. 215 mm 22,3 mm Installation...
  • Page 22 Connected Indoor Unit User and installation manual...
  • Page 23: Use From The Device

    Connected Indoor Unit User and installation manual Use from the device Note: the background and icons shown may differ from those on the device. Functions Door lock release PE or cameras direct auto-switching on Doore lock gate PE direct auto-switching on Intercom Light switching on Answer a call...
  • Page 24: Call Another Room Or Apartment (Intercom)

    Connected Indoor Unit User and installation manual Call another room or apartment (intercom) This section can be used to communicate with other video/audio Internal Units installed in your home, or in other apartments. Intercom is always possible with the own family: - for single-family homes, call others within the same the home.
  • Page 25 Connected Indoor Unit User and installation manual 2. When the Internal Unit answers, the key starts to flash; communicate with the Internal Unit, or touch to close the call. Note: if during the conversation a call is received from the Entrance Panel, the conversation is interrupted in order to answer the Entrance Panel call.
  • Page 26: Pe Or Cameras Direct Auto-Switching On

    Connected Indoor Unit User and installation manual PE or cameras direct auto-switching on Using the automatic switch on key it is possible to display the main Entrance Panel camera and, if installed, scroll through other cameras/Entrance Panels. 1. Touch to display the Entrance Panels or the cameras in your system. 2.
  • Page 27 Connected Indoor Unit User and installation manual 3. Touch to display another Entrance Panel or camera (using the scrolling service). When switching from one camera to the next the key (B) lights up. The (A) key flashes green; touch to enable communication. Note: switching from one camera to another is also possible without enabling the audio.
  • Page 28: Door Lock Release

    Connected Indoor Unit User and installation manual Door lock release It is possible to open the main Entrance Panel door lock, using the door lock key. The gate lock key can be used to directly open a specific lock. 1. Touch to open the main Entrance Panel door lock. 2.
  • Page 29: Light Switching On

    Connected Indoor Unit User and installation manual Light switching on The light key can be used to switch the entrance light on. 1. Touch to switch the light on.
  • Page 30: Device Adjustments And Settings

    Connected Indoor Unit User and installation manual Device adjustments and settings Using the joystick it is possible to perform adjustments (Adjustments and/or Parameter Adjustment menu during Audio/Video connection) and settings (Settings menu). Use of the joystick You must use the joystick on the side of the device to navigate on the menu and select the settings.
  • Page 31: Wi-Fi Adjustments And Settings

    Connected Indoor Unit User and installation manual Wi-Fi adjustments and settings Wi-Fi adjustments and settings menu From stand-by press the joystick to activate the display Move the joystick up/down to select the page among: Door Entry You can download the Door EASY KIT Entry EASY KIT App from the Stores.
  • Page 32 Connected Indoor Unit User and installation manual Device info. EXIT Exit the menu.
  • Page 33 Connected Indoor Unit User and installation manual Ringtone volume adjustment From stand-by press the joystick to activate the display and select the corresponding page. Press the joystick to adjust the volume. The ringtone is played at the set volume level. Move the joystick up/ down to select the volume level (1 –...
  • Page 34 Connected Indoor Unit User and installation manual WI-FI settings From stand-by press the joystick to activate the display and select the corresponding page. Press the joystick to select the page of interest. Enable/disable the Wi-Fi Networki Move the joystick up/down to select the page among.
  • Page 35 Connected Indoor Unit User and installation manual EXIT Exit the menu. Enable/disable the Wi-Fi Network In this page you can display the network to which the Connected Indoor Unit is connected and, if necessary, disable the connection. A Wi-Fi network name to which the device is connected;...
  • Page 36 Connected Indoor Unit User and installation manual Reset the Wi-Fi network In this section it is possible to change the Wi-Fi network to which the device is connected, or the network password. 1. Press the joystick to reset the Wi-Fi network. RESET 2.
  • Page 37 Connected Indoor Unit User and installation manual Device reset This page can be used to reset the device. 1. Press the joystick to reset the device. RESET 2. Move the joystick down to select the confirmation icon. 3. Press the joystick to confirm.
  • Page 38 Connected Indoor Unit User and installation manual Device info From stand-by press the joystick to activate the display and select the corresponding page. 1. Press the joystick to display the information. A Wi-Fi network name to which the Connected Indoor Unit is connected. Wi-Fi: Home Wi-Fi B Network parameters.
  • Page 39 Connected Indoor Unit User and installation manual Audio/video parameter adjustments During a connection to an Internal Unit, Entrance Panel or when using the Call home function with Door Entry EASY KIT app, it is possible to modify the speaker volume and, in case of video connection, the colour, contrast and brightness of the image.
  • Page 40 Connected Indoor Unit User and installation manual Press the joystick to modify the level. Move the joystick up/ down to select the desired level. Press the joystick to confirm or wait for the timeout. Move the joystick up/ down to select another parameter or the last page to exit.
  • Page 41: Settings

    Connected Indoor Unit User and installation manual Settings Settings menu From stand-by, press and hold down the joystick for about 5 seconds to activate the display and access the > 5 sec Settings menu. Move the joystick up/down to select the page among: Enable/disable the key sound Associate a ringtone to an...
  • Page 42 Connected Indoor Unit User and installation manual Enable/disable the key sound This function enables/disables the BEEP when the keys are pressed. The function is disabled by default, to enable it follow the procedure below: From stand-by, press and hold down the joystick for 5 seconds pto access the advanced menu and select the corresponding page.
  • Page 43 Connected Indoor Unit User and installation manual ICON TYPE OF CALL Selection of the call ringtone from the ENTRANCE PANEL INTERCOM CALL ringtone selection Press the joystick to continue. Move the joystick up/ down to select the ringtone to be associated (the ringtone is played).
  • Page 44: Use With The Door Entry Easy Kit App

    Connected Indoor Unit User and installation manual Use with the Door Entry EASY KIT APP Introduction You can interact with your Connected Indoor Unit using the free Door Entry EASY KIT app.. After registering and authenticating, you must make the association with the device; at this point you can: –...
  • Page 45: Account Registration

    You must first register to be able to use the Door Entry EASY KIT app and thus use the interface functions with your Connected Indoor Unit. After opening the app follow the registration instructions: When the account has been created it will be common to all the connected Legrand/BTicino device app. Help A Access the section.
  • Page 46 Connected Indoor Unit User and installation manual 6. Enter a password and fill the fields with your details. 7. Tick to accept the terms and conditions of use laid down in the associated text (obligatory). 8. Touch to continue.
  • Page 47: Authentication

    Connected Indoor Unit User and installation manual Authentication After registering with the portal, you can authenticate by entering email and password. A Access the Help section Touch to start the password recovery procedure C Touch to create a new account 1.
  • Page 48: Forgotten Password

    E-mail address verification code of the Legrand account Today 04:15 pm Address verification code Thank you for verifying your J.Smith@bticino.com account The code is: 196466 Best regards, Legrand This message was sent from an e-mail address that is not checked.
  • Page 49: Help

    Connected Indoor Unit User and installation manual 6. Enter the new password. For security reasons enter a new password with these features: – minimum length 8 characters; – must contain at least one letter and one number; – it must be different from the last 5 passwords used. 7.
  • Page 50: Faq

    Connected Indoor Unit User and installation manual In this section it is possible to display FAQ (and their answers) regarding the use of the Door entry EASY KIT App. 1. Touch to enter the FAQ section. 2. Select the topic on which you require clarifications. Sending log In this section you can send a notification about a problem you have found.
  • Page 51: Association Of The Device

    Connected Indoor Unit User and installation manual Association of the device After registering and authenticating for the first time (the first smartphone) you will be shown a tutorial. Follow this to associate your account to the Connected Indoor Unit. This operation is only necessary on the first access and allows you to connect the Connected Indoor Unit to your home Wi-Fi network and activate the connection between the two devices.
  • Page 52 Connected Indoor Unit User and installation manual 5. From stand-by press the joystick to activate the display. 6. Touch to continue.
  • Page 53 Connected Indoor Unit User and installation manual This screen is displayed to indicate that your Connected Indoor Unit has never been associated. The screen will disappear once the procedure has been completed successfully. Door Entry EASY KIT 7. Move the joystick down to select the Wi-Fi settings page. 8.
  • Page 54 Connected Indoor Unit User and installation manual 9. Touch to activate the temporary Wi-Fi network created by your Connected Indoor Unit. This screen appears, followed by a QR Code. SOFT_AP...
  • Page 55 Connected Indoor Unit User and installation manual 10. Touch to continue. 11. Using the smartphone, scan the QR Code.
  • Page 56 Connected Indoor Unit User and installation manual 12. Touch to access your smartphone settings 13. Touch to access the Wi-Fi network settings Wi-Fi Wi-Fi Wi-Fi Home BTICINO_cc9bdf BTICINO_cc9bdf Wi-Fi Home Wi-Fi 02 Wi-Fi 02 Wi-Fi 03 Wi-Fi 03 Wi-Fi 04 Wi-Fi 04 Wi-Fi 05 Wi-Fi 05...
  • Page 57 Connected Indoor Unit User and installation manual Wi-Fi Home Home1234% Wi-Fi 02 Wi-Fi 03 Wi-Fi 04 Wi-Fi Home Wi-Fi 05 Wi-Fi 06 16. Now select the home Wi-Fi network to which the Connected Indoor Unit will be connected. 17. Enter the home Wi-Fi network password. 18.
  • Page 58 Connected Indoor Unit User and installation manual The completion of the association is confirmed by the confirmation screen. Connected Indoor Unit s now connected to the home Wi-Fi network. Wi-Fi Home 20. Touch to continue. Note: the disconnection of Connected Indoor Unit from the Wi-Fi network, or the reset of the Wi-Fi network to change the password, are possible using the specific menu Wi-Fi-settings.
  • Page 59: Home Page

    Connected Indoor Unit User and installation manual 21. Touch to continue. 22. Tocca per personalizzare subito l’Home page (vedi Home page customisation). 23. Touch to delay it to a later date. You will be directed to the Home page.
  • Page 60 Connected Indoor Unit User and installation manual Home page The Home Page of the Door entry Connected Indoor Unit App can be customised based on personal needs. After being authenticated, from this page you can interact with your Connected Indoor Unit and with the video door entry system.
  • Page 61: Display The Cameras Or Entrance Panels

    Connected Indoor Unit User and installation manual Display the cameras or Entrance Panels By means of this function you can display the cameras and Entrance Panels configured by your installer. A Name of camera or Entrance Panel. Scroll the cameras or Entrance Panels. C Display the camera or Entrance Panel.
  • Page 62 Connected Indoor Unit User and installation manual Telecamera Telecamera 3. Touch to make the management keys appear. A Call quality indicator: indicates if the conditions are good enough (Cloud, Wi-Fi and 3G/4G connection) for the communication. Good quality Average quality Poor quality 4.
  • Page 63: Open Door Locks

    Connected Indoor Unit User and installation manual Open door locks By means of this function you can open the door locks of the Entrance Panels configured on the device by your installer. A Door lock of the associated Entrance Panel.. Gate lock 1.
  • Page 64: To Receive A Video Door Entry Call

    Connected Indoor Unit User and installation manual To receive a video door entry call Via this function you can receive the calls from the Entrance Panel. With smartphone in stand-by, following a call from the Entrance Panel: – on Android, the image taken with the call* management icons appears; –...
  • Page 65: Call Home: Call Your Connected Indoor Unit

    Connected Indoor Unit User and installation manual 4. You can also open the door lock of the Entrance Panel from which the call comes, by dragging the switch. When it becomes green the door lock has been activated. If it remains blue, the command has not been performed correctly.
  • Page 66 Connected Indoor Unit User and installation manual 2. When the Connected Indoor Unit call answers the audio communication is activated. 3. Touch to end the call.
  • Page 67: Menu

    Connected Indoor Unit User and installation manual Menu This pull-down menu can be used to manage the associated users, customise the Home Page, set the Wi-Fi connection, reset and update your Connected Indoor Unit. 1. Touch to open the pull-down menu. A Opens the Users section.
  • Page 68: Users

    Connected Indoor Unit User and installation manual Users This section can be used: – display the associated users and the devices with which you want to interact using your Connected Indoor Unit; – dissociate users or devices; – to invite other users to associate their accounts to your Connected Indoor Unit, so that they can use the connected Connected Indoor Unit functions.
  • Page 69 User and installation manual Invites a user With this procedure, you can invite other users to use the functions of your Connected Indoor Unit. J.Brown@BTicino.com J.Brown@BTicino.com 1. Touch to invite another user. 2. Enter the email of the user to associate and confirm it.
  • Page 70 Connected Indoor Unit User and installation manual Dissociate a smartphone 1. Scroll to dissociate a smartphone. 2. Touch to continue. 3. Touch to confirm The user will no longer be able to manage the system using that smartphone. authentication To re-associate the smartphone simply repeat the process.
  • Page 71 Connected Indoor Unit User and installation manual Dissociate an user 1. Scroll to dissociate a user, and therefore all the devices associated with the same. 2. Touch to continue. 3. Touch to confirm If the user is the main user, it will be necessary to indicate a replacement as main user. 4.
  • Page 72: Settings

    Connected Indoor Unit User and installation manual Settings This section can be used to update the firmware, customise the Home Page, set the Wi-Fi connection, reset and update your Connected Indoor Unit. 1. Touch to open the setting section. Update firmware the Connected Indoor Unit.
  • Page 73 Connected Indoor Unit User and installation manual Connected Indoor Unit firmware update (only if connected to the same Wi-Fi network of the Connected Indoor Unit) When a new firmware is released, you will receive a notification on your smartphone, indicating that an update is available.
  • Page 74 Connected Indoor Unit User and installation manual Customise the Home page This section can be used to rename the Entrance Panel/Camera and Entrance Panel Door Lock objects in the Home Page. It is also possible to rename and display the Staircase Lights and the Gate Lock objects. 1.
  • Page 75 Connected Indoor Unit User and installation manual Set the video internal unit Wi-Fi In this section, it is possible to set the Wi-Fi connection of your Connected Indoor Unit with the home Wi-Fi network. This procedure can be used to: –...
  • Page 76 Connected Indoor Unit User and installation manual 3. Press the joystick to access the page. Wi-Fi Home 4. Move the joystick to select the Reset page.
  • Page 77 Connected Indoor Unit User and installation manual RESET 5. Press the Joystick to reset the Wi-Fi network and connect Connected Indoor Unit to another network, or to the same network with a different password. 6. Move the joystick down to select the confirmation icon.
  • Page 78 Connected Indoor Unit User and installation manual 7. Press the joystick to confirm. The device can now be connected to the Wi-Fi network. The page will show the QR-code to create a new connection. 8. Touch to continue.
  • Page 79 Connected Indoor Unit User and installation manual 9. Frame the QR-code with your smartphone and continue the procedure as shown in Association of the device, item...
  • Page 80 Connected Indoor Unit User and installation manual Reset the video internal unit This section can be used to reset Connected Indoor Unit, at the end of the procedure: – all the accounts (association of accounts to Connected Indoor Unit,) will be deleted; –...
  • Page 81 Connected Indoor Unit User and installation manual 2. Move the joystick to select the Settings page. 3. Press the joystick to access the page.
  • Page 82 Connected Indoor Unit User and installation manual Wi-Fi Home 4. Move the joystick to select the device Reset page. RESET 5. Press the joystick to reset the Connected Indoor Unit.
  • Page 83 Connected Indoor Unit User and installation manual 6. Move the joystick down to select the confirmation icon. 7. Press the joystick to confirm.
  • Page 84 Connected Indoor Unit User and installation manual 8. Press to perform the reset. At the end of the procedure the authentication page appears. It is possible to use your Connected Indoor Unit for functions that do not require association with the Door Entry EASY KIT App.
  • Page 85 Connected Indoor Unit User and installation manual Select the App ringtone (only Android) With Android devices, the “Select ringtone App” is also available 1. Touch to select the function 2. Touch to select the desired ringtone...
  • Page 86: Account

    Connected Indoor Unit User and installation manual Account The account is common to the connected Legrand/BTicino devices APP. In this section you can display information on your account and/or cancel it. You can also modify your authentication password. 1. Touch to manage your account.
  • Page 87 Connected Indoor Unit User and installation manual Change password In this section you can modify your account password. 1. Touch to confirm Note: when changing the password, you will be disconnected and redirected to the Home Page. 2. To change the password, use the "Forgotten password", procedure;...
  • Page 88 Connected Indoor Unit User and installation manual...
  • Page 89 Connected Indoor Unit User and installation manual...
  • Page 90 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
